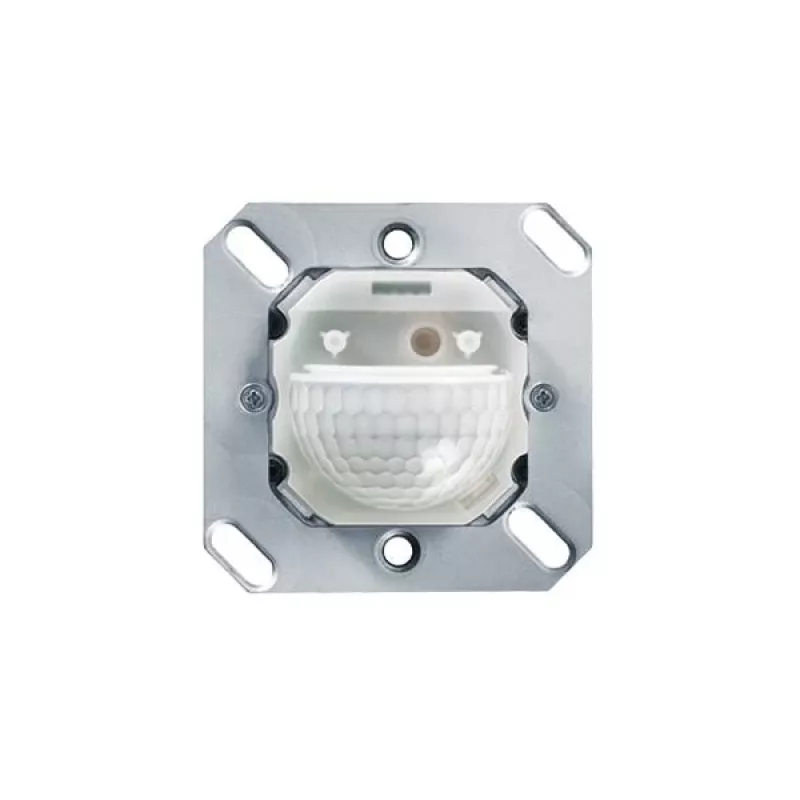

ESYLUX PD-C 180i/16 Touch KNX rilevatore di presenza a parete 180° bianco EP10460104

The ESYLUX PD-C 180i/16 Touch KNX is a high-quality wall-mounted presence detector designed for intelligent building automation. Featuring PIR technology with a 180° detection angle and a range of up to 16 m for motion and 8 m for presence, it ensures precise and reliable occupancy detection. The integrated touch surface allows for manual override, while the built-in light sensor enables constant light control. This KNX-compatible device supports scene control, HVAC control, and presence-dependent control, making it ideal for energy-efficient and comfortable building management.

Advantages

Energy savings through demand-based lighting and HVAC control; seamless integration into KNX systems; intuitive touch interface for manual adjustments; robust IP44 protection for indoor use; UV-stabilised polycarbonate housing ensures long-lasting durability.

Suitable for

• Office spaces
• Conference rooms
• Classrooms
• Corridors and stairwells
• Open-plan areas

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 180°
• Detection range (presence): Ø 8 m at 1.1 m mounting height
• Detection range (motion): Ø 16 m at 1.1 m mounting height
• Mounting type: Wall-mounted (flush-mounted)
• Recommended mounting height: 1.1 m
• Network protocol: KNX
• Integrated light sensor: 10-2000 Lux
• Protection class: IP44
• Operating temperature: -5 °C to +50 °C
• Colour: White
• Manual override: Integrated touch surface
• Key functions: Constant light control, presence-dependent control, scene control, HVAC control
• Power consumption (KNX): 0.5 W
• Housing material: UV-stabilised polycarbonate
• Number of detection zones: 1040 switching segments
• Operating voltage: KNX bus (21-32V DC)

Recommendations

For optimal performance, mount at the recommended height of 1.1 m and ensure the detection area is free from obstructions. Pair with compatible KNX actuators and sensors for a complete building automation solution.
