ETI ESC-PTP4/03/R Ponticello di collegamento trasversale, 3 poli, rosso, per morsetti modulari ESC-CBC.4 & ESC-CBC.4B 003903029

Rated up to 1000 V and 32 A, this 3-pole jumper bar bridges adjacent terminals in ETI ESC-CBC.4 and ESC-CBC.4B series, cutting wiring time and reducing errors.

Overview

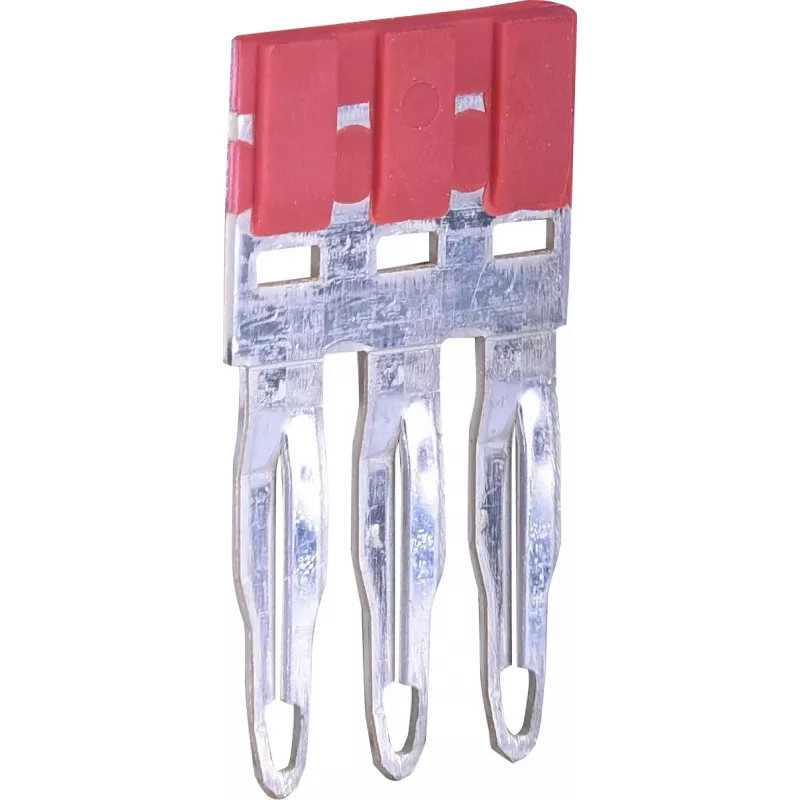

The ETI ESC-PTP4/03/R is a plug-in cross-connection jumper bar designed for quick, reliable bridging of three adjacent terminals in compatible ETI terminal blocks. Its red polyamide insulation provides clear visual identification and protection, while the copper conductor ensures excellent conductivity. With a 6 mm pitch, it matches the terminal spacing for a secure fit.

What stands out

• High current capacity: up to 32 A (depending on connected terminal block).
• High voltage rating: up to 1000 V (depending on connected terminal block).
• Plug-in mounting for tool-free installation.
• Robust construction: copper conductor with polyamide insulation.
• Compact design: 3 poles, 6 mm pitch.

Technical details

• Product type: Cross-connection jumper bar
• Number of poles: 3
• Color: Red
• Compatible series: ETI ESC-CBC.4, ETI ESC-CBC.4B
• Conductor material: Copper
• Insulation material: Polyamide (PA)
• Rated current: Max. 32 A
• Rated voltage: Max. 1000 V
• Conductor cross-section compatibility: 4 mm²
• Pitch: 6 mm
• Mounting type: Plug-in
• Operating temperature range: -25°C to +40°C
• Standards compliance: IEC 60947-7-1
• Series: ETI ESC-PTP4
• Function: Electrical bridging of adjacent terminals

Our verdict

A reliable and efficient solution for bridging terminals in ETI terminal blocks, offering high electrical ratings and easy installation.
