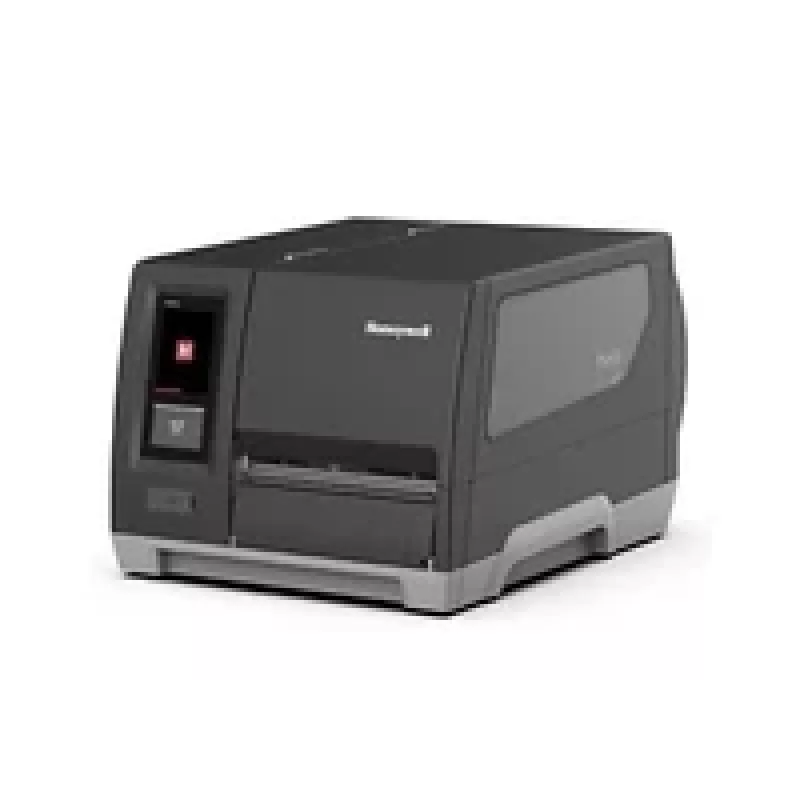

Etichettatrice Honeywell PM65 trasferimento termico 203x203 DPI 300 mm/s con filo

The Honeywell PM65 thermal transfer label printer delivers industrial-grade label printing with 203 x 203 DPI resolution and up to 300 mm/sec print speed. Built for harsh manufacturing, warehouse and distribution environments, the PM65 supports wired Ethernet and optional WWAN connectivity for continuous data communication and real-time visibility. Its rugged all-metal print mechanism, tool-free platen roller and easy printhead replacement simplify maintenance and reduce downtime. The printer accepts a wide range of media and one-inch core ribbons to extend time between resupplies, and it is compatible as a direct replacement for existing Honeywell or mixed-brand printers.

Advantages

The PM65 provides precise, high-volume thermal transfer printing with a maximum print width of 167.4 mm and repeatable registration to maintain barcode and text quality. Enterprise features include remote configuration and diagnostics, centralized management via Honeywell Printer Edge and support for mobile setup through Print Set MC. Scalable interfaces (RFID, parallel, applicator) and WWAN capability allow flexible deployment across varied site topologies while the all-metal construction and simple service procedures reduce maintenance time.

Suitable for

• Industrial manufacturing label printing
• Warehouse and distribution centre operations
• Pharmaceutical and food & beverage labelling
• High-volume shipping and inventory labelling

Key specifications

• Print technology: Thermal transfer
• Maximum resolution: 203 x 203 DPI
• Maximum print speed: 300 mm/sec
• Maximum printing width: 167.4 mm
• Connectivity: Wired Ethernet (LAN); optional WWAN
• Display: LCD
• Weight: 13.7 kg
• Product colour: Black
• MPN: PM65A10000000200

How to use

Install the PM65 on a stable surface and connect it to power and your wired Ethernet network. Load thermal transfer media and a one-inch core ribbon according to the user manual, align the media guides and close the cover. Configure network and printing settings using the front LCD or the Print Set MC mobile app for Android/iOS. For centralized monitoring and diagnostics, register the printer with Honeywell Printer Edge or an equivalent management platform. Replace the printhead or platen roller using the tool-free design following safety and handling instructions provided by Honeywell.

Recommendations

Use certified or recommended media and ribbons to maintain printhead lifespan and barcode readability. Enable remote monitoring and routine diagnostics to minimise downtime, and schedule media and ribbon resupply to match your production volumes. For deployments requiring wireless wide-area coverage, select the WWAN-capable model and verify carrier compatibility before installation.
