EURA ADP-48A3 (RL-3203CC) Citofono audio con filo - Bianco/Argento

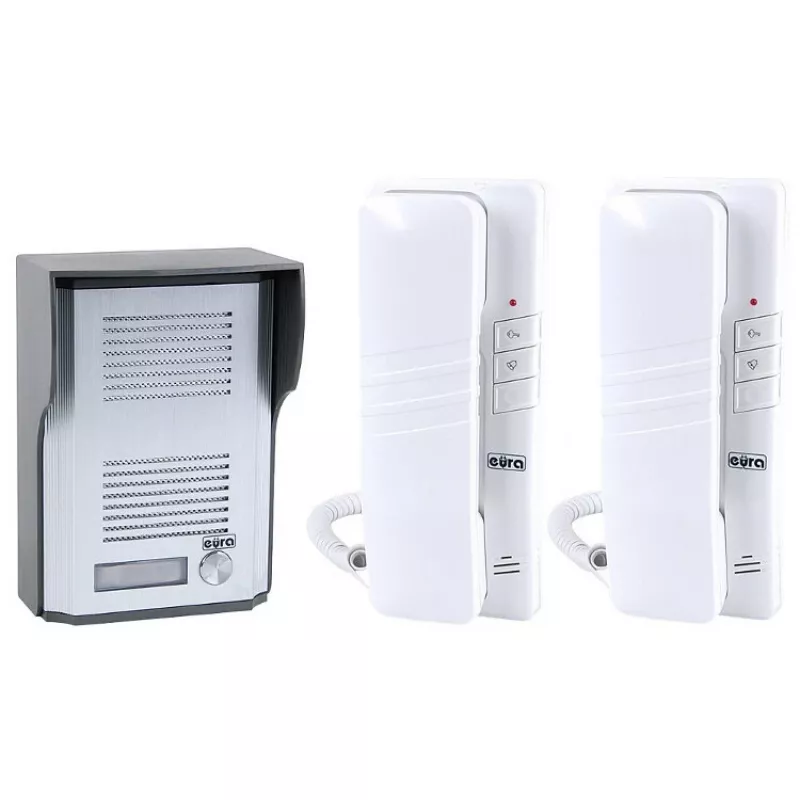

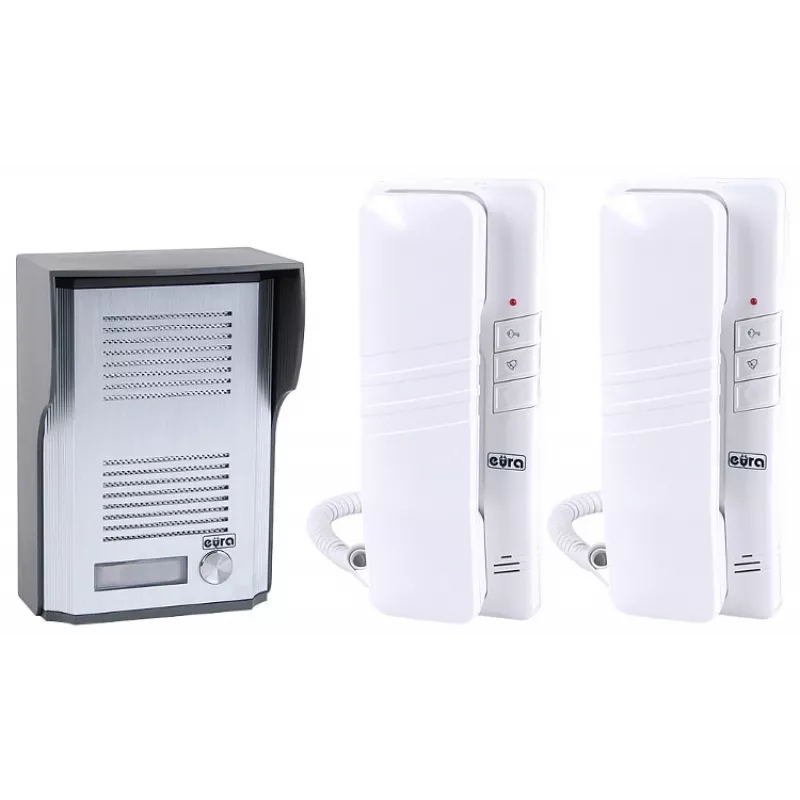

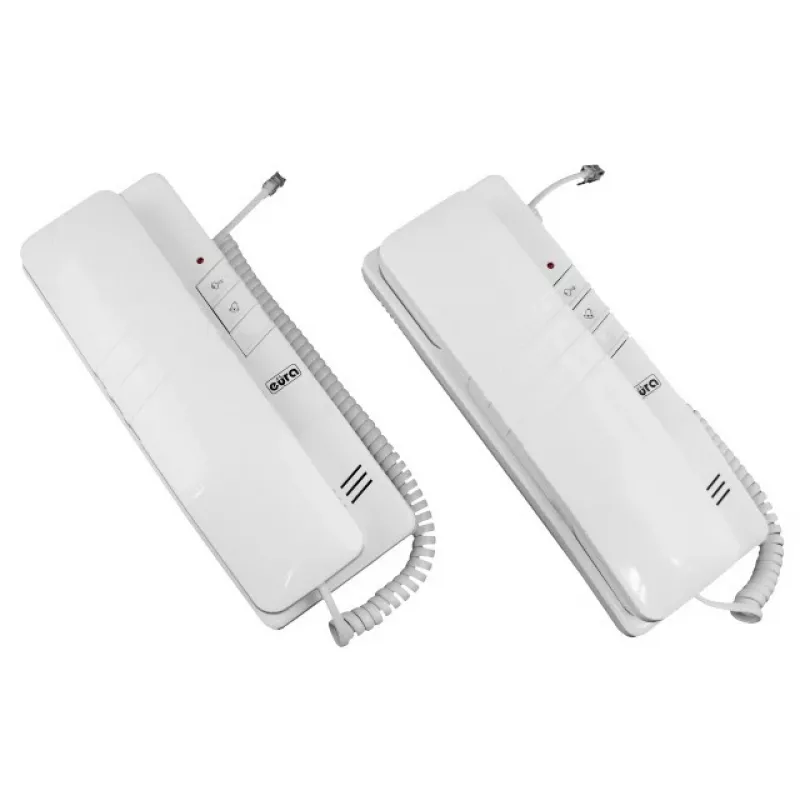

The EURA ADP-48A3 (RL-3203CC) is a wired audio intercom system designed for single-family homes. It includes an outdoor panel with illuminated nameplate and an indoor uniphone, providing reliable communication and door release functionality.

Advantages

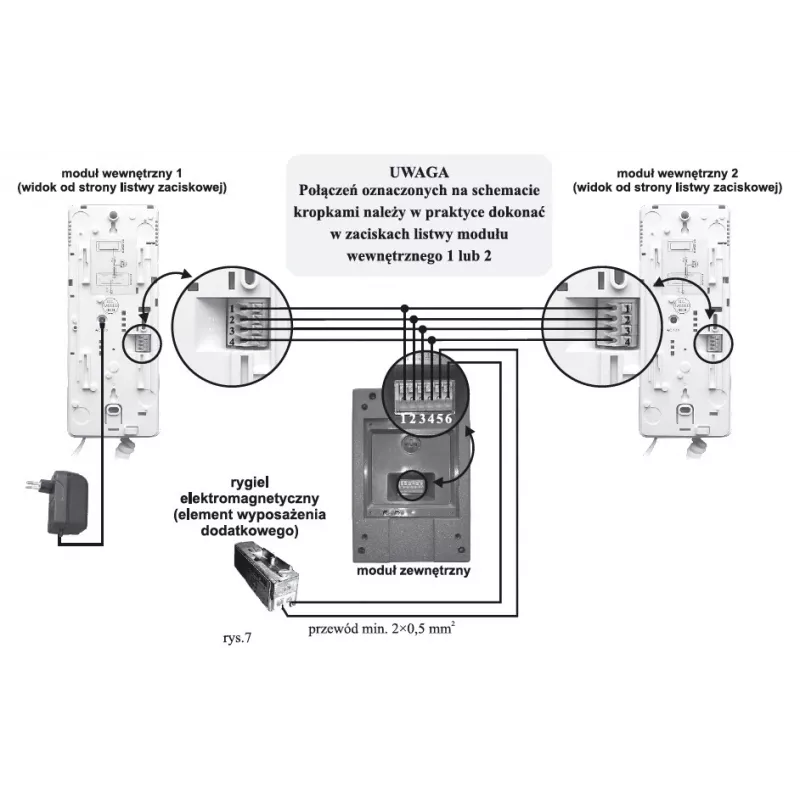

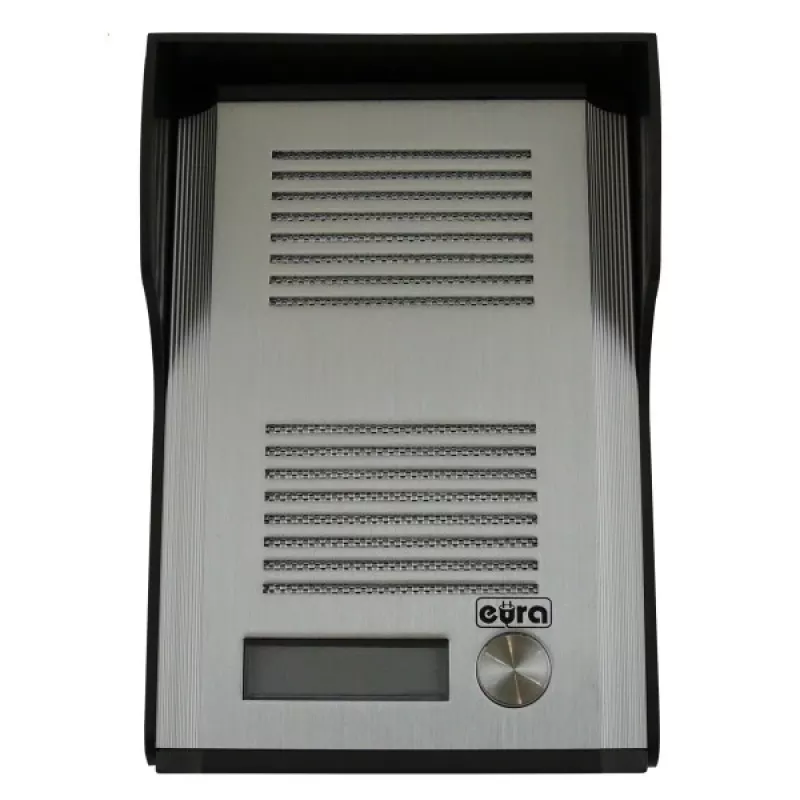

Easy 2-wire connection between outdoor panel and uniphone simplifies installation. The outdoor panel is made of durable aluminum alloy, while the uniphone features a modern ABS plastic design with mute and adjustable ringtone volume. The electronic 'ding-dong' ringtone is pleasant and clear.

Suitable for

• Single-family homes requiring a basic audio intercom
• Replacement or upgrade of existing 2-wire intercom systems
• Surface mount installation on walls or gates

Key specifications

• System Type: Wired Audio Intercom
• Configuration: 1 Outdoor Panel + 1 Uniphone
• Wiring: 2-Wire
• Door Release: Yes (12V DC, max 500mA)
• Power Supply: AC 230V, 50Hz (via Uniphone)
• Outdoor Panel Material: Aluminum Alloy
• Uniphone Material: ABS Plastic
• Outdoor Panel Dimensions: 140 x 60 x 25 mm
• Uniphone Dimensions: 210 x 80 x 50 mm
• Operating Temperature (Outdoor): -15°C to +50°C
• Operating Temperature (Uniphone): 0°C to +45°C
• Power Consumption: Standby ~1W, Max ~5W
• Colour: White (Uniphone), Silver/Grey (Outdoor Panel)

Recommendations

For best performance, use with a compatible electric strike (not included). Ensure proper wiring and follow installation manual.
