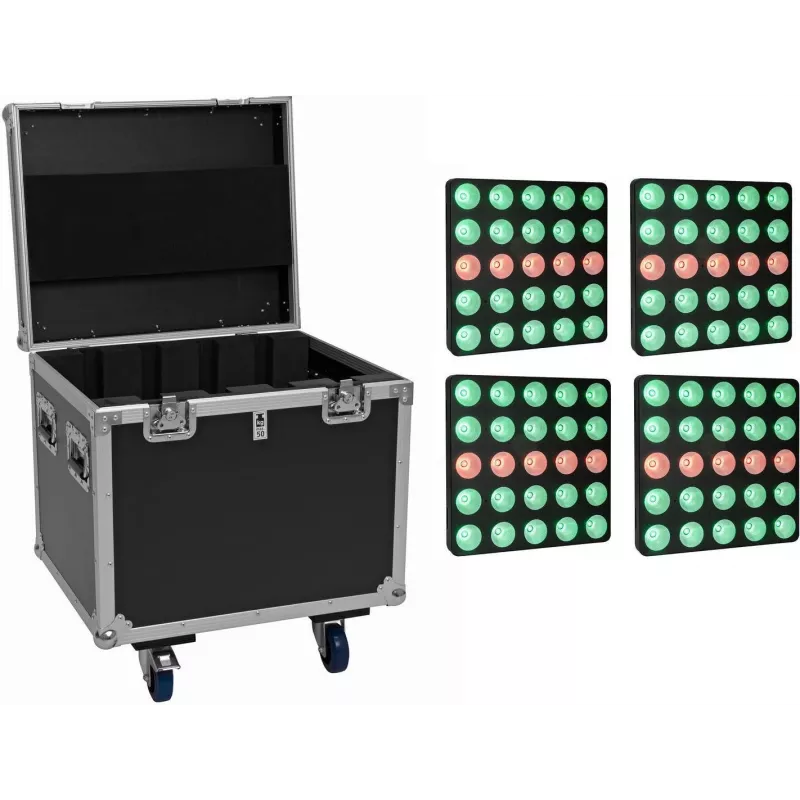

EUROLITE Set 4x LED Pixel Matrix Panel 5x5 RGB/WW + flightcase con ruote

Lighting designers and rental companies needing a versatile pixel-mapping solution will appreciate this complete set of four LED Pixel Matrix Panels, each with a 5x5 array of 10W RGB/WW LEDs. Housed in a rugged flightcase with wheels, the system transports easily between gigs, festivals, and studio installations. The panels deliver intense, saturated colours and warm white tones, with a tight 15° beam angle for precise effects.

Key specifications

• 4 panels, each with 25x 10W 4-in-1 RGB/WW LEDs (5x5 matrix)
• Control protocols: DMX512, Art-Net, Kling-Net
• DMX channel modes: 4, 6, 9, 10, 16, 25, 100, 104, 106
• Beam angle: 15°; flicker-free refresh rate 3800 Hz
• Power: 100-240V AC, 50/60Hz; max 1000W total (250W per panel)
• Connectors: PowerCon in/out, 3-pin & 5-pin XLR in/out, RJ45 in/out
• OLED display with control buttons; temperature-controlled fan cooling
• Metal housing in black; includes flightcase with wheels and all necessary cables

Why choose it

This set offers a complete, tour-ready pixel mapping system. The 4-in-1 LEDs provide rich colour mixing and warm white for both vibrant effects and subtle illumination. Multiple DMX modes and Art-Net/Kling-Net support ensure compatibility with professional lighting consoles and media servers. The included flightcase protects your investment and simplifies logistics.

Ideal use cases

• Concerts and festivals requiring dynamic pixel-mapped visuals
• TV studios and theatres for creative backdrop effects
• Architectural lighting installations needing precise control
• Rental inventory for versatile, high-impact fixtures

Good to know

Each panel operates stand-alone or in master/slave mode, with electronic dimming and variable strobe. The flicker-free operation makes it suitable for broadcast and film. Power and data can be daisy-chained for clean setups. The flightcase with wheels allows easy transport by a single technician.
