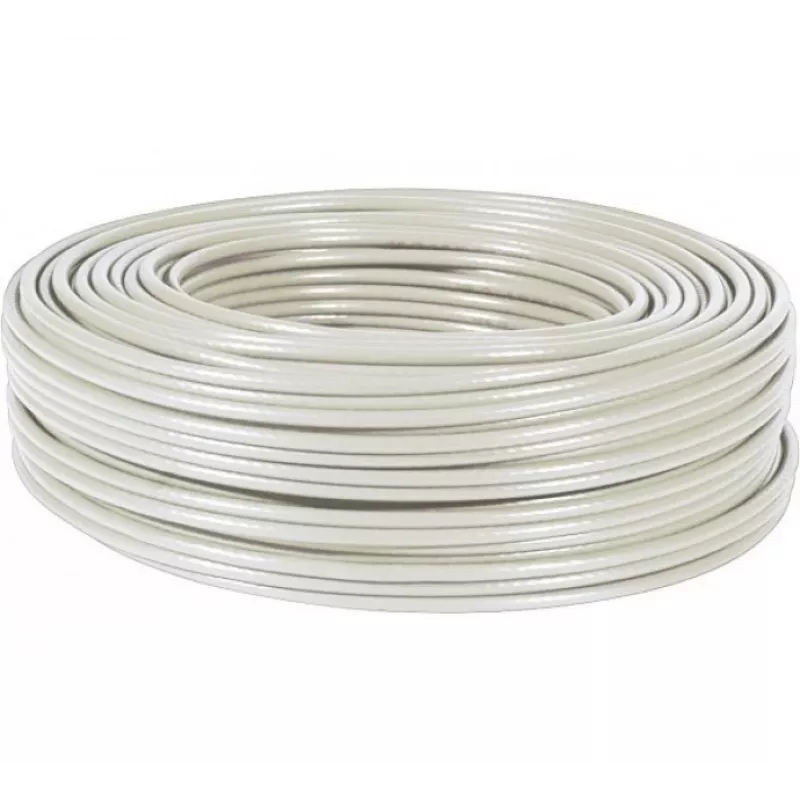

EXERTIS CONNECT Cavo di installazione Cat.6A S/FTP, 100 m anello, grigio (612011)

Cat.6A installation cable with S/FTP shielding delivers 10 Gigabit Ethernet performance up to 500 MHz. Supplied as a 100 m ring in grey, it is built for structured cabling and data center backbones where high-speed, low-crosstalk transmission is essential.

Advantages

Each of the 4 twisted pairs is individually foil-shielded (PiMF) and protected by an overall braid, providing superior alien crosstalk resistance. Bare copper conductors (23 AWG) ensure reliable signal integrity and support Power over Ethernet. The LSZH jacket reduces smoke and toxic emissions in case of fire.

Suitable for

• 10GBASE-T Ethernet links up to 100 m
• Data center and server room cabling
• PoE+ applications
• Structured cabling in commercial buildings

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF + overall braid)
• Conductor: Bare copper, 23 AWG, 8 conductors
• Jacket: LSZH, grey
• Length: 100 m on ring
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Impedance: 100 Ohm
• Outer diameter: 7.2 mm
• CPR class: Dca-s2,d2,a1

Recommendations

Use for permanent links in walls, ceilings, or cable trays. Terminate with Cat.6A shielded connectors and maintain grounding for full shielding effectiveness.
