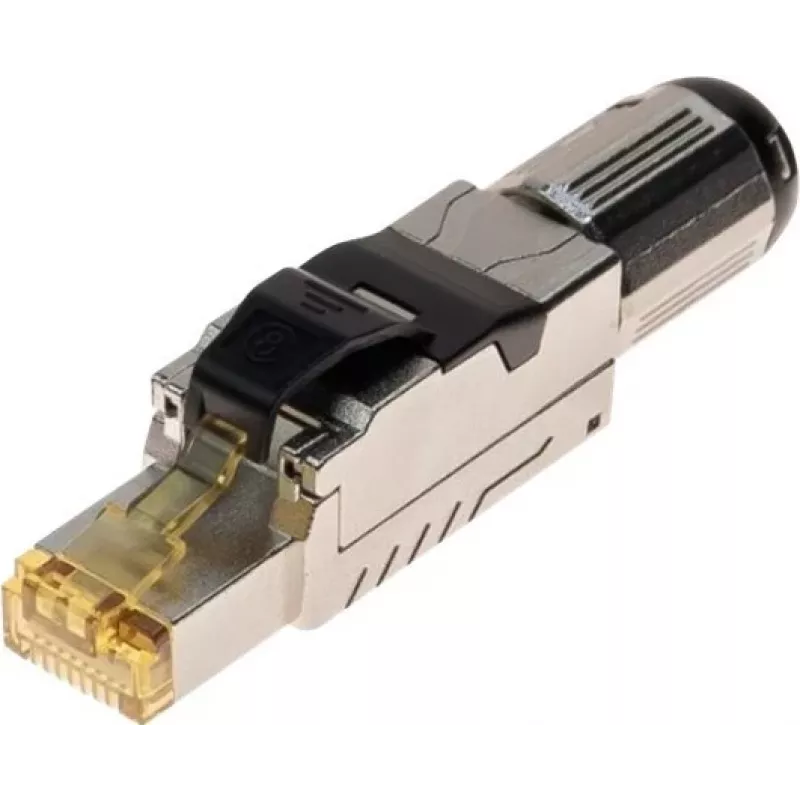

EXERTIS CONNECT connettore RJ-45 STP CAT 8.1 terminabile sul campo 920808

This RJ-45 connector delivers up to 40 Gbit/s data transfer and 2000 MHz bandwidth for high-speed network cabling in data centers and server rooms. Its tool-less field termination and zinc die-cast shielded housing ensure quick, reliable connections.

Advantages

Gold-plated contacts (50µm) and STP shielding provide superior signal integrity and corrosion resistance. Supports PoE up to 4PPoE (IEEE 802.3af/at/bt) and accommodates AWG 22-26 solid or stranded wires with cable diameters from 6.0 to 9.0 mm.

Suitable for

• High-speed network cabling
• Data centers
• Server rooms

Key specifications

• Connector type: RJ-45 male
• Category: CAT 8.1
• Shielding: STP
• Data transfer rate: up to 40 Gbit/s
• Bandwidth: up to 2000 MHz
• Termination: tool-less field termination
• Contact plating: gold-plated (50µm)
• Housing: zinc die-cast
• Wire gauge: AWG 22-26
• Cable diameter: 6.0 - 9.0 mm
• PoE support: PoE, PoE+, 4PPoE
• Operating temperature: -10°C to +60°C

Recommendations

Ideal for professionals seeking a durable, high-performance connector for CAT 8.1 installations with backward compatibility to CAT 6 and above.
