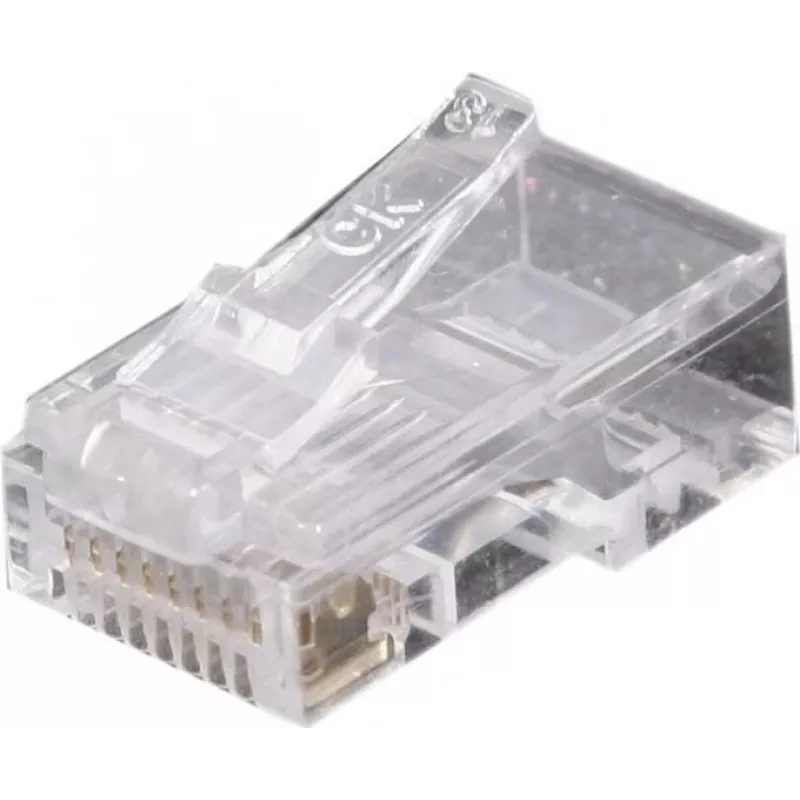

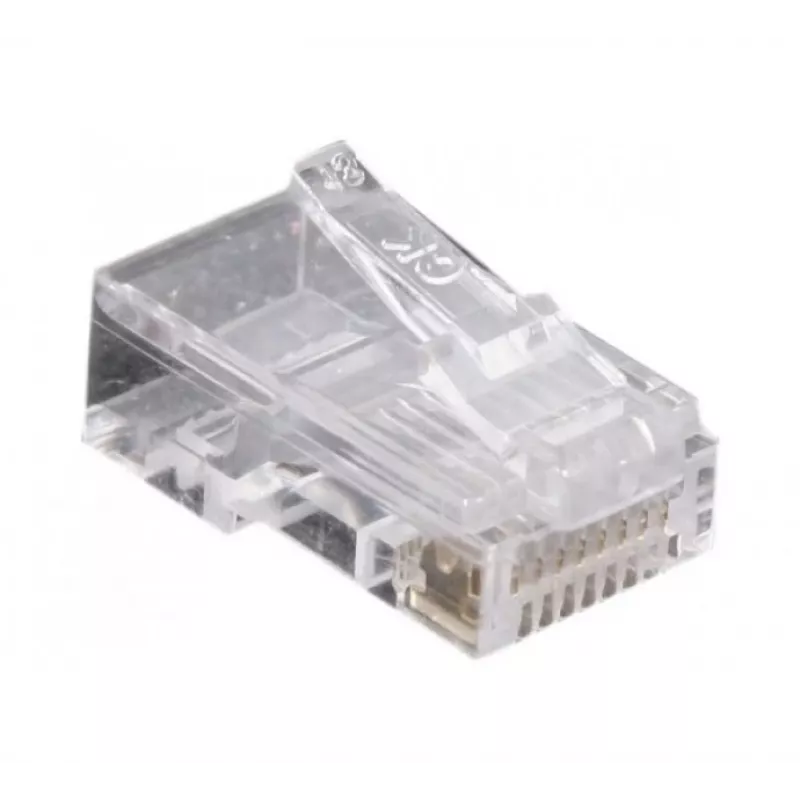

EXERTIS CONNECT EXC920450 Connettore per filo trasparente RJ45

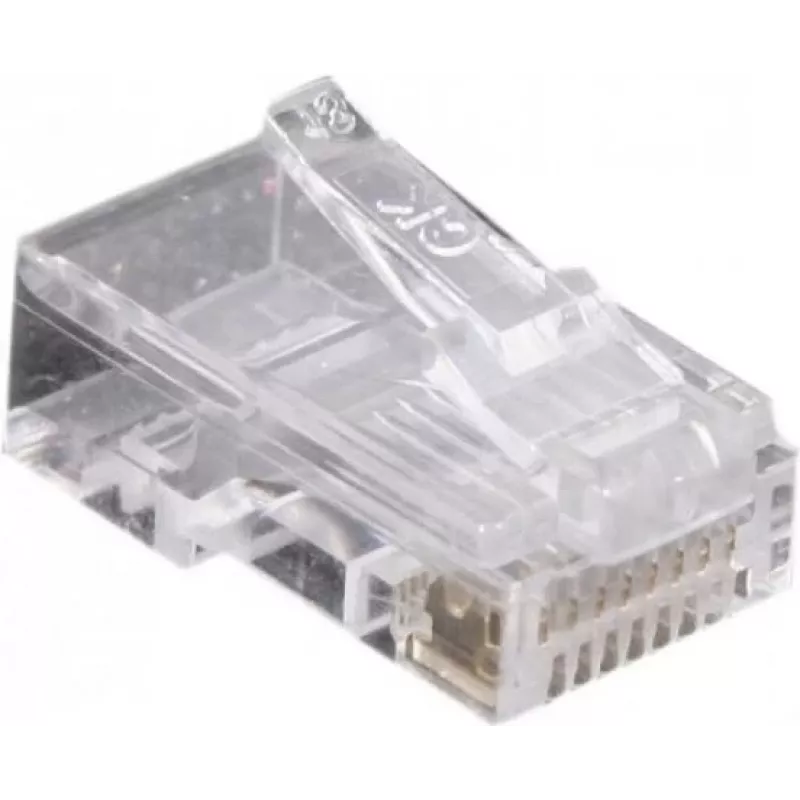

The EXERTIS CONNECT EXC920450 stands out with its transparent polycarbonate housing, allowing visual confirmation of wire placement before crimping. This RJ45 connector is engineered for Cat.6 UTP networks and supports both solid and stranded conductors from 23 to 26 AWG, making it a versatile choice for custom cable assembly.

Highlights

• Transparent body for easy inspection during termination
• Gold-plated phosphor bronze contacts (50 µ") ensure reliable signal integrity
• Compatible with Cat.6 UTP cable and 23-26 AWG conductors
• Durable design rated for 750 mating cycles

In daily use

This crimp-on connector simplifies field termination of Ethernet cables. The clear housing helps prevent wiring errors, while the gold plating resists corrosion and maintains performance over repeated insertions. Suitable for data network termination in both solid and stranded cable installations.

Full specifications

• Connector type: RJ45 (8P8C)
• Category rating: Cat.6
• Shielding: UTP (Unshielded Twisted Pair)
• Contact material: Phosphor bronze, gold-plated (50 µ")
• Housing material: Polycarbonate (PC), transparent
• Wire gauge compatibility: 23-26 AWG
• Cable type: Solid and stranded conductors
• Termination method: Crimp-on
• Flammability rating: UL 94V-2
• Operating temperature: -10°C to 60°C
• Durability: 750 mating cycles
• Standards compliance: RoHS, REACH

Final note

A reliable choice for custom Ethernet cable assembly with the added benefit of a transparent body for error-free terminations.
