EXSYS cavo adattatore USB-A maschio su terminal block a 5 pin con pulsante, USB 2.0, 15 cm EX-49129

Transfer data at up to 480 Mbps with this USB 2.0 adapter cable, featuring an integrated push button for manual switching or reset functions.

Overview

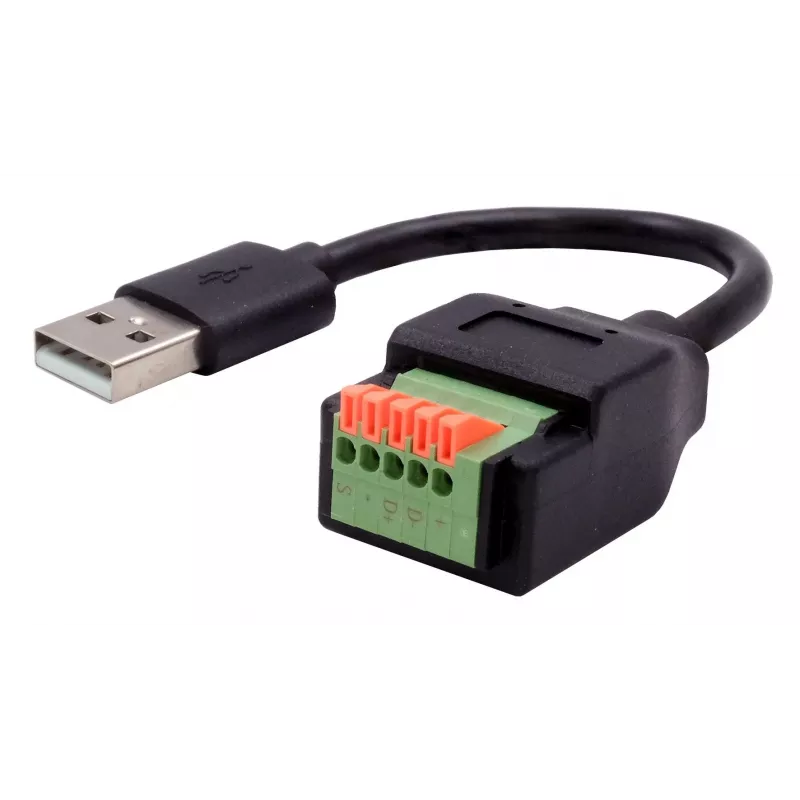

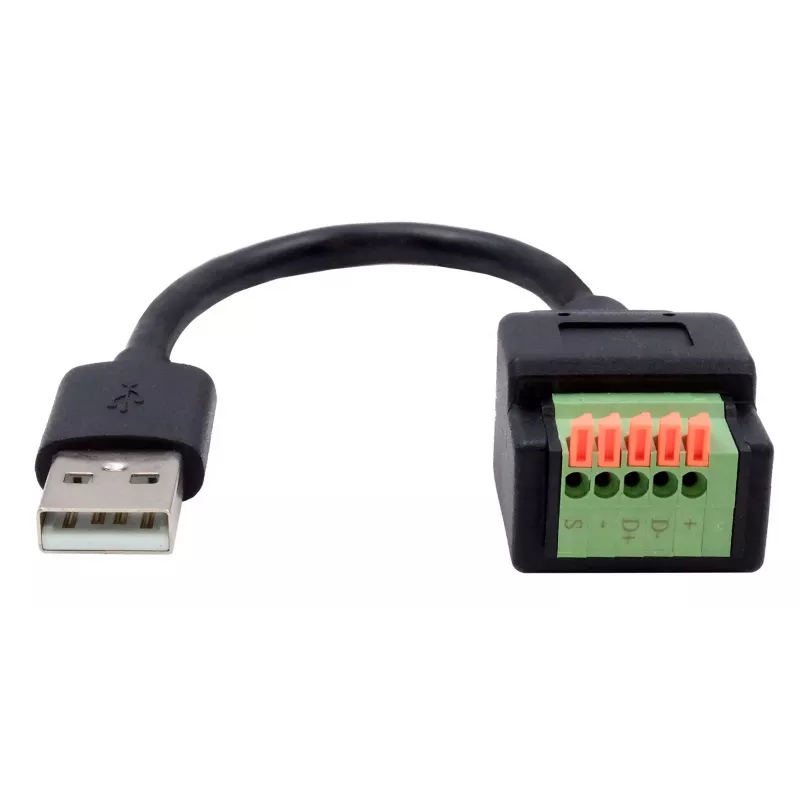

The EXSYS EX-49129 is a 15 cm cable adapter that converts a standard USB Type-A male connector to a 5-pin screw terminal block. It supports USB 2.0 high-speed data transfer and is bus-powered, requiring no external power supply. The terminal block provides access to VCC, D-, D+, GND, and SW (switch) lines, making it ideal for prototyping, custom USB connections, and industrial control applications.

What stands out

• Integrated push button for convenient switching or reset control
• 5-pin screw terminal block for secure, solderless connections
• USB 2.0 compliant with data rates up to 480 Mbps
• Compact 15 cm length for easy integration
• Plug-and-play, no drivers required

Technical details

• Connector 1: USB Type-A male
• Connector 2: 5-pin screw terminal block
• USB standard: USB 2.0 (backwards compatible with USB 1.1)
• Data transfer rate: up to 480 Mbps
• Cable length: 15 cm
• Conductor material: Copper
• Jacket material: PVC
• Colour: Black
• Power source: USB bus-powered
• Compatibility: USB 2.0, USB 1.1

Our verdict

A practical adapter for developers and technicians needing direct access to USB signals with a convenient push button control.
