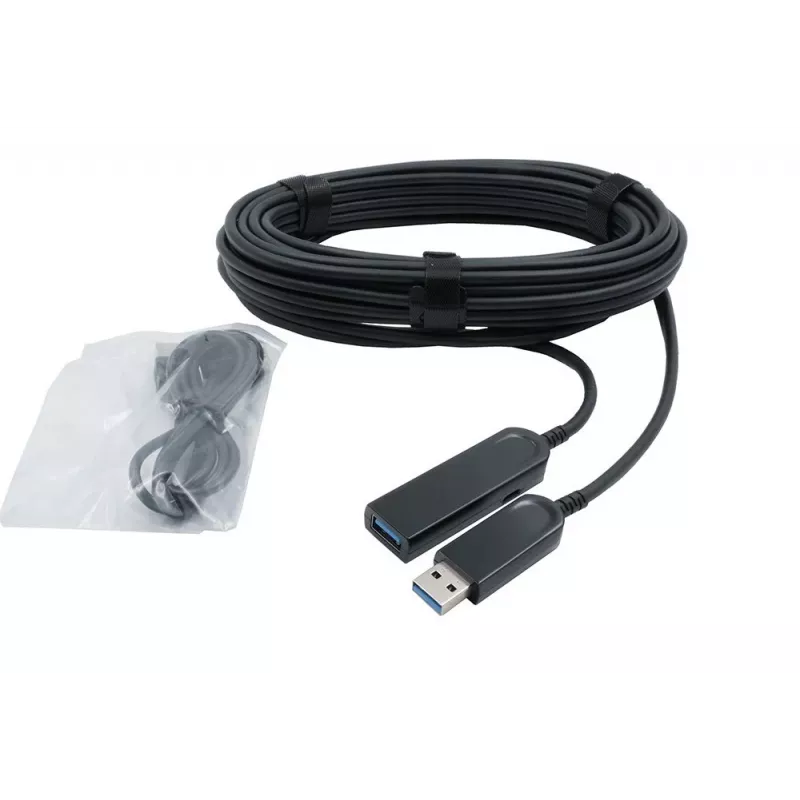

EXSYS Cavo ottico attivo (AOC) USB 3.2 Gen 1 10m, USB-A a USB-A, nero EX-K1691

For USB connections beyond the standard copper limit, this EXSYS active optical cable carries SuperSpeed USB 5 Gbps signals over 10 meters with full electrical isolation. Unlike passive cables that lose signal after a few meters, the hybrid fiber-copper design keeps data intact while drawing power from the host port—no external adapter needed.

Highlights

• USB 3.2 Gen 1 (SuperSpeed) with 5 Gbps data rate
• Active Optical Cable (AOC) with fiber optic data path and copper power conductors
• 10 meter length (32.8 ft) for extended reach
• USB Type-A male to USB Type-A male connectors
• Bus-powered: no external power supply required
• Plug & Play: no drivers needed, hot-swappable
• Backward compatible with USB 2.0 and USB 1.1
• EMI/RFI immune thanks to fiber optic transmission
• Durable PVC jacket, black

In daily use

Connect a camera, printer, scanner, or industrial device far from the host PC without signal loss. The cable is ideal for machine vision, KVM extension, or any setup where copper USB cables cannot reach. Because the data path is optical, it also eliminates ground loops and electrical interference.

Full specifications

• USB standard: USB 3.2 Gen 1 (SuperSpeed USB)
• Data transfer rate: 5 Gbps
• Cable type: Active Optical Cable (AOC)
• Cable material: Hybrid (fiber optic for data, copper for power)
• Connector type (host): USB Type-A male
• Connector type (device): USB Type-A male
• Cable length: 10 m (32.8 ft)
• Backward compatibility: USB 2.0, USB 1.1
• Power supply: Bus-powered
• EMI/RFI protection: Yes (fiber optic)
• Plug & Play: Yes
• Driver requirement: No drivers needed
• Hot-swappable: Yes
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 70°C (-4°F to 158°F)
• Relative humidity: 0% to 85% RH (non-condensing)
• Cable diameter: approx. 4.5 mm
• Jacket material: PVC
• Colour: Black

Final note

A reliable long-distance USB 3.0 link with the simplicity of a standard cable—just plug it in and it works.
