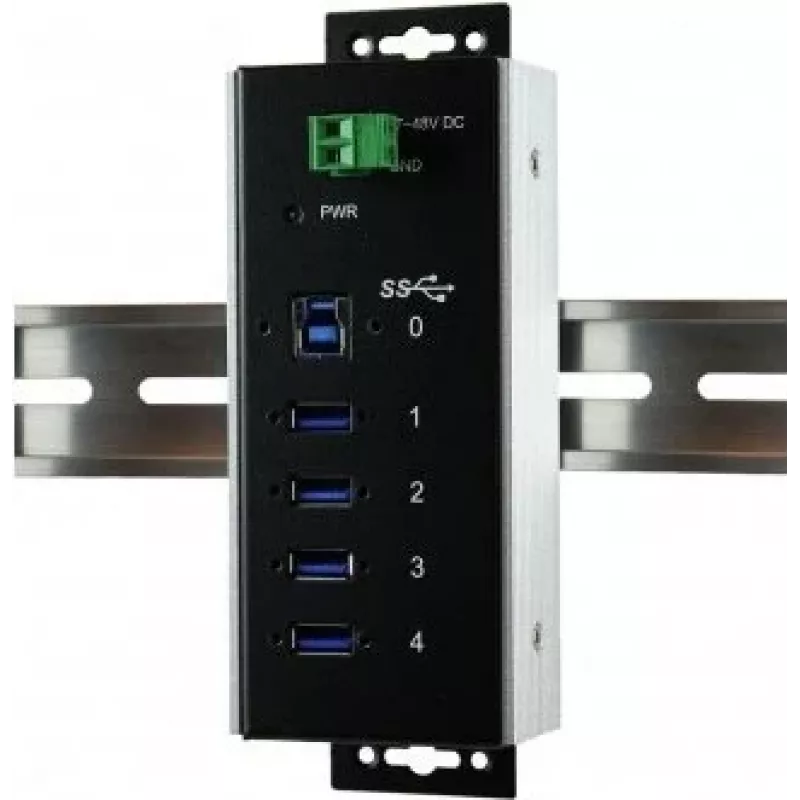

EXSYS EX-1185HMVS-WT hub USB 3.2 Gen 1 industriale, 4 porte, montaggio su guida DIN

The EXSYS EX-1185HMVS-WT is a robust industrial USB hub designed for reliable data transfer in demanding environments. With 4 downstream USB 3.2 Gen 1 (USB 3.0) ports and a screw-lock mechanism, it ensures secure connections for peripherals. The hub features a metal housing, DIN rail mountability, and wide power input range (9-24V DC), making it ideal for factory automation, control cabinets, and embedded systems.

Advantages

Industrial-grade metal housing for durability and heat dissipation. Screw-lock USB ports prevent accidental disconnection. Wide operating temperature range (-40°C to 85°C) for harsh environments. ESD protection up to 15kV air/8kV contact ensures reliability. Plug and Play with no driver installation required for most operating systems.

Suitable for

• Industrial automation and control systems
• DIN rail mounted installations in cabinets
• Embedded systems requiring robust USB connectivity
• Applications needing secure, vibration-resistant connections

Key specifications

• USB Standard: USB 3.2 Gen 1 (5 Gbps)
• Downstream Ports: 4 x USB Type-A with screw-lock
• Upstream Port: 1 x USB Type-B
• Mounting: DIN rail mountable
• Housing: Metal
• Power Input: 9-24V DC via terminal block
• Operating Temperature: -40°C to 85°C
• ESD Protection: 15kV air, 8kV contact
• Chipset: Genesys Logic GL3523
• Compliance: CE, FCC, RoHS

Recommendations

For maximum reliability in industrial settings, pair this hub with a regulated 24V DC power supply and use high-quality USB cables with locking connectors.
