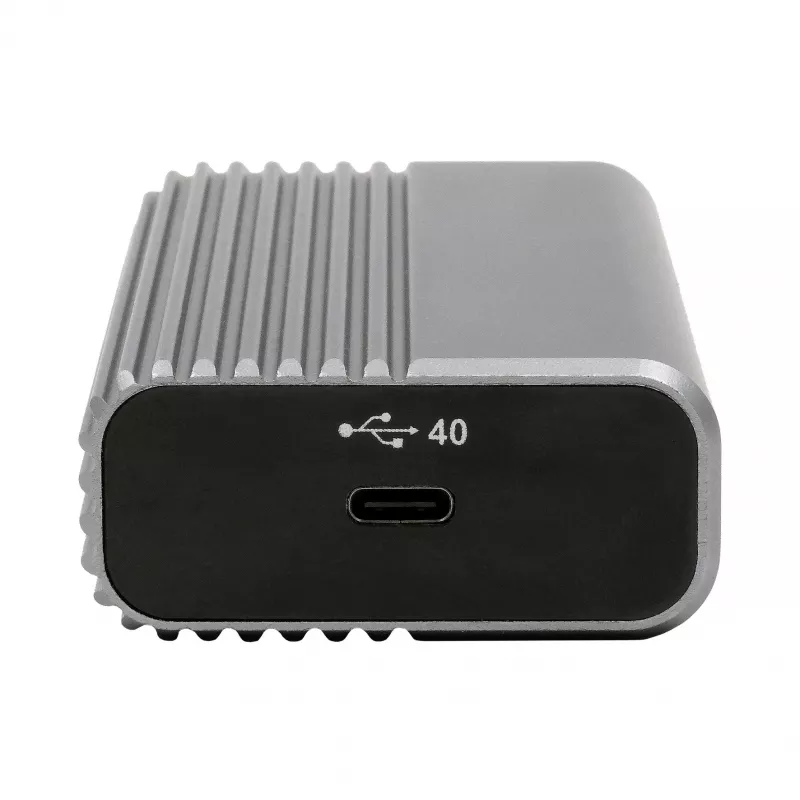

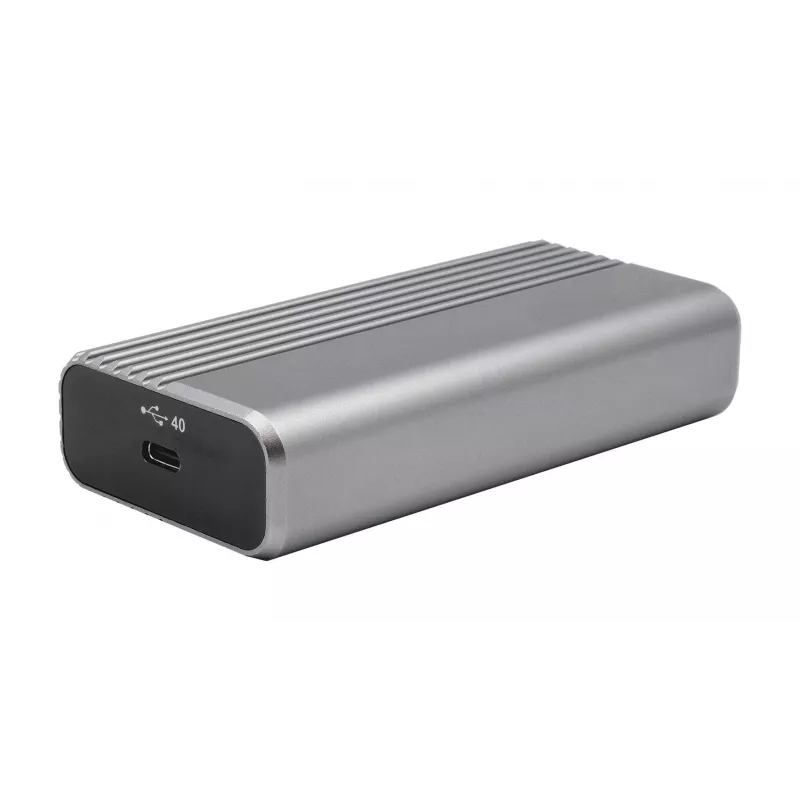

EXSYS EX-1323 Adattatore USB4/Thunderbolt a 10 Gigabit Ethernet

Modern laptops often lack a wired Ethernet port, limiting network speed and reliability. The EXSYS EX-1323 solves this by adding a 10 Gigabit Ethernet port through a USB4 or Thunderbolt 4 connection, enabling fast and stable wired networking.

Who is it for

Professionals who need high-speed, low-latency network connections on laptops or desktops with USB4 or Thunderbolt 4 ports. Ideal for video editing, large file transfers, and network-intensive applications.

Main features

• Adds a 10GBASE-T Ethernet port via USB4/Thunderbolt 4
• Supports 10G, 5G, 2.5G, 1G, and 100M Ethernet speeds
• Bus-powered – no external power adapter needed
• Aluminum housing for durability and heat dissipation
• Integrated 15 cm USB-C cable
• Jumbo frame support up to 16K bytes
• Wake-on-LAN and PXE boot support

Specifications

• Host interface: USB4 / Thunderbolt 4 (USB-C)
• Network interface: 1x RJ45 Ethernet port
• Chipset: Aquantia AQC113CS
• Data transfer rate: 10 Gbps
• Backward compatibility: USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0
• Supported Ethernet speeds: 10G, 5G, 2.5G, 1G, 100M
• Power source: Bus-powered
• Jumbo frame support: Up to 16K bytes
• Wake-on-LAN: Yes
• PXE boot support: Yes
• Operating systems: Windows 10/11 (64-bit), macOS 11.x+, Linux Kernel 5.x+
• Housing material: Aluminum
• Integrated cable length: 15 cm
• LED indicators: Link/Activity
• Standards compliance: IEEE 802.3an, 802.3bz, 802.3ab, 802.3u
• VLAN support: IEEE 802.1Q
• Flow control: IEEE 802.3x
• Connector type (host): USB-C Male
• Connector type (network): RJ45 Female

Tips

For best performance, connect to a 10 Gigabit switch or router and use Cat6a or higher Ethernet cables. The adapter is plug-and-play on most modern operating systems, but check for driver updates if needed.
