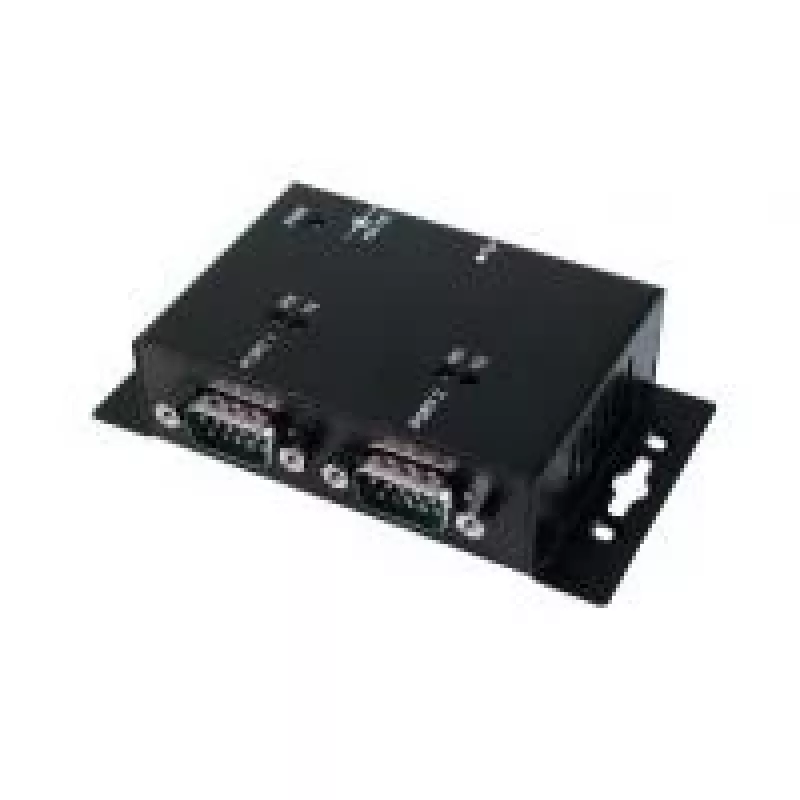

EXSYS EX-1332HMV Adattatore USB a 2 porte RS-232/422/485 seriale

Industrial-grade USB to dual serial adapter providing two independent RS-232/422/485 ports with 2.5 KV optical isolation and 15 KV ESD protection. Ideal for connecting legacy serial devices to modern computers in harsh environments.

Advantages

Each port is individually configurable for RS-232, RS-422, or RS-485, supporting both 2-wire and 4-wire RS-485 modes. The FTDI FT2232H chipset ensures broad OS compatibility, while the metal housing and optical isolation protect against ground loops and electrical noise.

Suitable for

• Industrial automation and control systems
• POS terminals and barcode scanners
• Laboratory instruments and data acquisition
• Legacy device connectivity in enterprise environments

Key specifications

• USB 2.0 interface, backward compatible with USB 1.1
• Two DB9 male serial ports plus 5-pin terminal blocks
• Data transfer rates up to 921.6 Kbps
• 2.5 KV optical isolation between USB and serial, and between serial ports
• 15 KV ESD protection on all serial signals
• Powered via USB bus (5V DC)
• Supports Windows, Windows Server, Linux, and macOS

Recommendations

Verify driver availability for your specific operating system version before deployment. For RS-485 networks, ensure proper termination and biasing according to your network topology.
