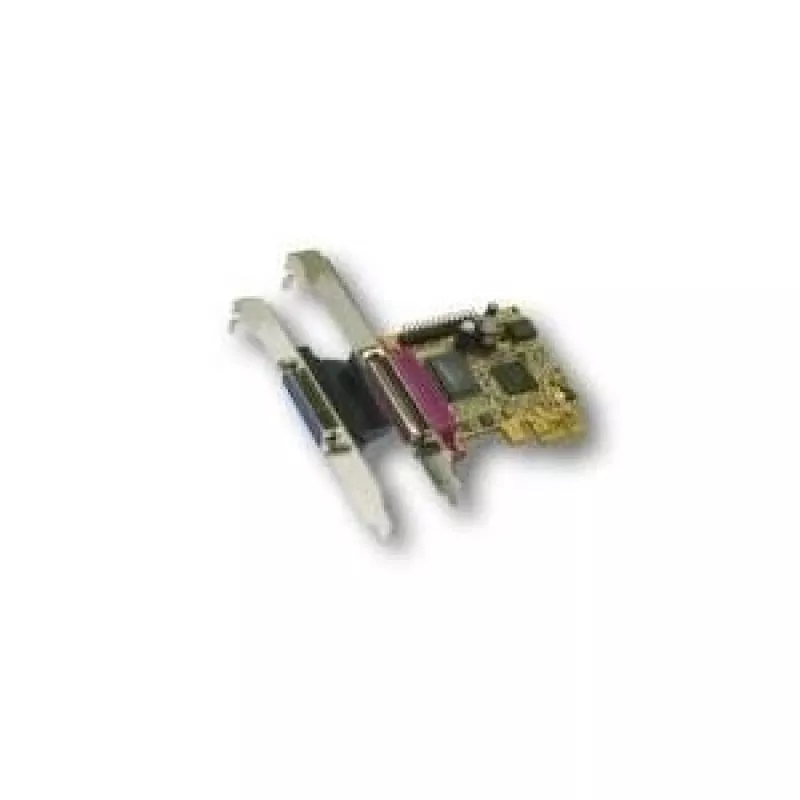

EXSYS EX-44012 scheda PCI Express doppia porta parallela EPP/ECP, MosChip MCS9901CV, low profile

Expand legacy parallel connectivity on modern systems with the EXSYS EX-44012 PCI Express dual parallel port card. Built around the MosChip MCS9901CV controller, this card delivers two high-speed IEEE 1284 parallel ports via a single PCIe x1 slot, supporting SPP, PS/2, EPP, and ECP modes for broad compatibility with printers, scanners, CNC machines, and other parallel peripherals. Each port features a 16-byte FIFO buffer and data transfer rates up to 1.5 MB/s, ensuring reliable, low-latency communication even in demanding industrial or office environments.

Advantages

Dual DB25 female ports enable simultaneous connection of two parallel devices without additional hardware. The PCIe 1.0a x1 interface provides 2.5 Gbps bus bandwidth, eliminating bottlenecks for legacy I/O. Automatic IRQ and I/O assignment by BIOS simplifies installation, while support for Windows (XP through 11 and Server) and Linux kernel 2.6.x+ ensures cross-platform compatibility. Both standard and low-profile brackets are included, making the card suitable for slim desktops and 2U rackmount chassis. Bus-powered operation requires no external power supply, and compliance with CE, FCC, and RoHS guarantees safety and environmental standards.

Suitable for

• Connecting legacy parallel printers, plotters, and multifunction devices to modern PCs without native parallel ports.
• Industrial automation and CNC machinery requiring reliable EPP/ECP parallel communication.
• Point-of-sale systems, barcode scanners, and specialized test equipment.
• IT administrators deploying standardized parallel connectivity across mixed Windows and Linux fleets.
• Users with small form factor or low-profile cases needing a dual-port parallel solution.

Key specifications

• Host interface: PCI Express x1 (PCIe 1.0a compliant)
• External ports: 2 x DB25 female parallel
• Parallel modes: SPP, PS/2, EPP, ECP
• Chipset: MosChip MCS9901CV
• Data transfer rate: up to 1.5 MB/s per port
• FIFO buffer: 16-byte per port
• Operating temperature: 0°C to 70°C
• Included brackets: standard profile and low profile
• Power source: PCIe bus power
• Compliance: CE, FCC, RoHS

Recommendations

For reliable dual parallel connectivity in modern PCIe systems, the EXSYS EX-44012 offers a proven MosChip controller, flexible bracket options, and broad OS support. Ideal for legacy device integration in business, industrial, and embedded environments.
