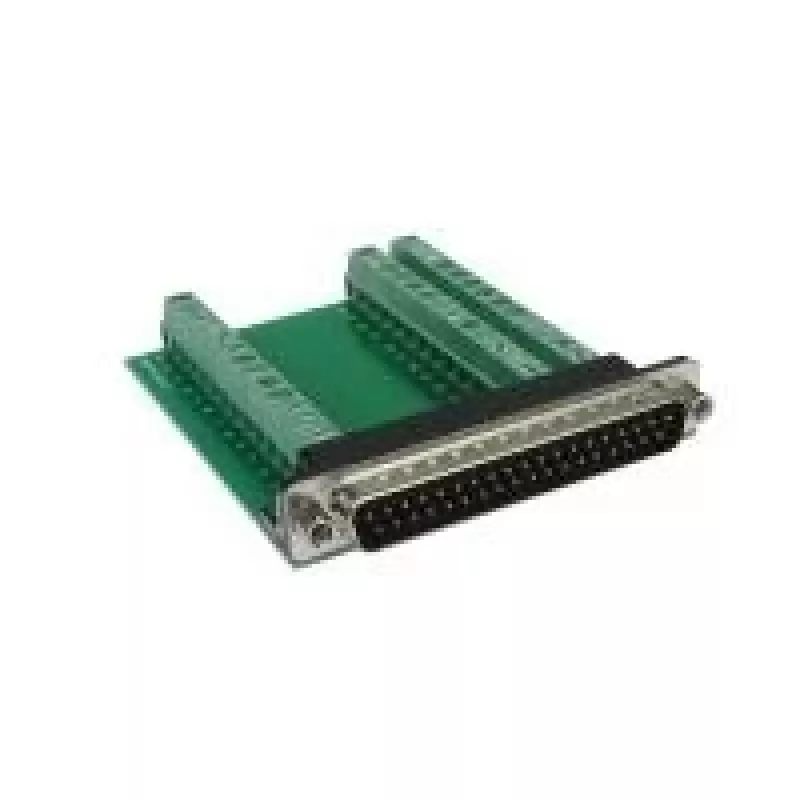

EXSYS EX-49035 adattatore da connettore maschio D-SUB 37 poli a morsettiera a vite 39 poli, verde/argento

The EXSYS EX-49035 breaks out a 37-pin D-SUB connector to 39 screw terminals, giving you direct, tool-free access to every signal line. Unlike open-frame breakout boards, this adapter is fully enclosed in a plastic housing that protects the wiring and keeps the installation tidy in control cabinets or on the bench.

Highlights

• 37-pin D-SUB male connector with standard density pin layout
• 39 screw terminals accept wires up to 2.5 mm² (approx. 14 AWG)
• Green terminal block and silver-tone D-SUB shell for clear visual identification
• Rated for 300 V and 5 A per terminal, 1 A per D-SUB pin
• Operating temperature range from -20°C to 85°C

In daily use

Wire your serial or industrial signals directly to the screw terminals—no soldering or special crimp tools needed. The adapter is free-standing and can be mounted on a DIN rail for permanent installations. The plastic housing keeps terminals insulated and reduces the risk of accidental shorts.

Full specifications

• Connector 1: D-SUB male, 37-pin, standard density (2 rows)
• Connector 2: Screw terminal block, 39 terminals
• Housing material: Plastic
• Terminal block colour: Green
• D-SUB connector colour/finish: Silver-tone
• Max. wire gauge: 2.5 mm² (approx. 14 AWG)
• Rated voltage: 300 V
• Rated current: 1 A per D-SUB pin, 5 A per terminal
• Operating temperature: -20°C to 85°C
• Mounting: Free-standing, optional DIN rail mount

Final note

A practical adapter for industrial automation, serial communication, and data acquisition tasks where reliable screw-terminal connections are required.
