EXSYS EX-49168 adattatore da incasso tipo D Mini DisplayPort femmina a femmina

Supports 4K UHD at 60 Hz through a rugged nickel-plated D-Type housing, making it ideal for professional AV installations, studio racks, and stage setups.

Overview

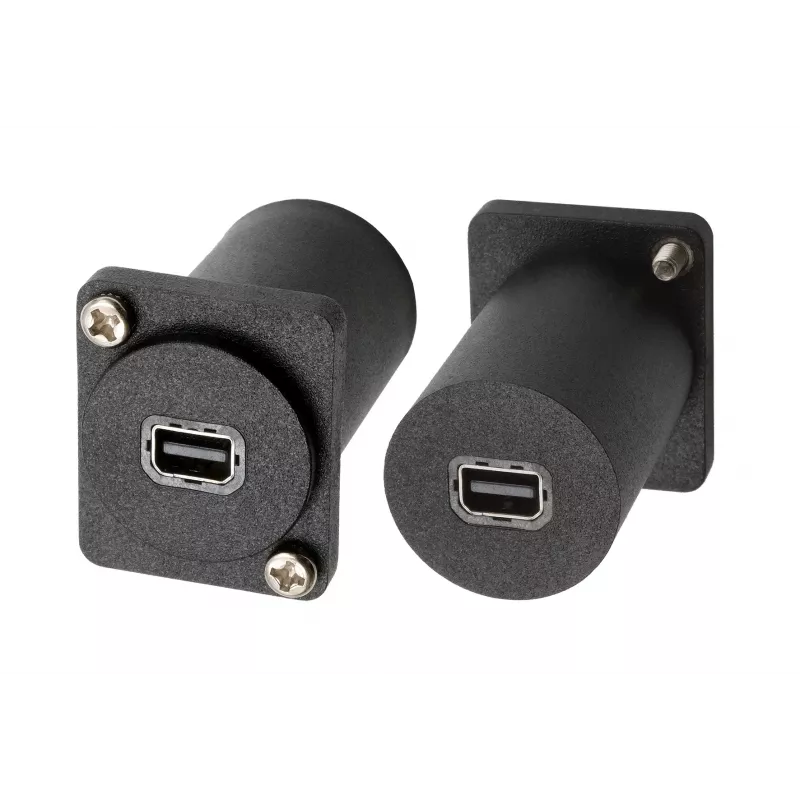

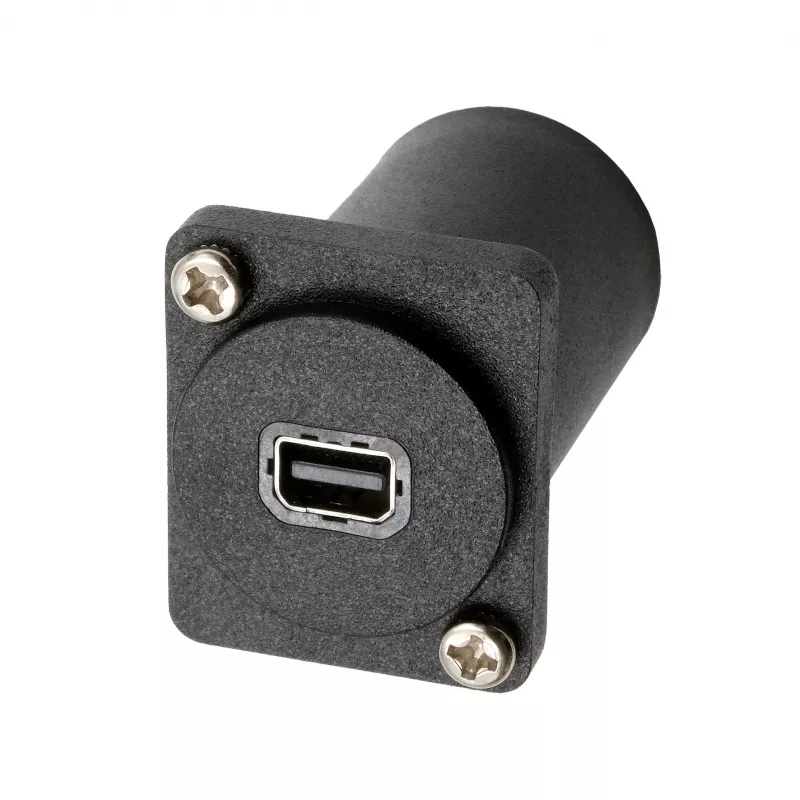

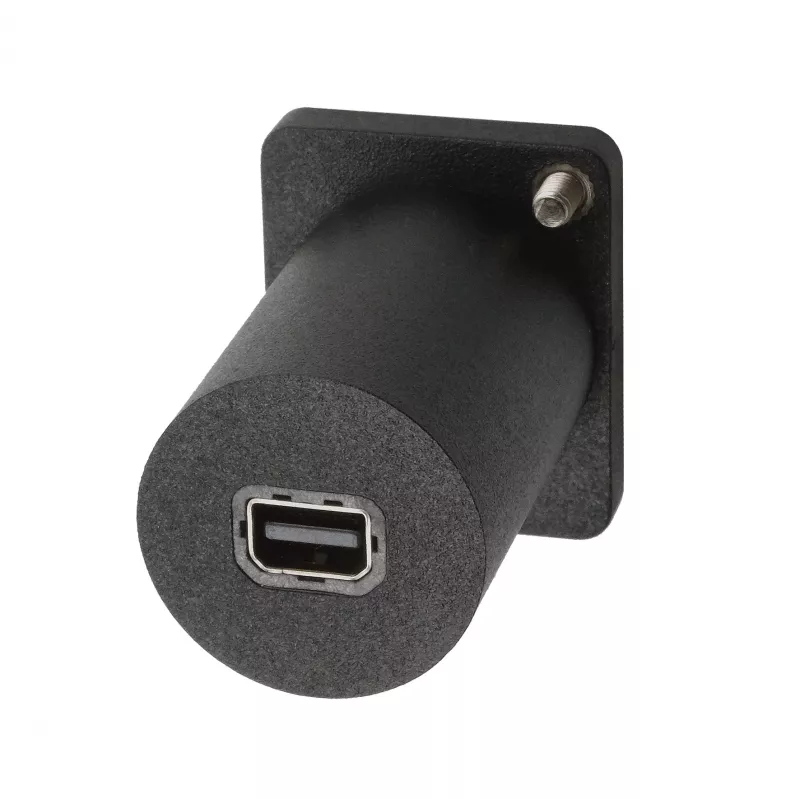

The EXSYS EX-49168 is a panel mount adapter with two Mini DisplayPort female connectors. It is built into a standard D-Type metal housing (Neutrik standard) with a nickel-plated finish, designed for permanent installation in rack panels, wall plates, or custom enclosures.

What stands out

• Supports DisplayPort 1.2 with 4K resolution at 60 Hz
• HDCP 1.3 / 2.2 compatible for protected content
• Multi-channel audio pass-through
• D-Type panel cutout (approx. 24 x 19 mm) fits standard Neutrik-style openings
• Metal housing with nickel plating for durability and shielding

Technical details

• Connector 1: Mini DisplayPort Female
• Connector 2: Mini DisplayPort Female
• DisplayPort version: 1.2
• Maximum resolution: 3840 x 2160 (4K) @ 60 Hz
• HDCP: Yes (1.3 / 2.2)
• Audio support: Yes (multi-channel)
• Housing material: Metal, nickel-plated
• Colour: Silver
• Mounting: D-Type panel mount (Neutrik standard)
• Application: Professional AV, studio, stage, custom installations, rack mounts

Our verdict

A reliable panel-mount solution for extending Mini DisplayPort connectivity in professional environments, delivering full 4K performance in a robust, standard-sized housing.
