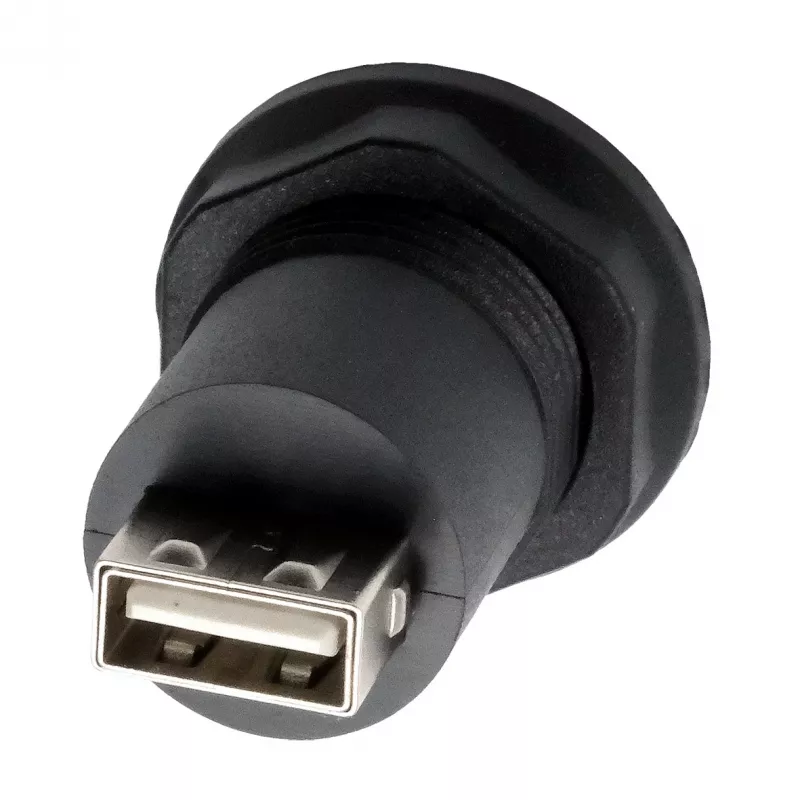

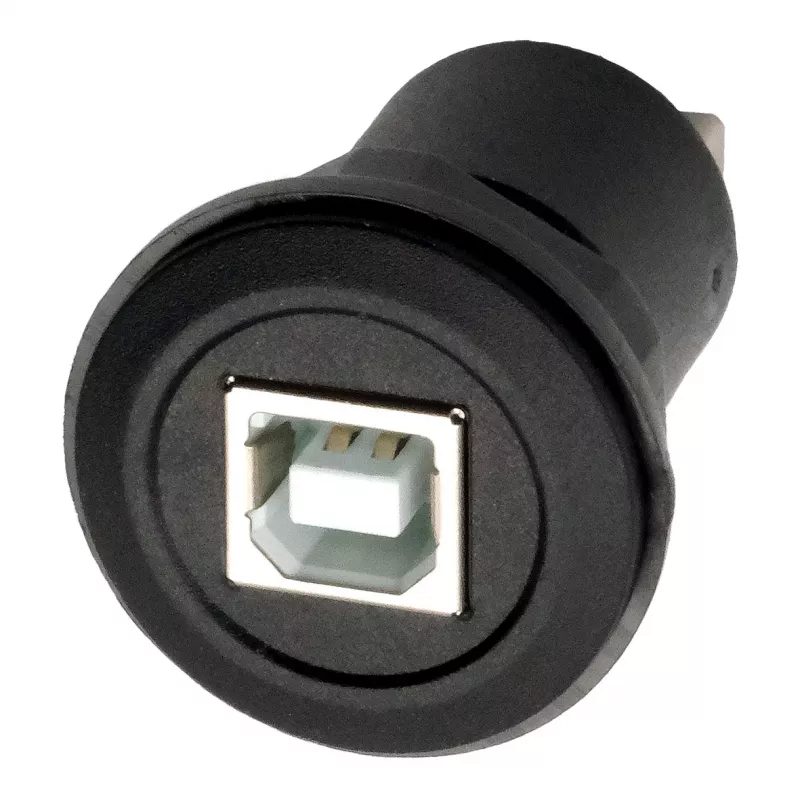

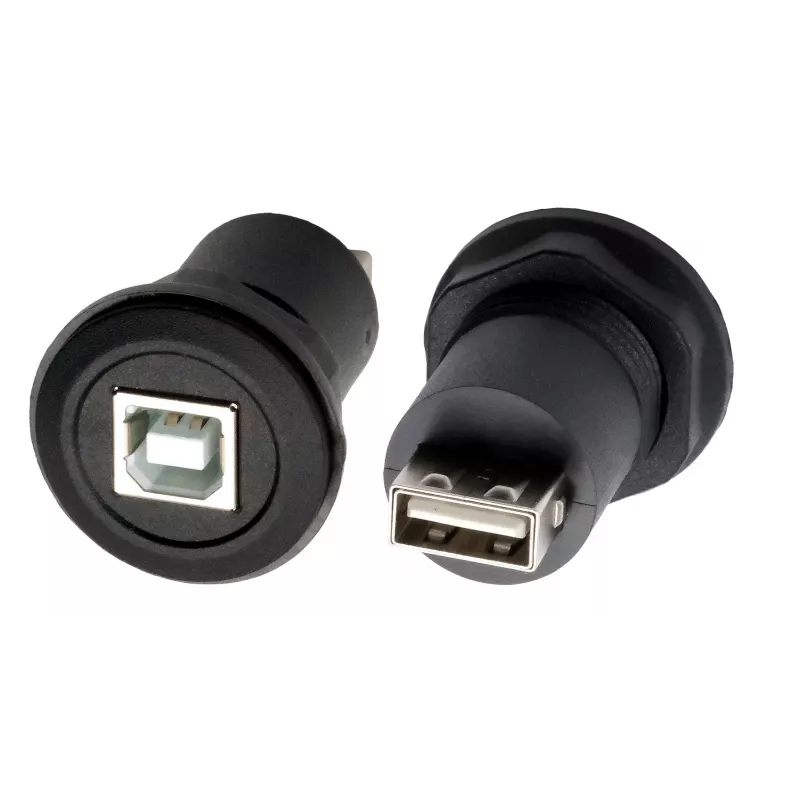

EXSYS EX-49213 adattatore panel-mount USB-B femmina a USB-A femmina, USB 2.0, telaio in metallo

Integrating USB connectivity into custom enclosures or industrial panels often requires a reliable, panel-mounted solution. The EXSYS EX-49213 provides a simple way to add a USB-B female port to the inside of a panel and a USB-A female port to the outside, enabling easy connection of devices without opening the enclosure.

Who is it for

This adapter is ideal for system integrators, industrial PC builders, and electronics enthusiasts who need to mount a USB connection on a panel, chassis, or custom housing. It suits applications where a durable, fixed USB port is required.

Main features

• USB 2.0 high-speed data transfer up to 480 Mbps
• Female USB-B to female USB-A connectors
• Metal frame with screw mounting for secure panel installation
• Backward compatible with USB 1.1 devices

Specifications

• Connector 1: USB Type-B female (internal)
• Connector 2: USB Type-A female (external)
• Data transfer rate: 480 Mbps
• Housing material: Metal frame with plastic connectors
• Colour: Black connectors, silver/grey metal frame
• Mounting type: Screw mount / panel mount
• Operating temperature: 0°C to 70°C
• Storage temperature: -20°C to 85°C

Tips

Ensure the panel cutout matches the adapter's dimensions before installation. The included mounting screws allow for quick and secure attachment.
