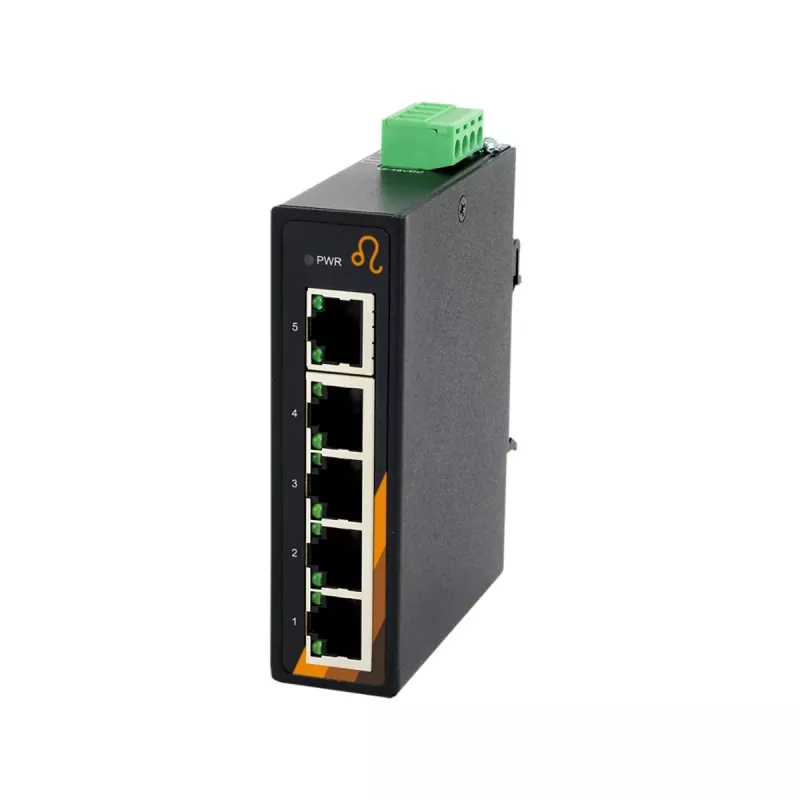

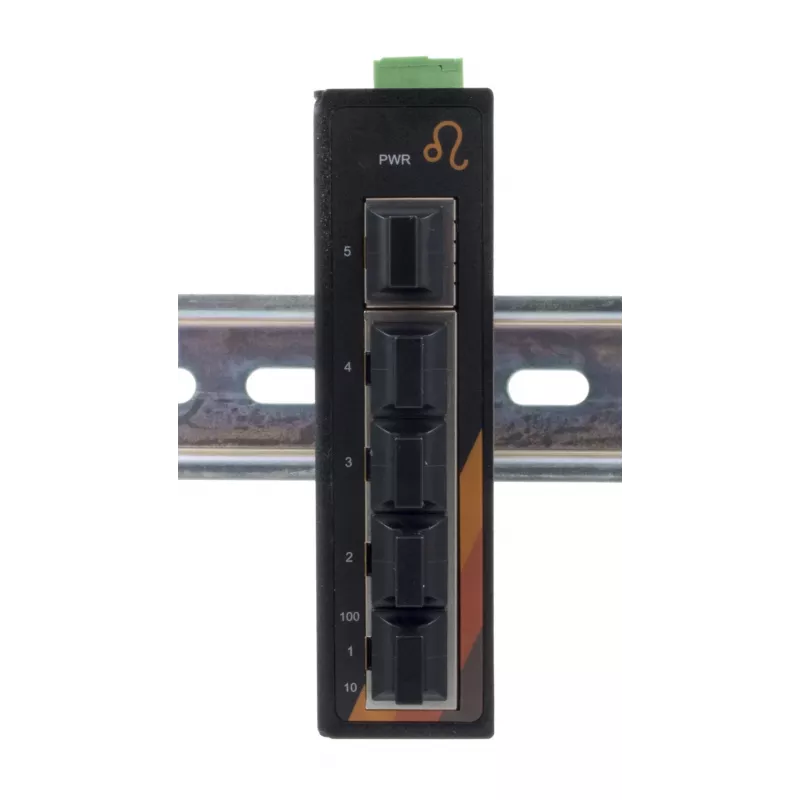

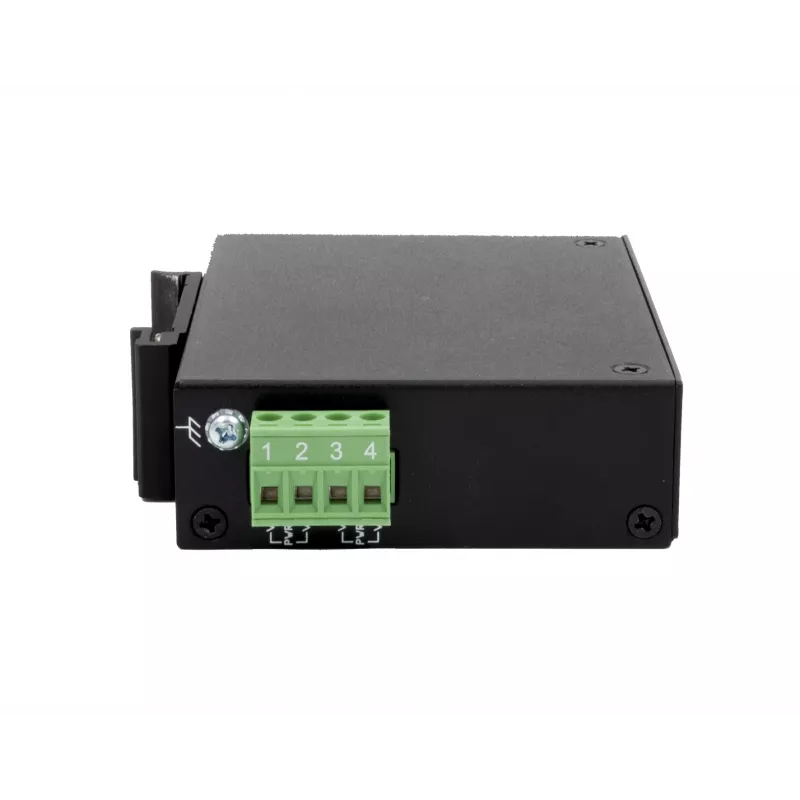

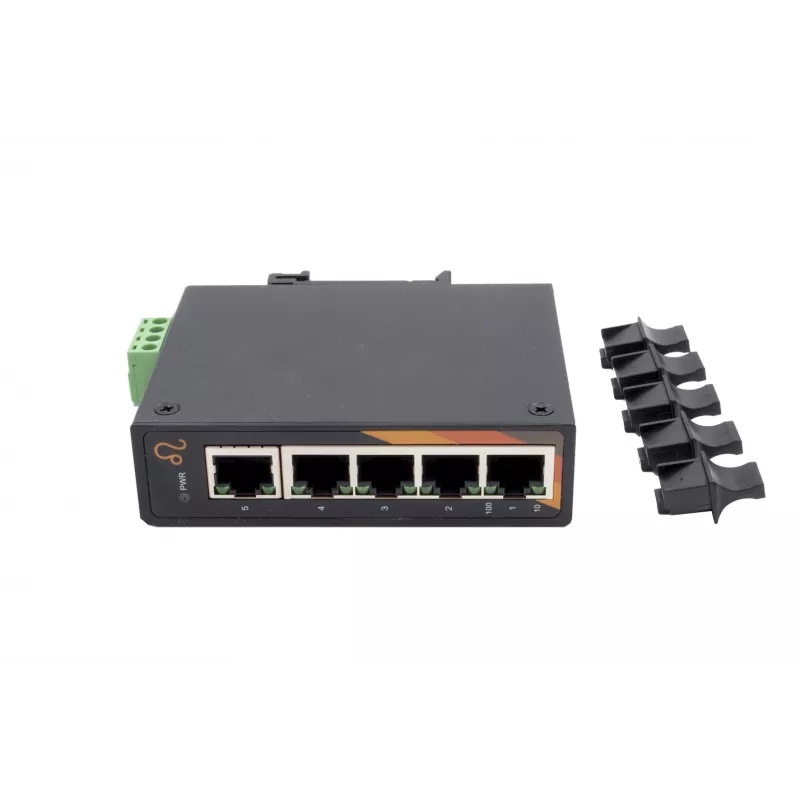

EXSYS EX-6220 Switch Gigabit Ethernet a 5 porte, unmanaged, 10/100/1000 Mbps, case in metallo

The EXSYS EX-6220 stands out as a compact, unmanaged 5-port Gigabit Ethernet switch, delivering full 10/100/1000 Mbps auto-negotiation on every port. Its metal housing and wall-mountable design make it suitable for desktop or discreet installation in tight spaces, while the fanless operation ensures silent running.

Highlights

• 5 RJ45 ports with auto MDI/MDI-X, eliminating the need for crossover cables
• Full-duplex and half-duplex support with IEEE 802.3x flow control
• Switching capacity of 10 Gbps and 2K MAC address table for efficient traffic handling
• Jumbo frame support up to 9K bytes for improved large-file transfer performance
• Powered by an external 5V DC adapter with low 3W power consumption

In daily use

Connect up to five devices—PCs, NAS, IP cameras, or access points—and the EX-6220 automatically negotiates the best speed and duplex mode. LED indicators per port provide instant link and activity status. The sturdy metal case dissipates heat effectively, and the switch can be placed on a desk or mounted on a wall using the integrated slots.

Full specifications

• Ports: 5 × 10/100/1000 Mbps RJ45
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Switching capacity: 10 Gbps
• MAC address table: 2K entries
• Jumbo frame: up to 9K bytes
• Flow control: IEEE 802.3x (full-duplex), back pressure (half-duplex)
• Power input: 5V DC, max consumption 3W
• Housing: metal
• Mounting: desktop or wall-mountable
• LED indicators: power, link/activity per port
• Operating temperature: 0°C to 40°C

Final note

A reliable, no-fuss Gigabit switch for small networks where simplicity and durability matter.
