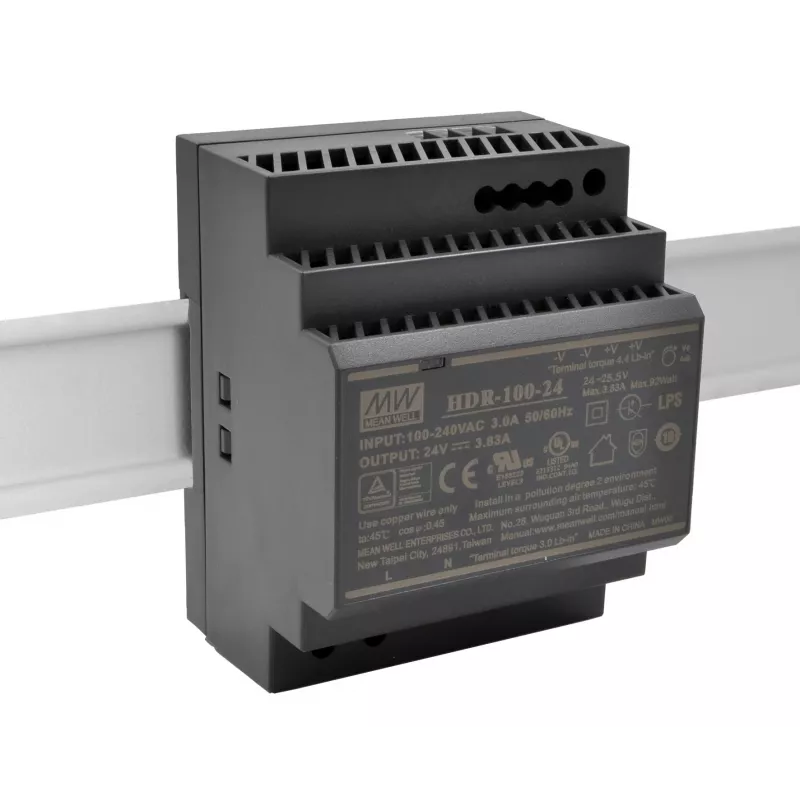

EXSYS EX-6974 Alimentatore per guida DIN 100-240V AC su 24V DC 92W

Industrial DIN rail power supply converting AC 100-240V input to 24V DC output with 92W power, suitable for automation and control cabinets.

Advantages

High efficiency over 88%, wide input voltage range, and adjustable output voltage from 21.6 to 29V DC for flexible integration.

Suitable for

• Industrial automation systems
• Control panels and machinery
• Building technology applications

Key specifications

• Input: AC 90-264V, 47-63 Hz
• Output: 24V DC, 3.8A, 92W
• Adjustable output: 21.6 - 29V DC
• Efficiency: >88%
• Ripple & noise: <150mVp-p
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Protection: short circuit, overload, over voltage, over temperature
• Operating temperature: -20°C to +70°C
• Cooling: free air convection
• Isolation voltage: 3kV AC input-output
• MTBF: >300,000 hours
• Housing: plastic
• Connectors: screw terminals

Recommendations

Ideal for DIN rail mounting in industrial environments requiring reliable 24V DC power.
