EXSYS EX-OPTC44-9-SM Cavo Octopus 4 x 9 Pin seriale RS-232 breakout, connettore maschio HD44 a 4x connettore maschio DB9, 0,6m, nero

Adding multiple RS-232 serial devices to a single host card can quickly become a cable management headache. The EXSYS EX-OPTC44-9-SM Octopus Cable solves this by splitting one high-density HD44 connection into four standard DB9 male ports, each secured with knurled screws for reliable, vibration-resistant connections. Designed specifically for EXSYS multi-port serial cards, this 0.6-meter breakout cable delivers a clean, organized way to expand your serial connectivity without the clutter of multiple individual cables.

Who is it for

System integrators, industrial PC builders, and IT professionals who need to connect multiple RS-232 peripherals—such as barcode scanners, POS terminals, industrial sensors, or legacy equipment—to a single EXSYS serial expansion card. It is ideal for compact installations where space is limited and cable routing must be neat and serviceable.

Main features

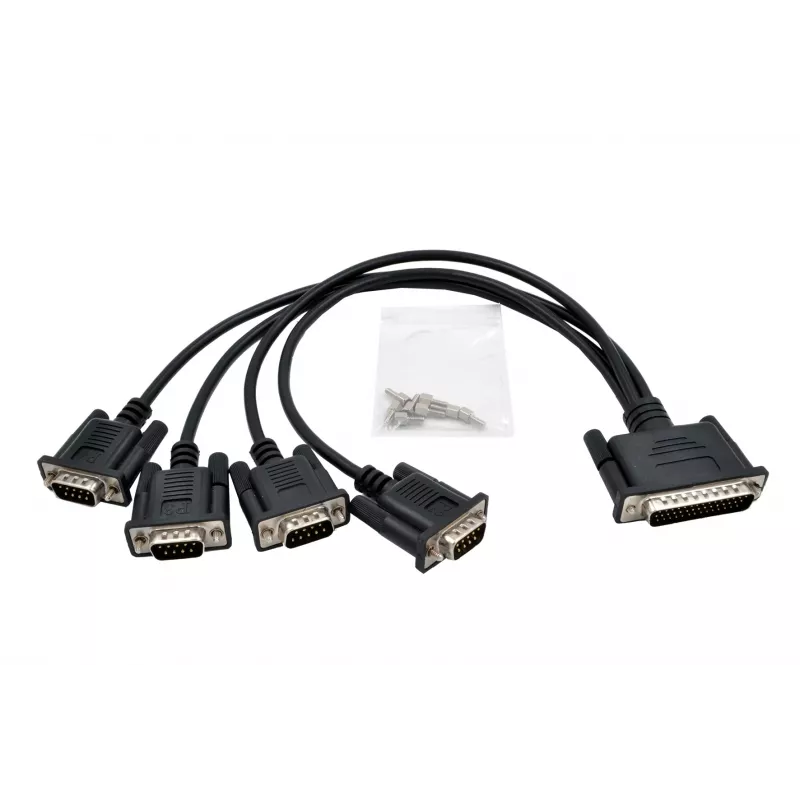

• Breaks out one HD44 male connector into four DB9 male serial ports

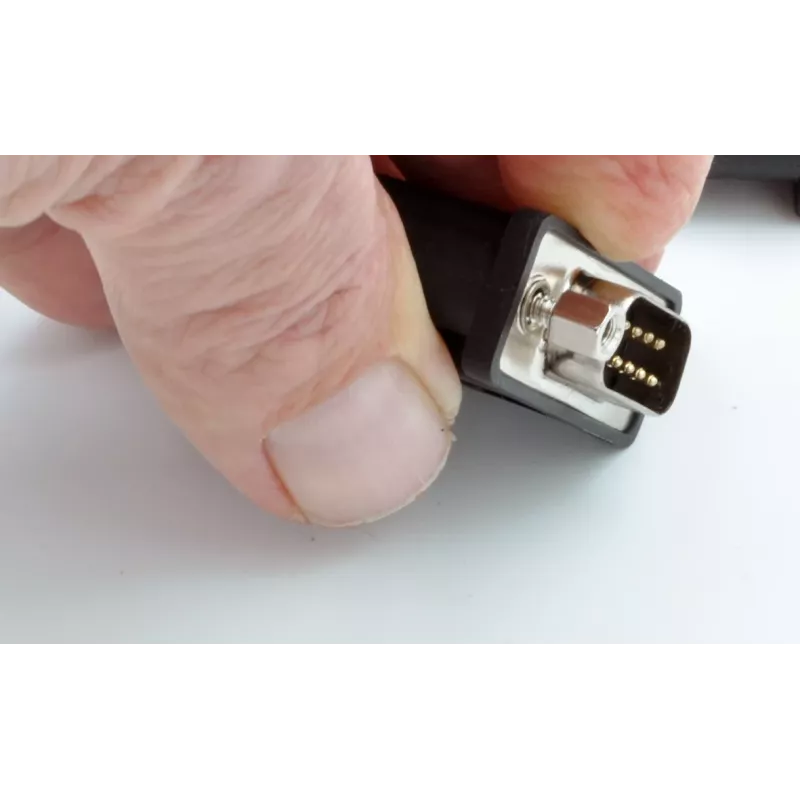

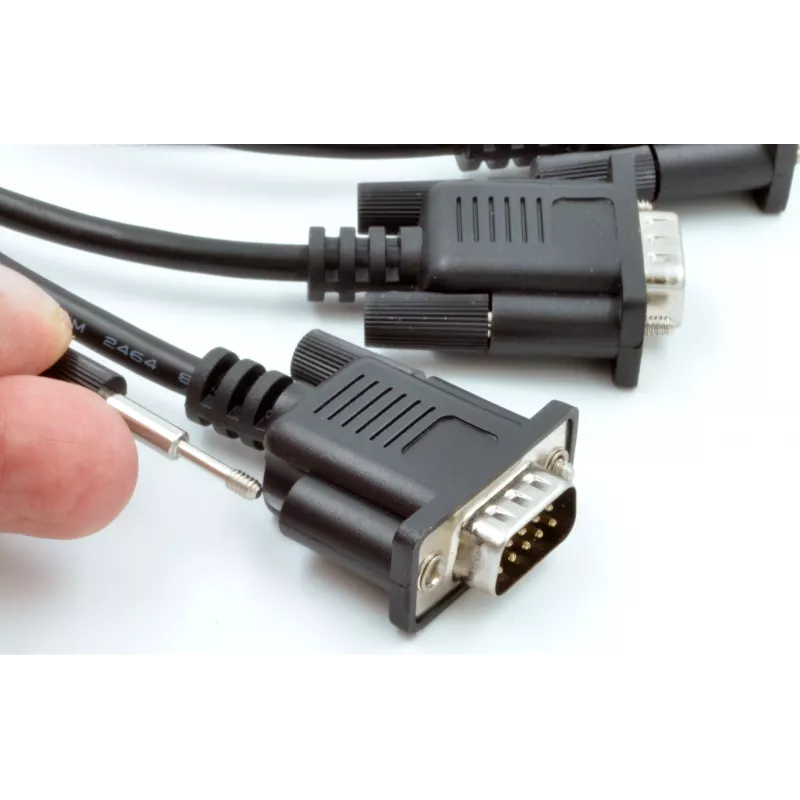

• Knurled screws on each DB9 connector ensure secure, tool-free fastening
• 0.6-meter length keeps connections short and tidy
• Black PVC jacket with copper conductors and shielding for reliable signal integrity
• Compatible with EXSYS EX-41092, EX-41094, EX-41096, and EX-41098 serial cards

Specifications

• Connector 1: 1x HD44 Male

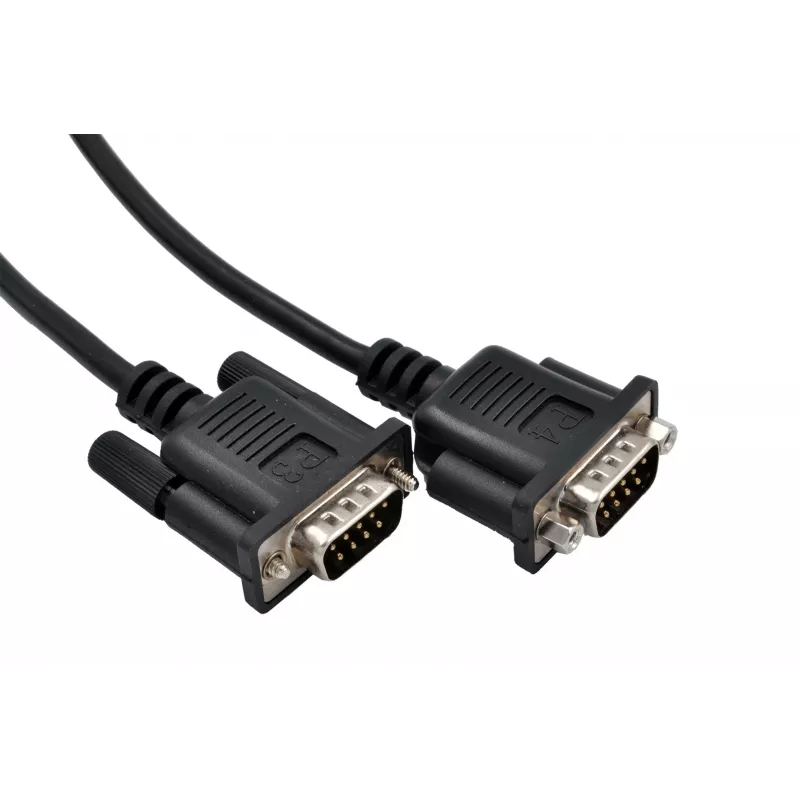

• Connector 2: 4x DB9 Male with knurled screws
• Serial Standard: RS-232
• Cable Length: 0.6 m
• Colour: Black
• Shielding: Yes
• Jacket Material: PVC
• Conductor Material: Copper

Tips

Before purchasing, confirm that your EXSYS serial card has an HD44 female port. The knurled screws are finger-tightened; avoid using tools to prevent damage. For installations with frequent reconfiguration, label each DB9 end to quickly identify the corresponding port.
