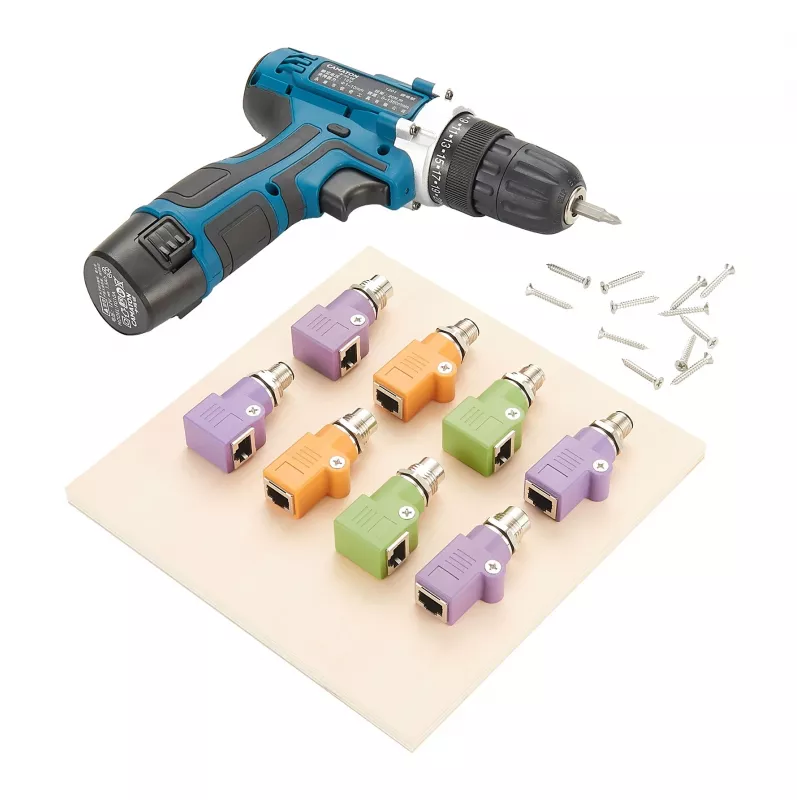

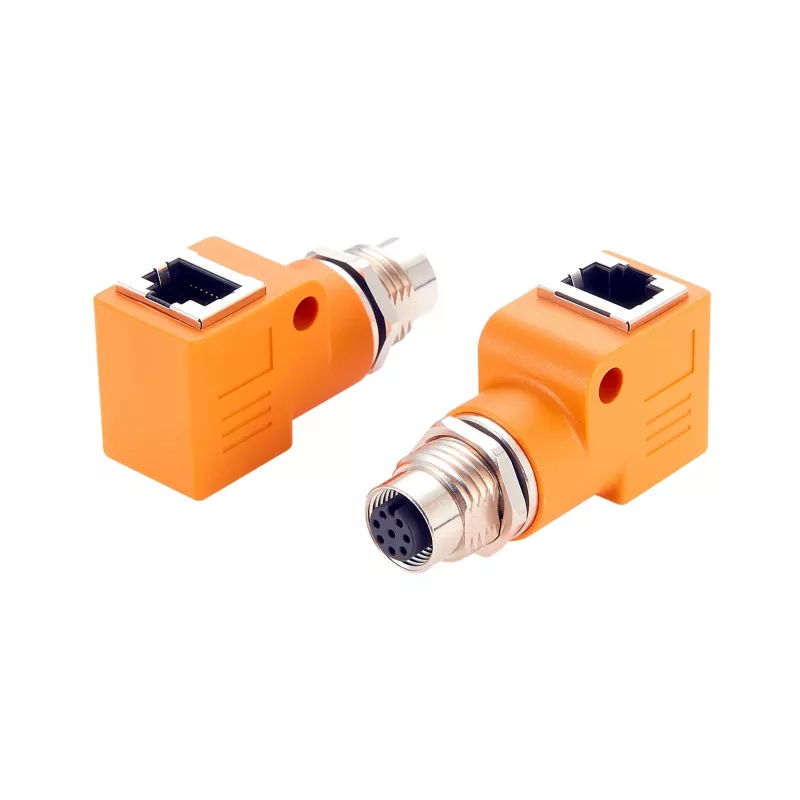

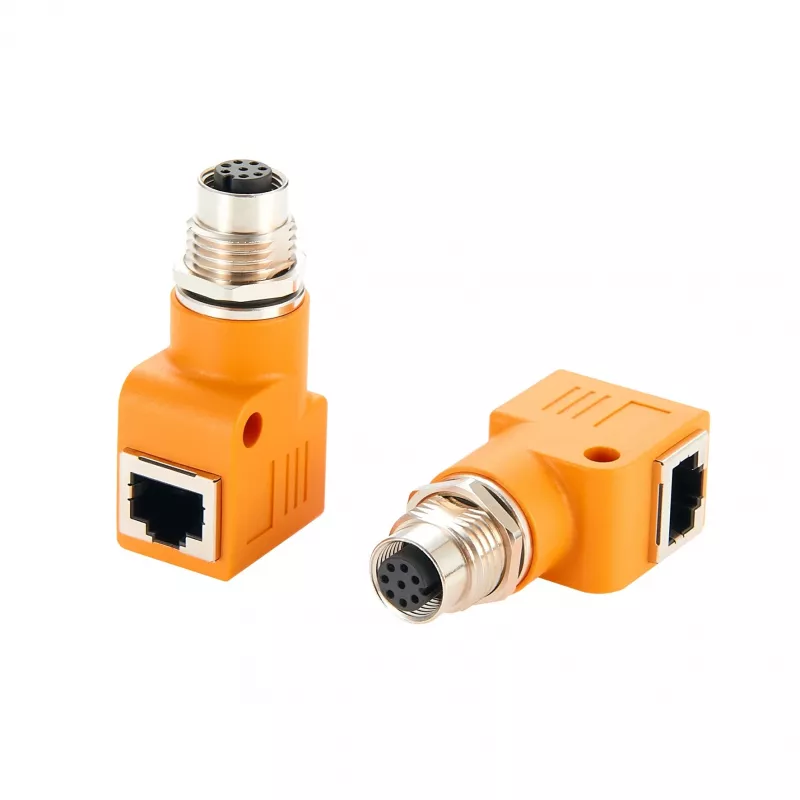

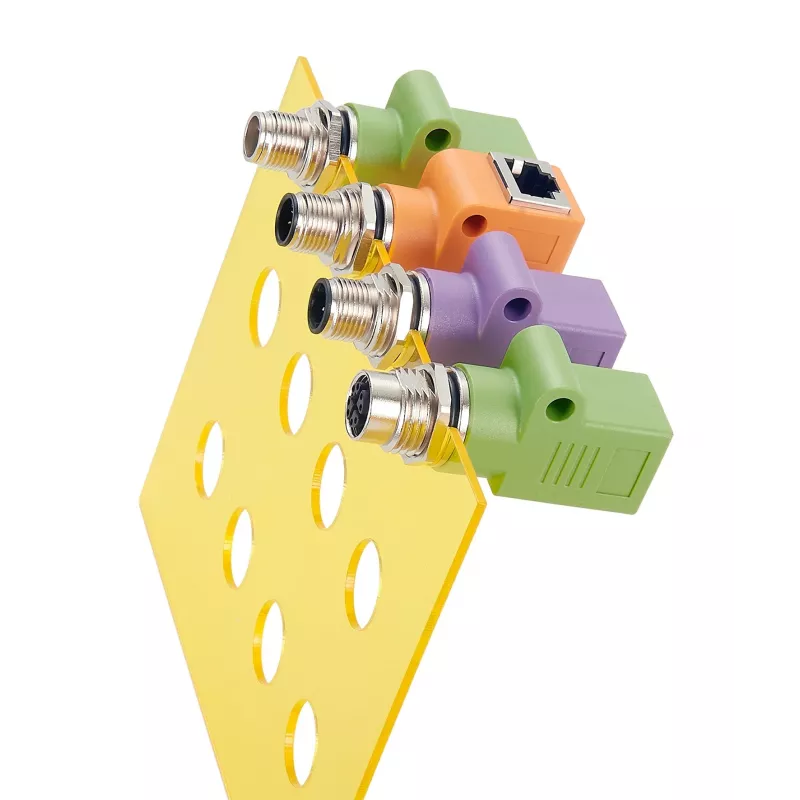

EXSYS M12 codifica A 8 poli connettore femmina a connettore femmina RJ45 adattatore 90° EX-49503

Industrial Ethernet adapter with M12 A-coded 8-pin female connector to RJ45 female 90° angled connector. Provides reliable connectivity for industrial automation and machine vision applications, supporting data rates up to 100 Mbps.

Advantages

Robust metal housing with nickel-plated brass and PBT construction ensures durability in harsh environments. Shielded design protects signal integrity, while the 90° angled RJ45 connector saves space in tight installations.

Suitable for

• Industrial Ethernet networks
• Machine vision systems
• Process control equipment
• Harsh environment connectivity

Key specifications

• Connector 1: M12 A-coded, 8-pin, female
• Connector 2: RJ45, female, 90° angled
• Data transfer rate: up to 100 Mbps
• Shielding: shielded
• Housing material: metal (nickel-plated brass) / PBT
• IP protection rating: IP67
• Operating temperature range: -25°C to +85°C
• Mounting type: inline adapter
• Electrical standard: TIA/EIA-568B
• Colour: black / silver

Recommendations

Ideal for connecting industrial devices with M12 A-coded ports to standard RJ45 Ethernet infrastructure. Ensure proper sealing to maintain IP67 rating in wet or dusty environments.
