Extender AV Vivolink VL120016 trasmettitore e ricevitore AV nero

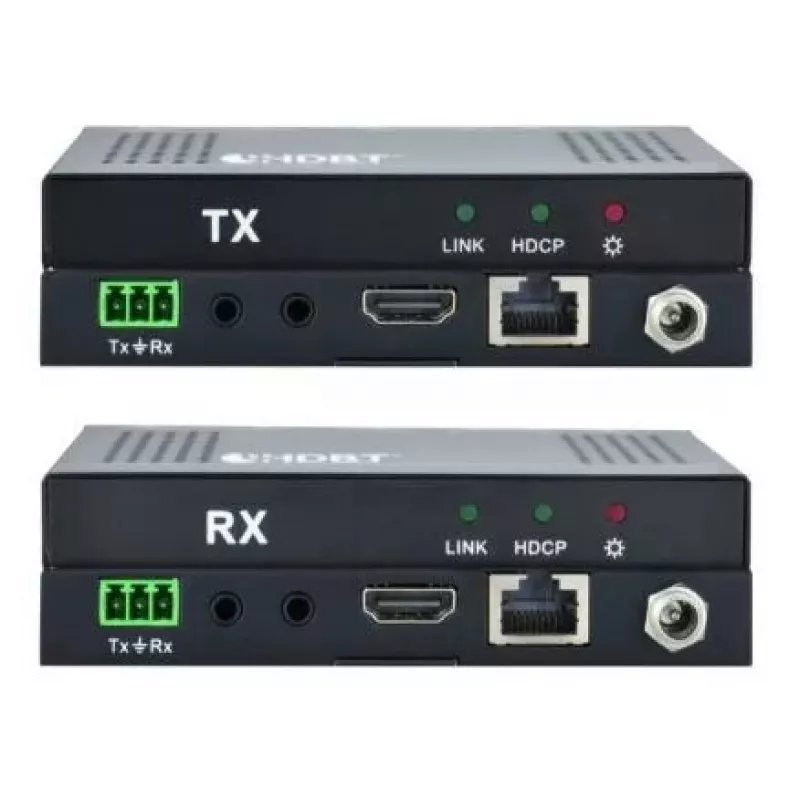

The VivoLink VL120016 is a compact HDBaseT extender kit comprising a transmitter (VL120016T) and a receiver (VL120016R). It enables wired AV distribution over a single CAT5e/6 cable, supporting 1080p up to 70 m (230 ft) and 4K/1080p up to 40 m (131 ft). The set supports CEC, bidirectional RS-232 and IR control, and includes a one-way PoH (Power over HDBaseT) function. The units operate from 24 V and the integrated power supply accepts 100–240 V AC at 50–60 Hz, while the compact dimensions simplify installation in confined spaces.

Advantages

The VL120016 kit provides reliable long-distance AV transmission using standard Cat5e/6 cabling, reducing the need for expensive fiber or HDMI runs. Its support for RS-232, IR and CEC allows remote control and integration with control systems. The mini-size form factor and universal AC input make the extender set suitable for diverse installations and easy to mount or conceal.

Suitable for

• Digital signage and video walls in retail or public spaces
• Meeting rooms and conference installations
• Classroom AV distribution and lecture halls
• Home cinema and long HDMI runs in residential setups

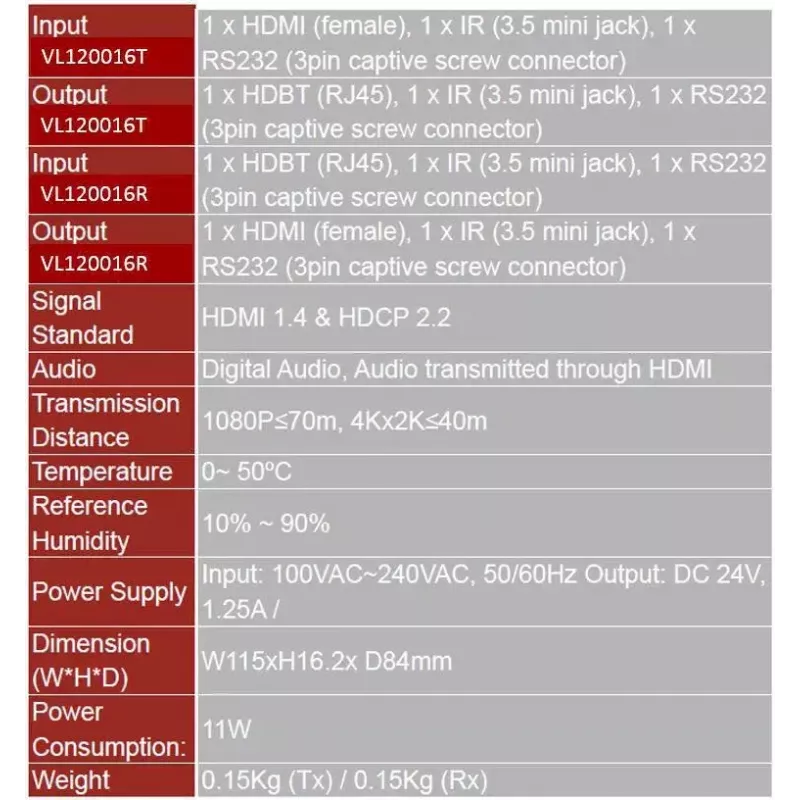

Key specifications

• Model: VivoLink VL120016 (transmitter VL120016T + receiver VL120016R)
• Transmission standard: HDBaseT
• Maximum distance: 1080p up to 70 m (230 ft); 4K/1080p up to 40 m (131 ft) over single CAT5e/6
• Control interfaces: CEC, bidirectional RS-232, bidirectional IR
• Power: operates from 24 V; AC input 100–240 V, 50–60 Hz
• Dimensions (kit units): 184 x 160 x 129 mm
• MPN: VL120016, EAN: 5712505765043

How to use

Install the transmitter near the source device and the receiver near the display. Connect source and display with HDMI cables to the transmitter and receiver respectively, then link the two units with a single CAT5e/6 cable of appropriate length. Connect the power supply to the transmitter or receiver according to the system design and, if using PoH, power can be provided over the HDBaseT link where supported. Configure RS-232, IR or CEC settings as required by your control system to enable remote commands.

Recommendations

For best results, use high-quality shielded Cat6 cables for longer runs and avoid routing the cable near high-voltage power lines or strong EMI sources. Verify cable terminations and HDMI versions on source and display to ensure expected resolution and control compatibility.
