Extender AV Vivolink VLHDMIEXT60 60m HDMI 4K 60Hz

The Vivolink VLHDMIEXT60 is a compact HDMI signal extender designed for professional AV installations. It transmits HDMI video up to 60 m over a single CAT5e/6 cable, supports 4K@60Hz and 1080p resolutions, and is compliant with HDCP 2.2 and HDCP 1.4. Its small form factor and Power over Cable (PoC) capability simplify installation in meeting rooms, conference halls, digital signage and other professional environments.

Advantages

The extender delivers high-quality 4K2K or 1080p signals over long distances without requiring multiple cables. PoC (Power over Cable) reduces the need for separate power supplies, simplifying wiring and installation. Compliance with HDMI 2.0b and HDCP 2.2/1.4 ensures broad compatibility with modern sources and displays. Its ultra-compact design allows flexible placement in tight or concealed locations.

Suitable for

• Meeting rooms and conference halls
• Corporate AV installations
• Digital signage and retail displays
• Home theaters and residential AV setups

Key specifications

• Model: Vivolink VLHDMIEXT60
• Transmission distance: up to 60 m over single CAT5e/6 cable
• Video support: 4K@60Hz (4:4:4) and 1080p
• HDMI standard: HDMI 2.0b compliant
• HDCP: HDCP 2.2 and HDCP 1.4 compliant
• Power: Bi-directional Power over Cable (PoC) supported

How to use

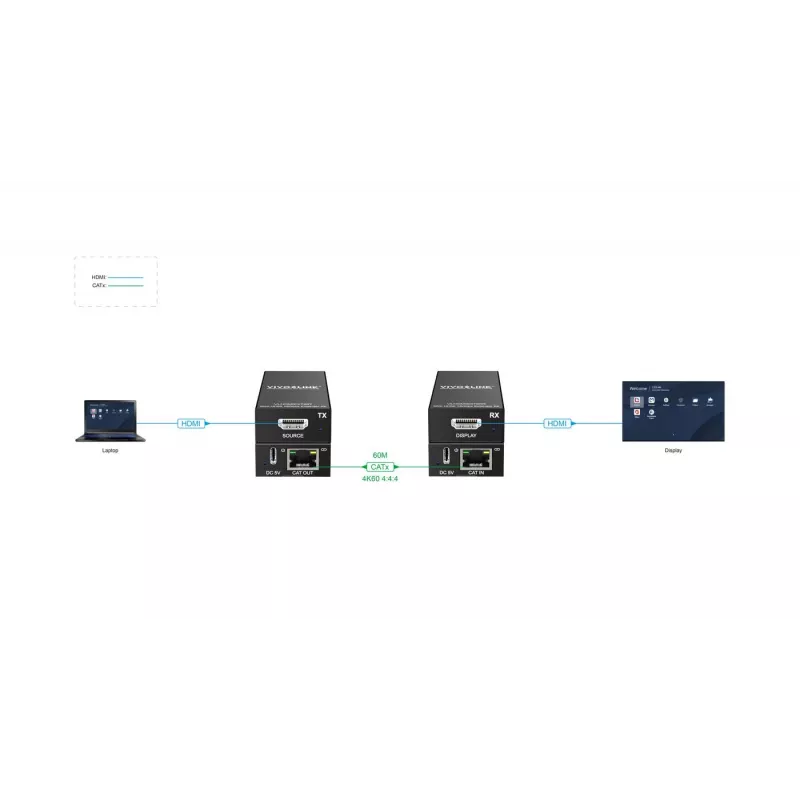

Connect the transmitter to the HDMI source (PC, media player, etc.) and the receiver to the display. Link transmitter and receiver with a single CAT5e/6 cable up to 60 m. If required, use the PoC function so only one unit needs external power; otherwise provide power to the appropriate unit per installation needs. Configure source and display resolutions as needed; the unit supports HDMI 2.0 features and will pass EDID/HDCP information between devices.

Recommendations

For best performance use high-quality CAT6 cable and keep cable runs away from strong electromagnetic interference sources. Verify source and display HDCP and resolution settings when troubleshooting image or handshake issues.
