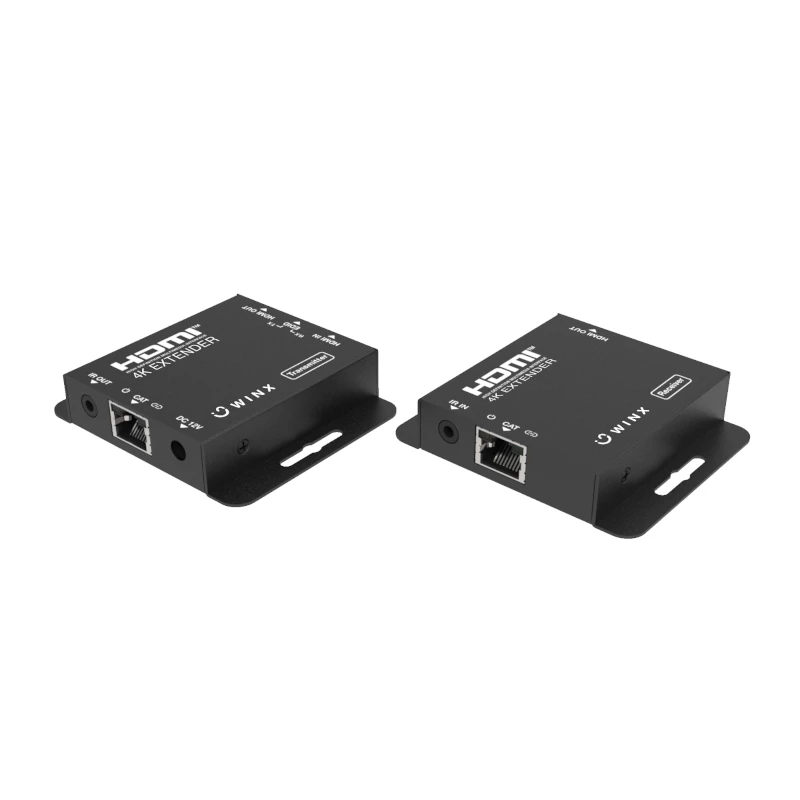

WINX LINK FAR Extender HDMI 4K

The WINX LINK FAR 4K HDMI Extender lets you duplicate your viewing on a second display up to 70 metres away, whether a second TV, monitor or projector. It requires only a single power source for both the transmitter and receiver, and supports infrared (IR) remote control so you can control the connected device at either display. The extender delivers uncompressed long-distance transmission with zero delays, and supports 4K (Ultra HD) up to 40 metres and 1080P (Full HD) up to 70 metres. A high-quality solid-core copper cable is required for correct operation.

Key features

• Duplicate HDMI signal (video + audio) on a second display up to 70m away, with HDMI loop out
• Control your remote devices via an infrared (IR) remote control
• Only a single power source required for both transmitter and receiver
• Easy to install with CAT5E/CAT6 copper cable
• Supports 4K (Ultra HD) up to 40m away, and 1080P (Full HD) up to 70m

Specifications

• Brand: WINX
• MPN: WX-AV101
• HDMI Compliance: HDMI 1.4
• HDCP Compliance: HDCP 1.4
• Video Bandwidth: 10.2Gbps
• Video Resolution: Up to 4K@30Hz (0 - 40m), 1080P (0 - 70m)
• Audio Support: Up to 7.1CH HD audio

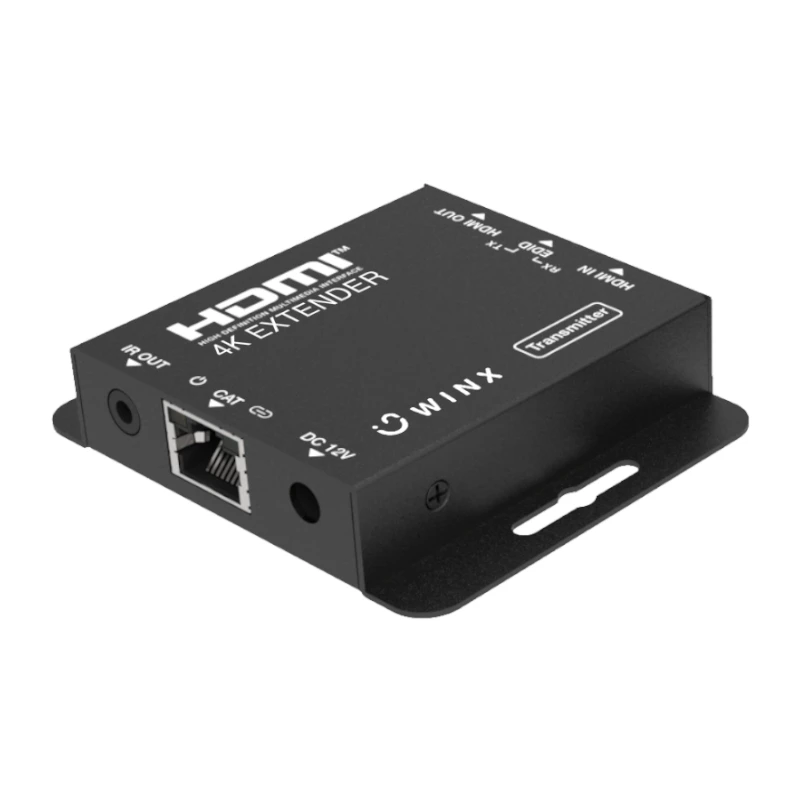

• Transmitter Input: 1 x HDMI Type A [19-pin female]
• Transmitter Output: 1 x HDMI Type A [19-pin female], 1 x IR OUT [3.5mm Stereo Mini-jack], 1 x CAT OUT [RJ45, 8-pin female]

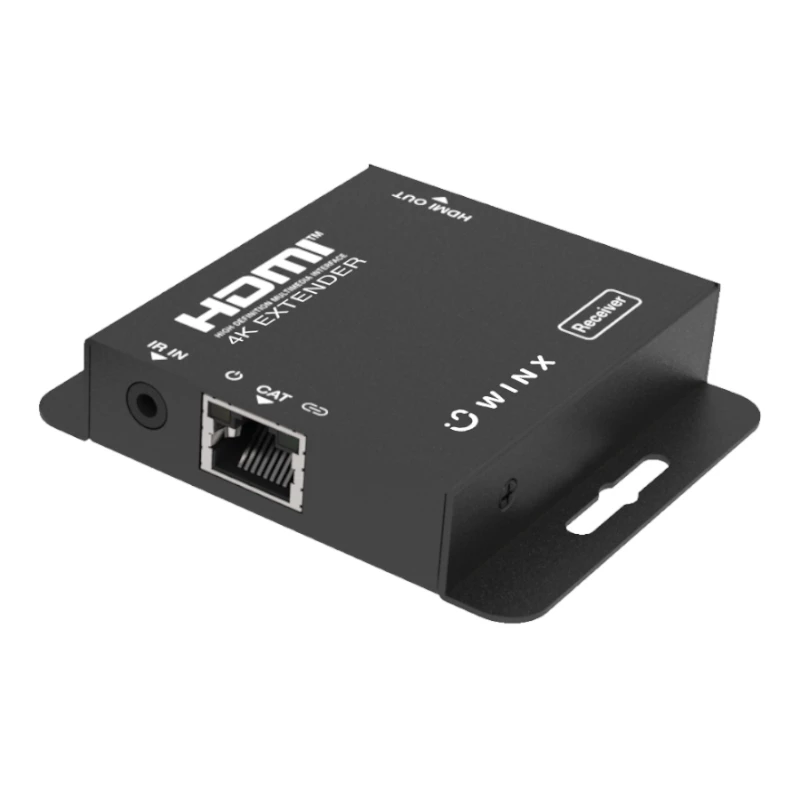

• Receiver Inputs: 1 x IR IN [3.5mm Stereo Mini-jack], 1 x CAT IN [RJ45, 8-pin female]
• Receiver Output: 1 x HDMI Type A [19-pin female]
• Housing: Metal Enclosure
• Colour: Black
• Power Supply: 12V/1A DC
• Power Consumption: Transmitter: 1.86W, Receiver: 0.87W
• Product Dimensions: 7.9 x 6.9 x 1.7 cm
• Weight: Transmitter: 132g, Receiver: 130g
