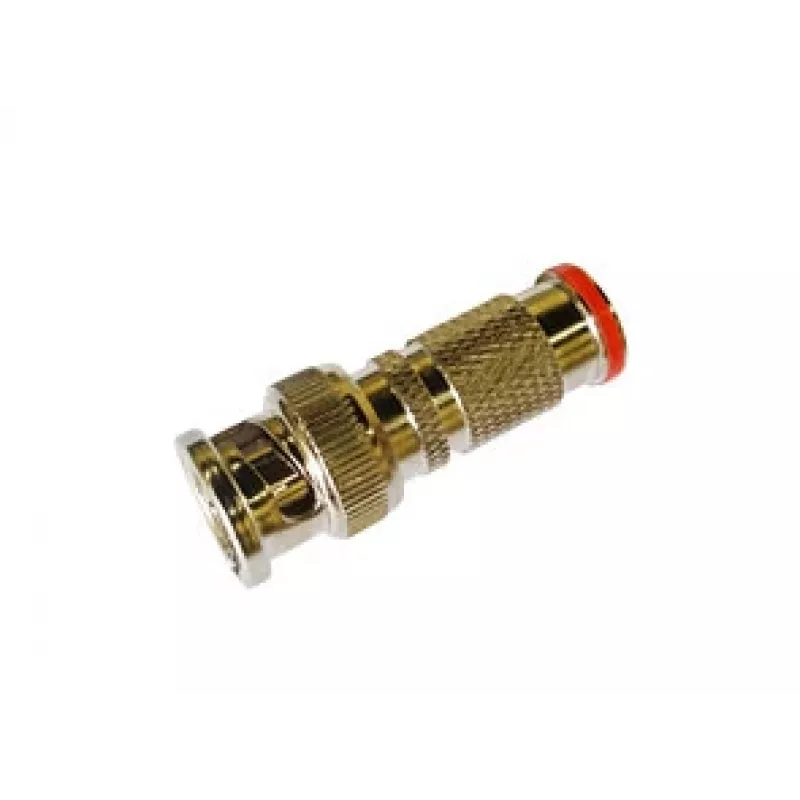

EXTRA DIGITAL connettore maschio BNC a compressione per cavo coassiale RG59, confezione da 10

Installers and technicians working on CCTV or professional video systems often reach for these compression BNC connectors when terminating RG59 coaxial cable. The 10-piece pack from EXTRA DIGITAL provides a reliable, weather-resistant connection for surveillance cameras, security DVRs, and broadcast equipment. Each connector features a nickel-plated brass body, gold-plated center pin, and PTFE dielectric, ensuring consistent 75 Ohm impedance and minimal signal loss across the DC to 3 GHz frequency range.

Key specifications

• Connector type: BNC male
• Compatible cable: RG59 coaxial
• Connection method: Compression (requires BNC compression tool)
• Impedance: 75 Ohm
• Frequency range: DC to 3 GHz
• Return loss: >20 dB up to 1 GHz
• Insertion loss: <0.1 dB up to 1 GHz
• Body material: Brass, nickel-plated
• Center pin: Gold-plated
• Dielectric: PTFE
• Operating temperature: -20°C to +70°C
• Mating cycles: 500
• Pack size: 10 pieces
• RoHS compliant

Why choose it

Compression connectors outperform crimp or twist-on types by creating a permanent, moisture-resistant seal that maintains cable integrity. The gold-plated center pin resists corrosion, while the PTFE dielectric ensures stable performance over time. With a return loss better than 20 dB up to 1 GHz, these connectors preserve signal quality in high-resolution video systems.

Ideal use cases

• Terminating RG59 cables for CCTV cameras and DVRs
• Professional video and broadcast installations
• Security system upgrades and maintenance
• Any application requiring reliable 75 Ohm connections

Good to know

A compression tool is required for installation. The connectors are compatible with RG59 cables having a dielectric diameter of approximately 3.7 mm and an outer jacket diameter of approximately 6.15 mm. The nickel-plated brass body offers durability and corrosion resistance, making these connectors suitable for both indoor and outdoor use.
