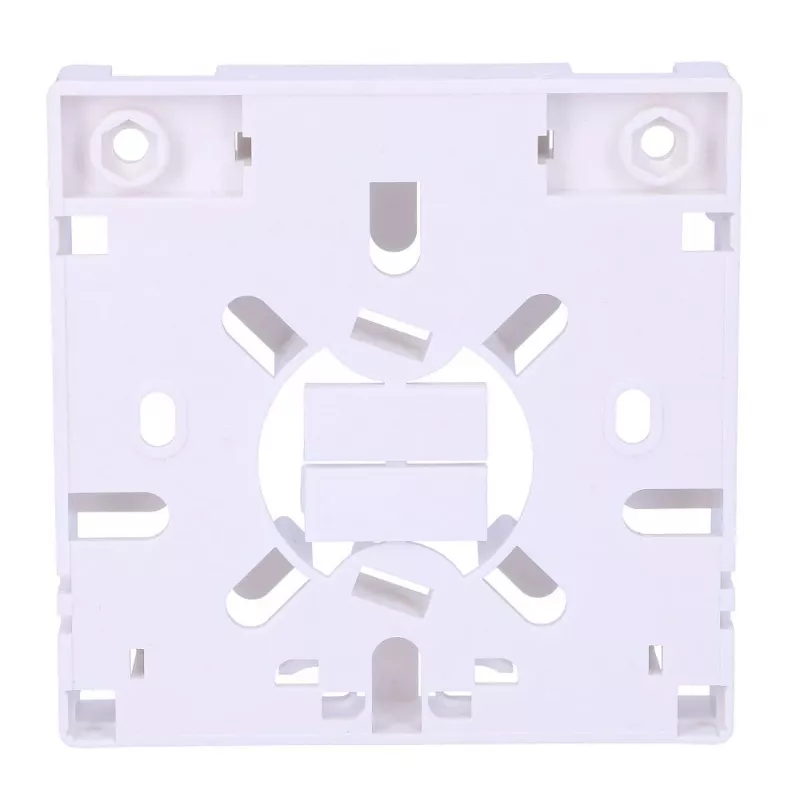

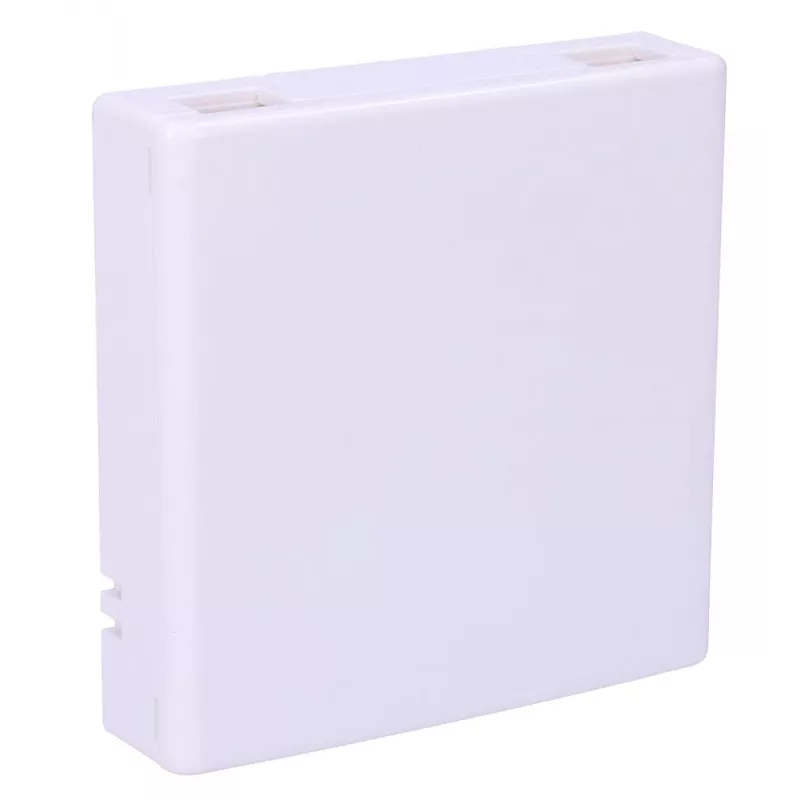

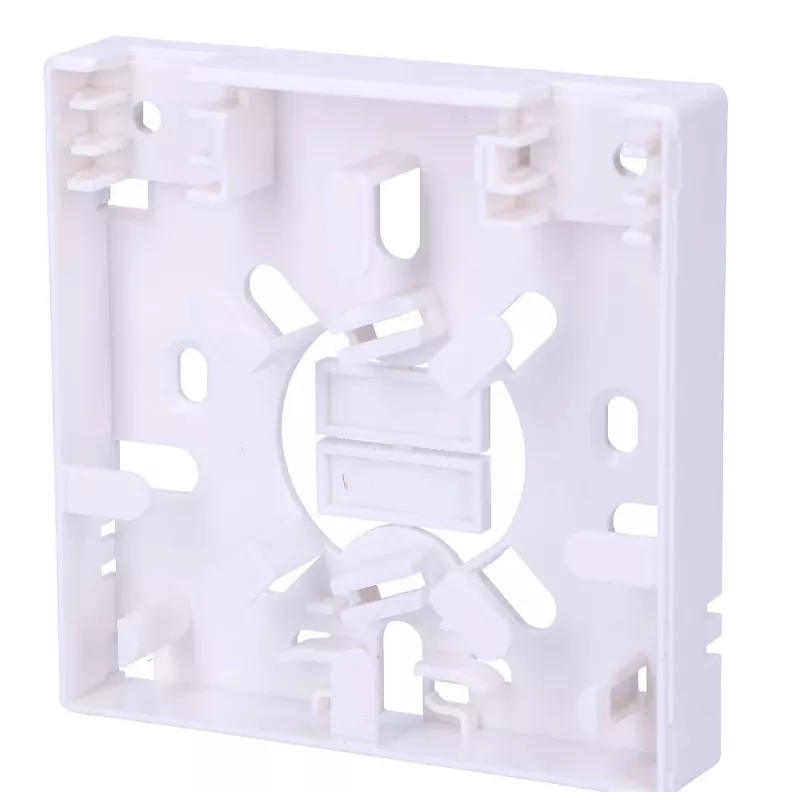

Extralink Agnes scatola in fibra ottica, 2 giunzioni

The Extralink Agnes Fiber Optic Box is a compact wall-mounted termination box designed for FTTH and FTTD applications. It supports up to 2 fibers and 2 splices, making it ideal for small-scale fiber optic installations in residential or office environments.

Advantages

Easy to install with included mounting hardware, compact ABS plastic housing, and integrated splice tray for organized fiber management. Compatible with SC simplex and LC duplex adapters.

Suitable for

• Fiber to the Home (FTTH) installations
• Fiber to the Desk (FTTD) connections
• Indoor wall-mounted termination points

Key specifications

• Product Type: Fiber Optic Termination Box
• Fiber Capacity: 2 Fibers
• Splice Capacity: 2 Splices (Fusion or Mechanical)
• Adapter Slots: 2
• Compatible Adapter Type: SC Simplex, LC Duplex
• Material: ABS Plastic
• Color: White
• IP Rating: IP20
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -25°C to +60°C
• Humidity: 5% to 95% (non-condensing)
• Cable Entry Ports: 3 (2 side, 1 bottom)
• Max Drop Cable Diameter: 3 mm
• Integrated Splice Tray: Yes

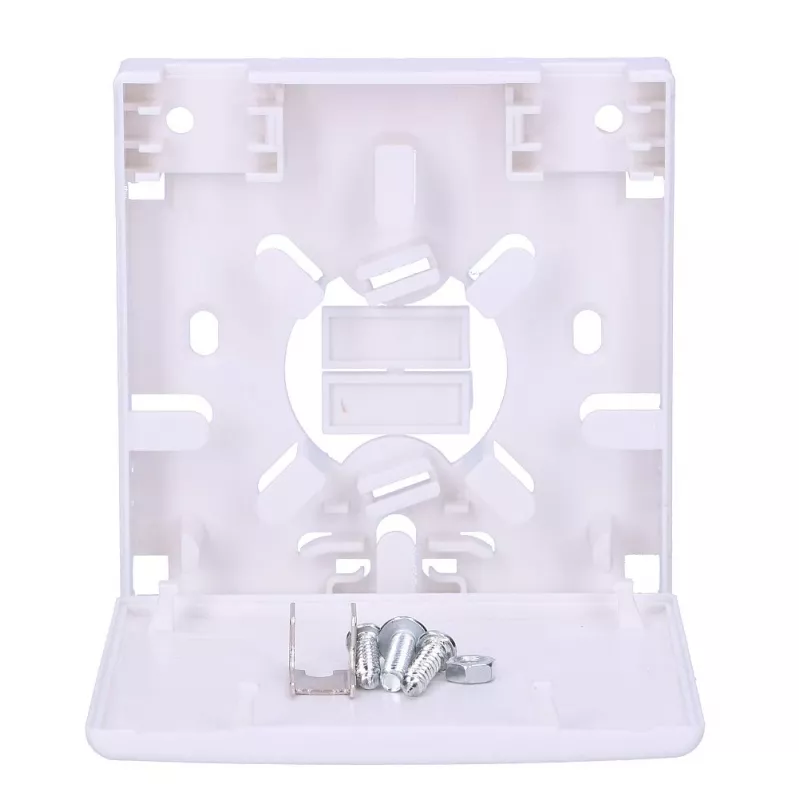

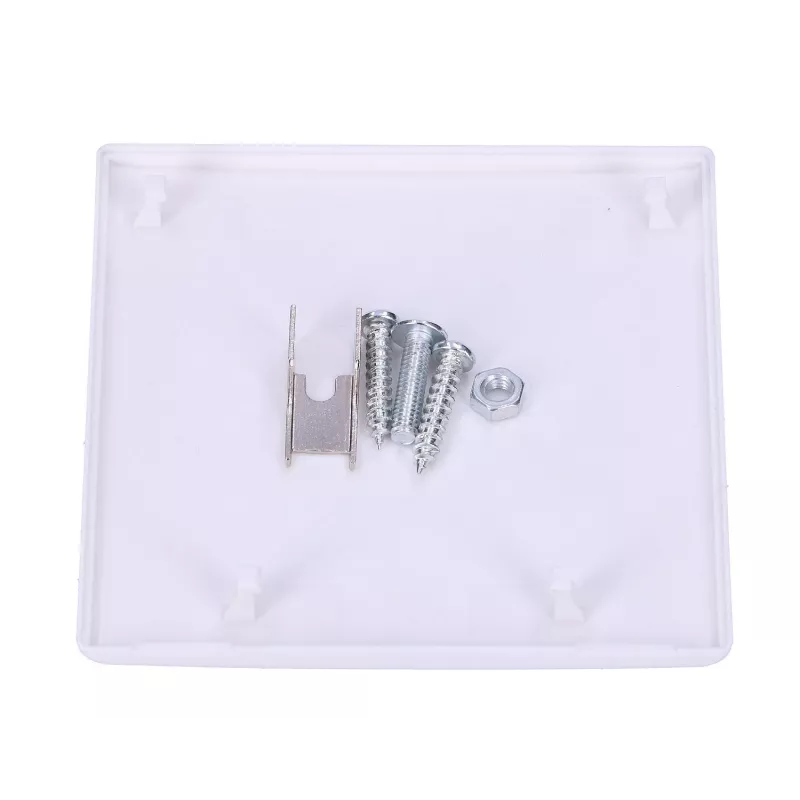

• Mounting Hardware Included: Yes

Recommendations

For optimal performance, use with SC or LC connectors and ensure proper cable management. Suitable for indoor use only.
