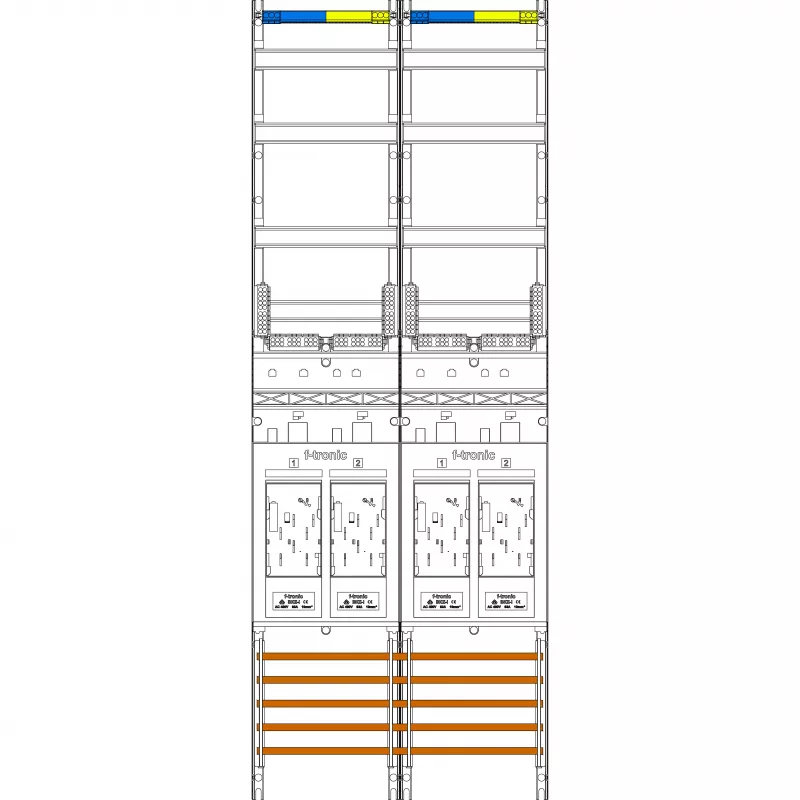

f-tronic quadro contatori 2 campi E219 H=1350mm 4-eHZ 7143016

This meter field stands out with its integrated APZ field for smart meter gateways and a 5-pole 250 A busbar system, making it ready for modern metering infrastructure in residential and commercial installations.

Highlights

• 2-field design with 4 eHZ meter positions
• Integrated APZ field for smart meter gateway
• 5-pole busbar system rated 250 A
• 3 distribution rows for circuit breakers and RCDs
• Quick-connect terminals for efficient wiring

In daily use

The f-tronic meter field is built for universal distribution cabinets, with pre-punched knockouts for cable entry and partial pre-wiring for busbar and meter connections. Its galvanized, powder-coated sheet steel construction ensures durability, and the main switch position accommodates an SH-switch for safe isolation.

Full specifications

• Number of fields: 2
• Meter positions: 4 (for eHZ meters)
• Height: 1350 mm
• Width: 500 mm
• Depth: 160 mm
• Meter type compatibility: Electronic Household Meter (eHZ)
• Busbar system: 5-pole, 250 A
• Distribution rows: 3
• Main switch position: Yes (for SH-switch)
• Connection technology: Quick-connect terminals
• Material: Galvanized sheet steel, powder-coated
• Rated current (application): Up to 63 A
• Cable entry: Pre-punched knockouts
• Pre-wiring: Partially pre-wired for busbar and meter connections

Final note

Designed for reliable metering in modern electrical installations, this field combines flexibility with robust construction.
