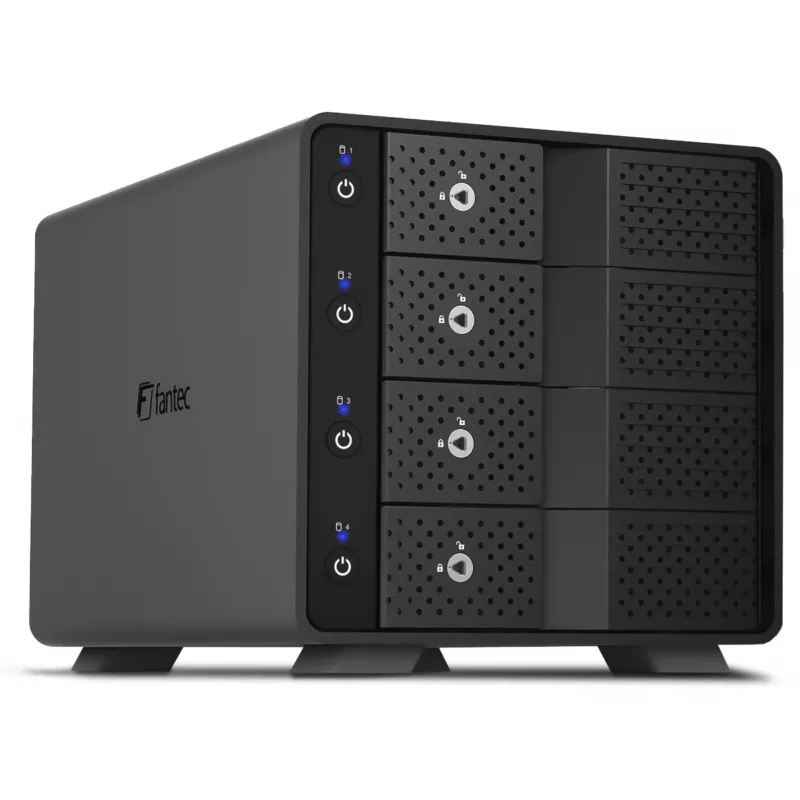

Fantec MB-X4U31 Case per hard disk SATA 3,5" 4 vani USB 3.2 Gen 2 Type-C (2528)

The Fantec MB-X4U31 is a high-performance 4-bay hard drive enclosure designed for 3.5-inch SATA drives. Featuring a USB 3.2 Gen 2 Type-C interface with transfer speeds up to 10 Gbit/s, it supports multiple RAID modes including RAID 0, 1, 3, 5, 10, JBOD, and Single. The aluminum housing ensures durability and efficient heat dissipation, while an 80mm temperature-controlled fan keeps drives cool. Hot-swap support and tool-free installation make drive management effortless. Compatible with Windows, macOS, and Linux, this enclosure is ideal for professionals seeking reliable external storage.

Advantages

High-speed USB 3.2 Gen 2 connectivity with up to 10 Gbit/s data transfer. Versatile RAID support for data redundancy or performance. Hot-swappable drive bays for easy maintenance. Tool-free installation saves time. Sturdy aluminum construction with effective cooling.

Suitable for

• Creative professionals needing fast external storage for large media files
• IT administrators requiring RAID configurations for backup or data protection
• Home users expanding storage capacity with multiple drives

Key specifications

• Number of Drive Bays: 4
• Compatible Drive Size: 3.5 inches
• Compatible Drive Interface: SATA I/II/III (SATA 6Gb/s)
• Host Interface: USB 3.1 Gen 2 (USB 3.2 Gen 2) Type-C
• Max Data Transfer Rate: 10 Gbit/s
• Supported RAID Modes: RAID 0, RAID 1, RAID 3, RAID 5, RAID 10, JBOD, Single
• Max Drive Capacity (per bay): Up to 18 TB
• Hot-Swap Support: Yes
• UASP Support: Yes
• Enclosure Material: Aluminum
• Cooling System: 80mm temperature-controlled fan
• Power Supply: External AC Adapter (Input: 100-240V, Output: 12V)
• Operating System Compatibility: Windows, macOS, Linux
• LED Indicators: Power, HDD activity, RAID status
• Security Features: Kensington Lock slot
• Installation: Tool-free drive installation
• Connectivity: USB-C to USB-A cable included
• Features: Plug & Play

Recommendations

For optimal performance, use with SSDs or high-speed HDDs. Ensure your system supports USB 3.2 Gen 2 for maximum transfer speeds. The enclosure is compatible with drives up to 18 TB per bay.
