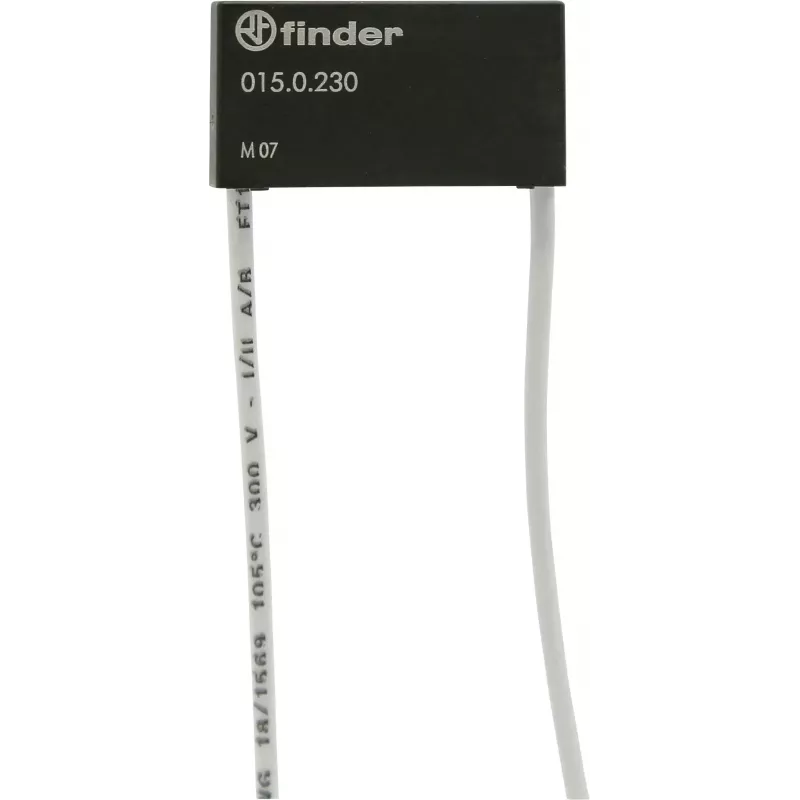

Finder 015.0.230 Modulo di soppressione corrente residua per relè della serie 15

The Finder 015.0.230 stands apart from generic suppressor modules by being purpose-built for Series 15 relays, effectively eliminating residual current issues that cause flickering or false switching in sensitive loads such as LEDs and energy-saving lamps. Its 230 V AC operating voltage and 50/60 Hz compatibility make it a reliable in-line solution for modern electrical installations.

Highlights

• Suppresses residual currents to prevent nuisance switching
• Designed for Finder Series 15 relays (15.11, 15.51, 15.81, 15.91)
• Simple 2-wire parallel connection
• Wide operating temperature range: -40 to +70 °C
• Self-extinguishing thermoplastic housing

In daily use

Installed in parallel with the load, this module reduces the effects of leakage currents, ensuring stable operation of lighting and other sensitive equipment. Its compact in-line design allows for discreet mounting without the need for DIN rail, and it performs reliably across a broad temperature spectrum, from cold storage to hot industrial environments.

Full specifications

• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Connection: 2-wire
• Mounting: In-line wiring (parallel to load)
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C
• Housing material: Self-extinguishing thermoplastic
• Protection degree: IP20
• Certifications: CE, RoHS

Final note

Engineered for compatibility with Finder Series 15 relays, this module is a targeted solution for residual current suppression in demanding electrical circuits.
