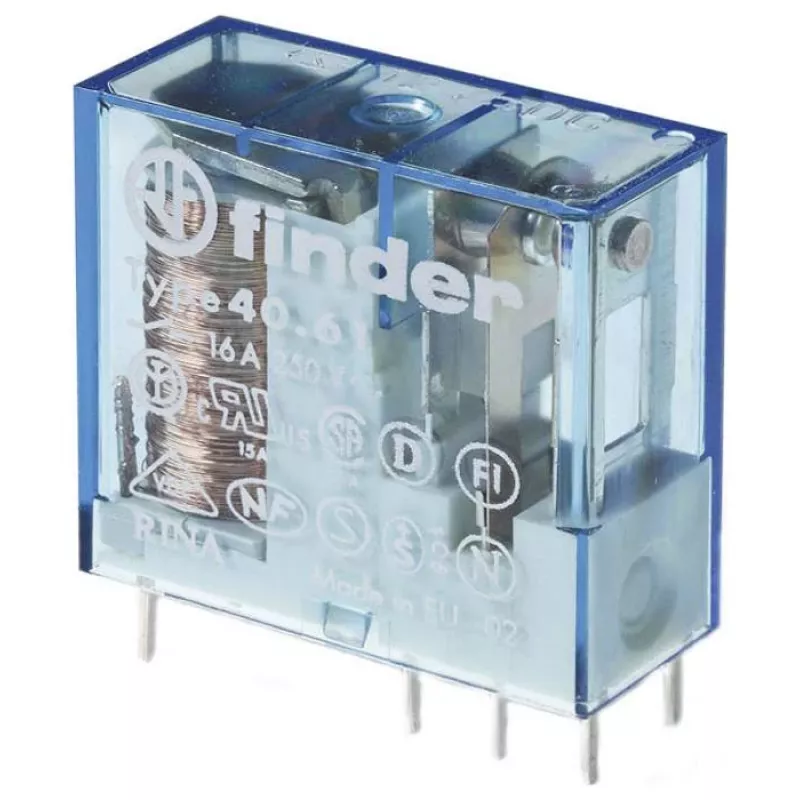

Finder 40.61.9.024.1300 Relè PCB in miniatura 24V DC 16A 1NO

In industrial control panels and automation systems, the Finder 40.61.9.024.1300 miniature PCB relay provides reliable switching of loads up to 16 A. Its 24 V DC coil and compact through-hole design make it suitable for printed circuit boards in machinery, HVAC equipment, and power distribution modules.

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: 1 NO (SPST-NO)
• Rated current: 16 A
• Max switching voltage: 400 V AC
• Contact material: AgNi
• Mounting: PCB through-hole
• Operating temperature: -40 to +85 °C

Why choose it

This relay handles high inrush currents and offers a flux-proof construction, protecting the contacts from contamination during soldering and cleaning. Its low coil power of 0.5 W reduces heat generation, while the 5-pin layout simplifies PCB routing.

Ideal use cases

• Switching resistive and inductive loads in automation controllers
• Controlling motors, valves, and heating elements
• Interface between PLC outputs and high-power circuits

Good to know

The relay has a dielectric strength of 5000 V AC between coil and contacts, ensuring safe isolation. It is part of the Finder 40 series, known for consistent performance in demanding environments.
