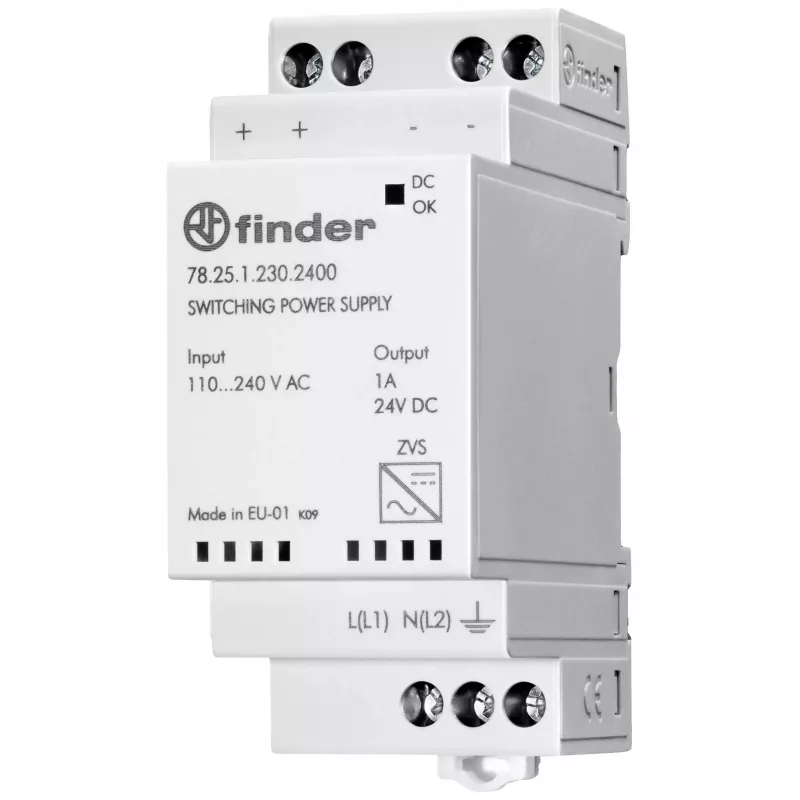

Finder 78.25.1.230.2400 Alimentatore da guida DIN 24 V DC 1 A 25 W

Control panel builders and machine integrators use the Finder 78.25.1.230.2400 to power sensors, controllers, and other 24 V DC devices directly from a DIN rail. It converts 100-240 V AC mains input to a regulated 24 V DC output at 1 A, delivering 25 W in a compact, self-extinguishing plastic housing.

Key specifications

• Input voltage: 100-240 V AC
• Output voltage: 24 V DC
• Output current: 1 A
• Output power: 25 W
• Mounting: DIN rail TS 35 mm
• Efficiency: >85%
• Operating temperature: -20 to +70 °C
• Connection: screw terminals
• Protection: short circuit, overload, overvoltage, overtemperature
• Housing material: self-extinguishing plastic
• Cooling: natural convection
• Ripple and noise: <100 mVp-p

Why choose it

This power supply is built for industrial environments, with a wide operating temperature range and robust protection features. Its DIN rail mounting simplifies installation in control cabinets, and the screw terminals ensure secure wiring.

Ideal use cases

• Industrial automation and control systems
• Building automation and HVAC controls
• Powering sensors, relays, and PLCs
• Machine building and panel shops

Good to know

The unit operates with natural convection cooling, so no fan is required. It is suitable for use in Class II installations.
