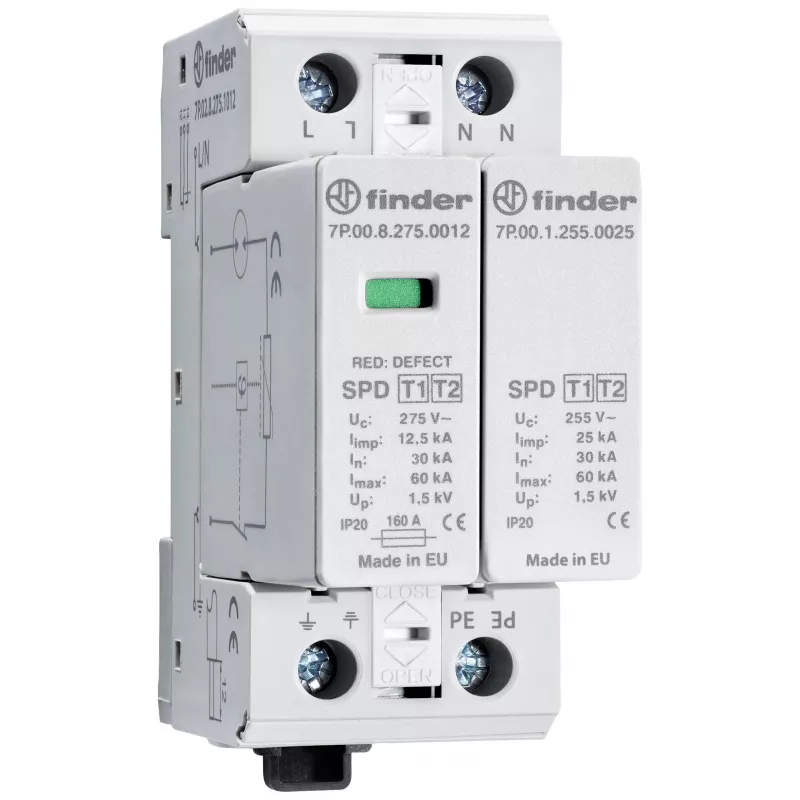

Finder 7P.02.8.275.1012 scaricatore di sovratensione Type 2, 1 polo, 275 V AC, 60 kA, guida DIN

The Finder 7P.02.8.275.1012 stands out as a Type 2 surge protective device engineered for robust transient overvoltage protection in low-voltage installations. With a maximum discharge current of 60 kA and a voltage protection level of ≤1.5 kV, it safeguards sensitive equipment from surge damage. Its compact 1-module DIN rail design and visual status indicator make it a practical choice for distribution boards.

Highlights

• Type 2 surge protection for AC power systems
• High discharge capacity: Imax 60 kA (8/20 µs)
• Low voltage protection level: Up ≤ 1.5 kV
• Visual status indication (green/red)
• Compact 1-module width for DIN rail mounting

In daily use

Installed on a DIN rail, this SPD provides reliable protection against surges caused by indirect lightning strikes or switching operations. The integrated visual indicator allows quick status checks, while the wide terminal capacity (1.5–35 mm²) ensures flexible wiring options. Its thermoplastic housing meets UL 94 V-0 flammability standards, adding an extra layer of safety.

Full specifications

• Product type: Surge Protective Device (SPD)
• SPD type: Type 2
• Nominal voltage (Un): 230 V AC
• Maximum continuous operating voltage (Uc): 275 V AC
• Nominal discharge current (In): 20 kA (8/20 µs)
• Maximum discharge current (Imax): 60 kA (8/20 µs)
• Voltage protection level (Up): ≤ 1.5 kV
• Number of poles: 1
• Mounting type: DIN rail
• Signaling: Visual (green/red)
• Remote signaling: No
• Operating temperature range: -40 to +80 °C
• Protection degree: IP20
• Technology: MOV (Metal Oxide Varistor)
• Response time: < 25 ns
• Terminal capacity: 1.5 - 35 mm²
• Housing material: Thermoplastic, UL 94 V-0
• Module width: 1 module (17.5 mm)
• Short-circuit withstand capability (Isccr): 50 kA

Final note

Engineered for dependable surge suppression, the Finder 7P.02.8.275.1012 combines high discharge capability with a compact footprint, making it suitable for a wide range of electrical distribution applications.
