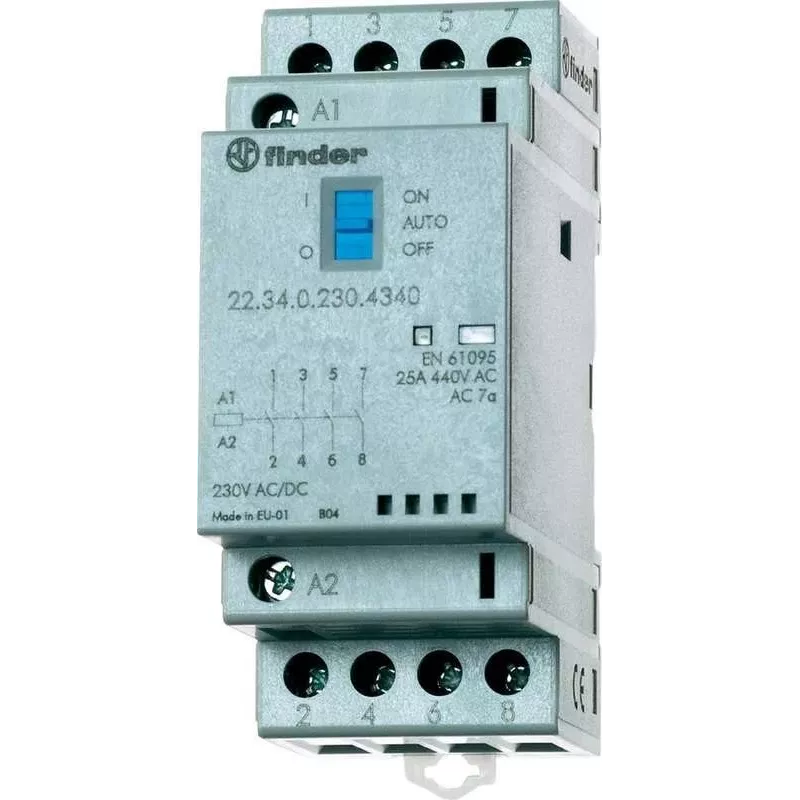

Finder Contattore modulare 230V AC/DC 4NO 25A LED 22.34.0.230.4340

With a rated current of 25 A in AC-1 and 9 A in AC-3, this modular contactor handles demanding switching tasks in a compact 2-module DIN rail housing.

Overview

The Finder 22.34.0.230.4340 is a modular contactor with a 230V AC/DC coil and four normally open contacts. It is designed for DIN rail mounting and features an LED indicator for status monitoring. The contactor is suitable for a wide range of applications, including lighting, heating, and motor control.

What stands out

• 230V AC/DC coil for flexible control voltage
• 4 normally open contacts
• LED status indicator
• Compact 2-module width (35mm)
• High electrical durability: 100,000 operations (AC-1)

Technical details

• Rated current (AC-1): 25 A
• Rated current (AC-3): 9 A
• Contact configuration: 4 NO
• Coil voltage: 230V AC/DC
• Max switching voltage: 400 V AC
• Max switching power (AC-1): 6.25 kVA
• Coil power consumption (AC): 3.5 VA
• Coil power consumption (DC): 1.5 W
• Mechanical durability: 1,000,000 operations
• Operating temperature range: -40 to +40 °C

Our verdict

A reliable modular contactor for DIN rail applications, offering solid performance and a clear LED indicator in a space-saving design.
