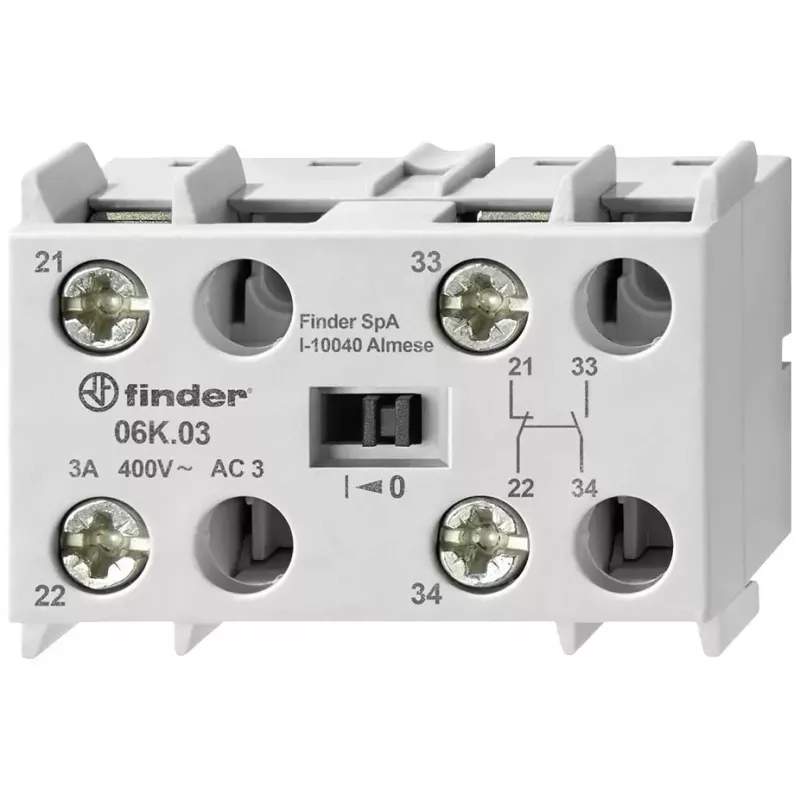

Finder modulo contatto ausiliario per relè di monitoraggio serie 6K.04 (06K.03)

Monitoring relays in the Finder 6K.04 series often need an extra signal contact to report status changes or to switch auxiliary loads. The 06K.03 auxiliary contact module solves this by adding a single changeover contact that mounts directly onto the side of the relay, eliminating the need for separate wiring or additional panel space.

Who is it for

Panel builders, machine integrators, and maintenance technicians who use Finder 6K.04 monitoring relays and require an additional isolated contact for alarms, status indication, or control circuits.

Main features

• Side mounting directly onto 6K.04 series relays
• 1 CO (SPDT) contact configuration
• Rated for 6 A at 250 V AC (AC1)
• Silver nickel (AgNi) contact material for reliable switching
• Screw terminals for secure wiring
• Operating temperature range: -20 to +60 °C

Specifications

• Product type: Auxiliary contact module
• Compatibility: Finder 6K.04 series monitoring relays
• Contact configuration: 1 CO (SPDT)
• Rated current (AC1): 6 A
• Rated voltage (AC1): 250 V AC
• Contact material: AgNi
• Mounting type: Side mounting
• Dielectric strength (open contacts): 1000 V AC
• Insulation voltage: 250 V AC
• Rated impulse withstand voltage (Uimp): 4 kV
• Protection degree: IP20
• Operating temperature range: -20 to +60 °C
• Terminal type: Screw terminals
• Number of poles: 1-pole
• Max switching power (AC1): 1500 VA
• Min switching load: 300 mW (10 V / 10 mA)
• Electrical life (AC1): 100 x 10^3 cycles
• Mechanical life: 10 x 10^6 cycles
• Approvals: CE, cURus

Tips

Ensure the main relay is de-energized before installing the module. The module clips onto the side of the relay; no tools are required. Use appropriate wire sizes for the screw terminals to maintain reliable connections.
