Flip jack Ethernet Cat6 non schermato Lanview LVN128143 — supporto modulo keystone RJ45

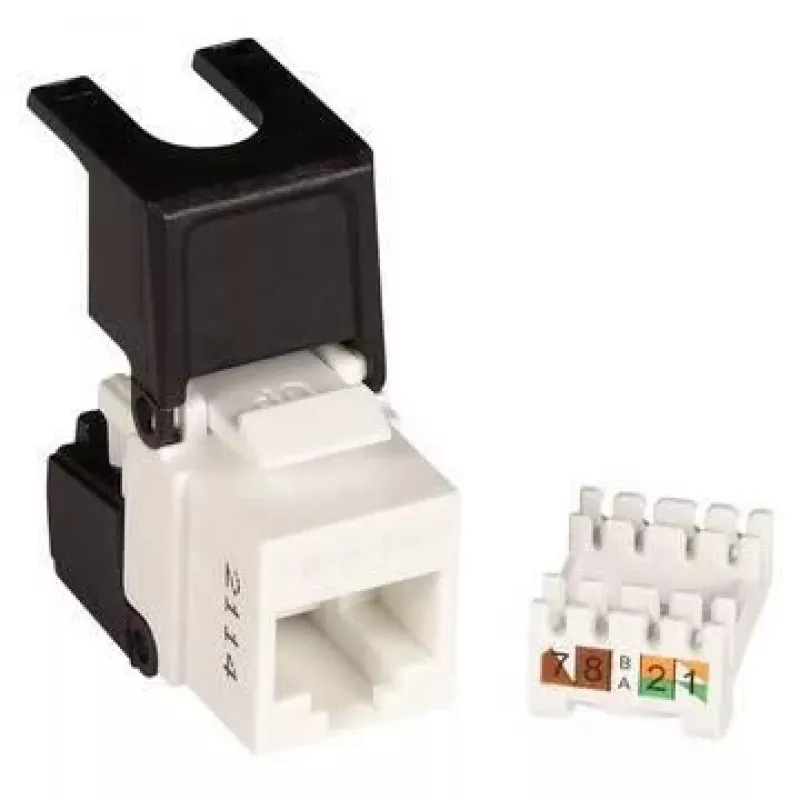

Lanview LVN128143 is an unshielded Cat6 Flip Jack keystone modular RJ45 insert intended for Ethernet network installations. The module supports Cat6 performance for structured cabling and is designed to snap into standard keystone wall plates and patch panels. Its flip-style jack provides convenient access for cable termination while maintaining a compact footprint, making it suitable for office and home LAN setups that require reliable Gigabit connectivity.

Advantages

The unshielded Cat6 construction offers performance consistent with Category 6 cabling requirements, enabling Gigabit Ethernet speeds when installed as part of a compliant system. The keystone form factor allows easy snap-in mounting into standardized faceplates and panels, simplifying installation and maintenance. The flip jack design protects contacts when not in use and presents a user-friendly orientation for terminating or plugging cables.

Suitable for

• Structured Ethernet cabling in offices and homes
• Wall plates and patch panels requiring Cat6 keystone inserts
• Gigabit LAN connections for computers, switches, and access points
• Upgrades from lower category inserts to Cat6 performance

Key specifications

• Connector type: RJ45 keystone modular insert
• Category: Cat6 (unshielded)
• Form factor: Keystone snap-in module compatible with standard plates and panels
• Access style: Flip jack for cable termination and connection
• Intended use: Ethernet LAN installations for Gigabit connectivity

How to use

Insert the Lanview Cat6 keystone module into a compatible wall plate or patch panel until it snaps securely into place. Terminate the incoming Cat6 cable pairs onto the jack’s IDC or punch-down contacts following standard wiring schemes (T568A or T568B) and verify correct pair alignment before securing the cable. After termination, close the flip jack if applicable to protect the contacts; plug in RJ45 patch cords to establish network links and test the connection with appropriate network testers to confirm Gigabit performance.

Recommendations

Use the module with Cat6-rated cables and compatible faceplates or panels. Follow recognized wiring standards (T568A/T568B) and test each link after installation. Avoid using in environments requiring shielded components or where EMI mitigation is necessary, since the module is unshielded.
