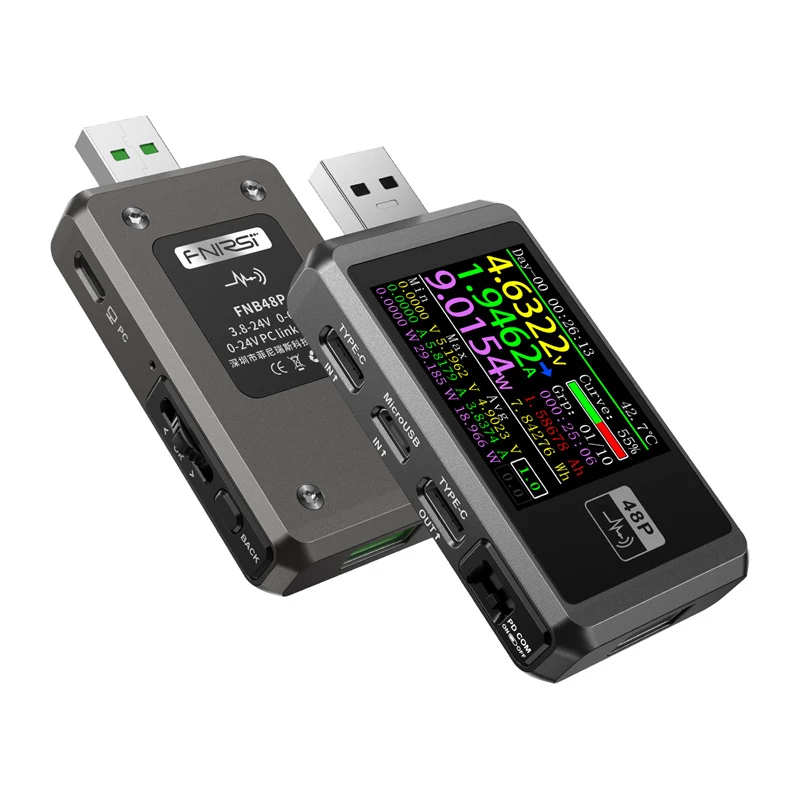

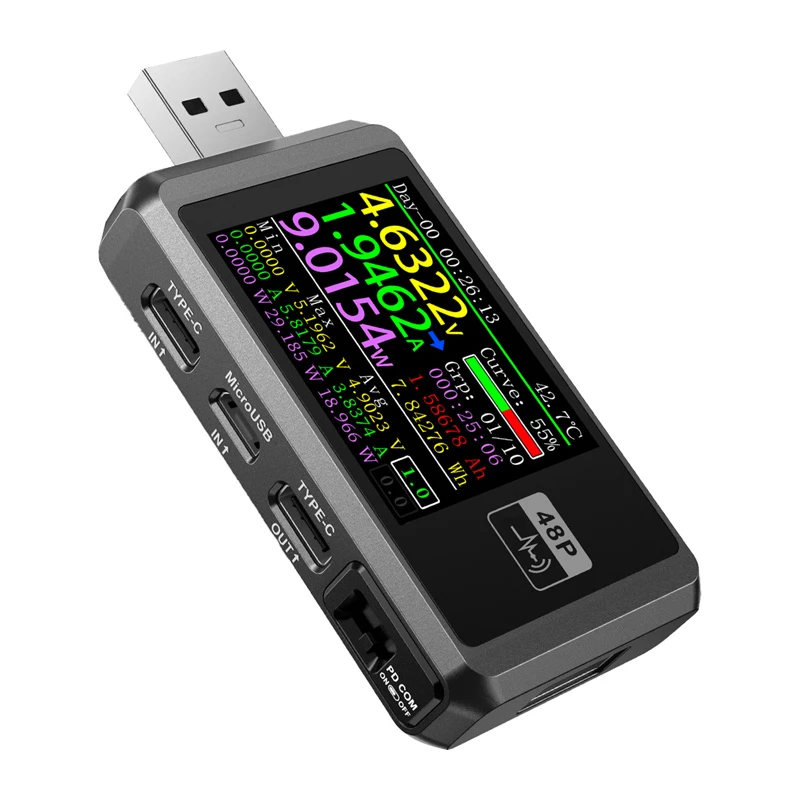

FNIRSI FNB48P tester per porte USB nero

The FNIRSI FNB48P is an advanced USB port tester designed for precise charging process analysis. It supports multiple interfaces and fast charging protocols, operates at high currents, and allows for accurate monitoring of voltage, current, and power. The device features intelligent cable diagnostics, data recording and analysis, clear graphs, and automatic screen orientation.

Key features

• Supports USB-A, USB-C, and Micro USB interfaces
• Operates with a high current of up to 6.5 A
• Recognizes fast charging protocols: Apple 2.4A, QC2.0, QC3.0, USB Power Delivery, Samsung AFC, Huawei FCP and SCP, OPPO VOOC, DASH, WARP, SuperVOOC, PE+ 1.1, PE+ 2.0
• Intelligent cable analysis: PD e-marker detection, DASH cable identification, internal cable resistance measurement
• Maximum resolution of 0.00001
• Six-digit high-precision readout
• 240 MHz operating frequency
• ARM MF processor
• 1.77-inch HD display
• Four graph modes: voltage and current relationship, DD voltage, offline recording, power ripple using AC coupling
• Records up to ten groups of measurement data
• Built-in battery capacity calculation algorithms
• Gravity sensor for automatic 180° rotation, and 360° rotation in simple mode
• CNC-milled metal housing
• PC interface, function buttons, and return key

Specifications

• Brand: Fnirsi
• MPN: FNB48P
• Product colour: Black
