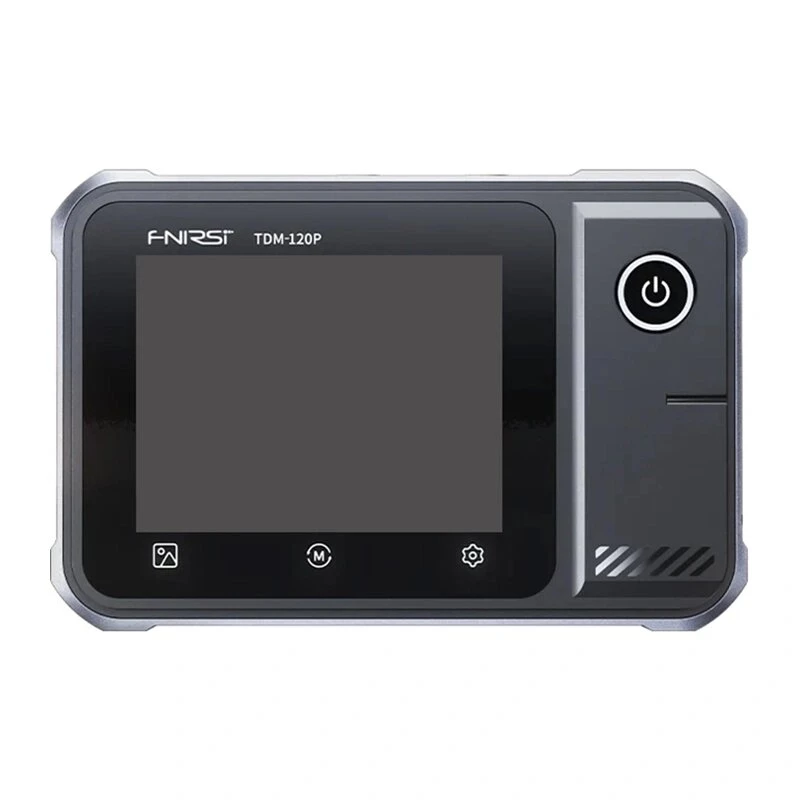

FNIRSI TDM-120P termocamera con display 2,8 inch , risoluzione IR 120x90, intervallo di temperatura da -20°C a 400°C

Uncover hidden temperature anomalies with the FNIRSI TDM-120P, a compact handheld thermal imaging camera engineered for rapid diagnostics. Combining a 120x90 pixel infrared sensor with a wide -20°C to 400°C measurement range, this tool lets you spot overheating components, insulation gaps, and electrical faults with confidence. Its 25 Hz refresh rate ensures smooth real-time imaging, while the bright 2.8-inch TFT display presents every thermal detail clearly.

Advantages

The TDM-120P excels in demanding environments: its rugged IP54-rated housing and 2-meter drop protection are built for field work. The adjustable emissivity (0.01–0.99) improves accuracy on various surfaces, and seven colour palettes (Iron Red, Rainbow, White Hot, Black Hot, Lava, High Contrast Rainbow, Red Hot) help you interpret temperature gradients effortlessly. Onboard 4GB storage stores JPG images with embedded temperature data, and USB-C charging provides up to 8 hours of continuous operation.

Suitable for

• Electrical panel inspections and troubleshooting
• HVAC system performance checks
• Building envelope and insulation surveys
• Mechanical equipment condition monitoring
• Automotive diagnostics and preventive maintenance

Key specifications

• Thermal resolution: 120 x 90 pixels
• Temperature measurement range: -20°C to 400°C (-4°F to 752°F)
• Accuracy: ±2°C or ±2% (whichever is greater)
• Field of view: 50° (H) x 37.5° (V)
• Display: 2.8-inch TFT, 320 x 240 resolution
• Measurement modes: center point, high/low tracking, area max/min
• Storage: 4GB EMMC
• Battery: 3.7V 2600mAh, up to 8 hours
• Charging: USB Type-C
• Protection: IP54, 2m drop resistant

Recommendations

To maximize accuracy, allow the camera to stabilize for a few minutes after power-on and adjust the emissivity setting to match the surface being measured. Always use the device within its specified operating temperature range and keep the lens free of debris.
