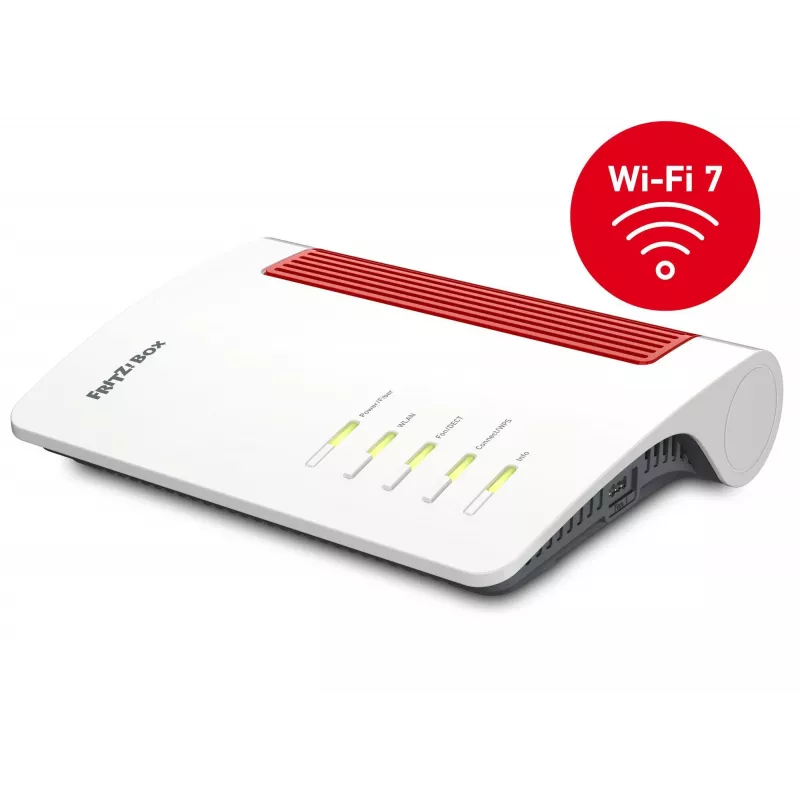

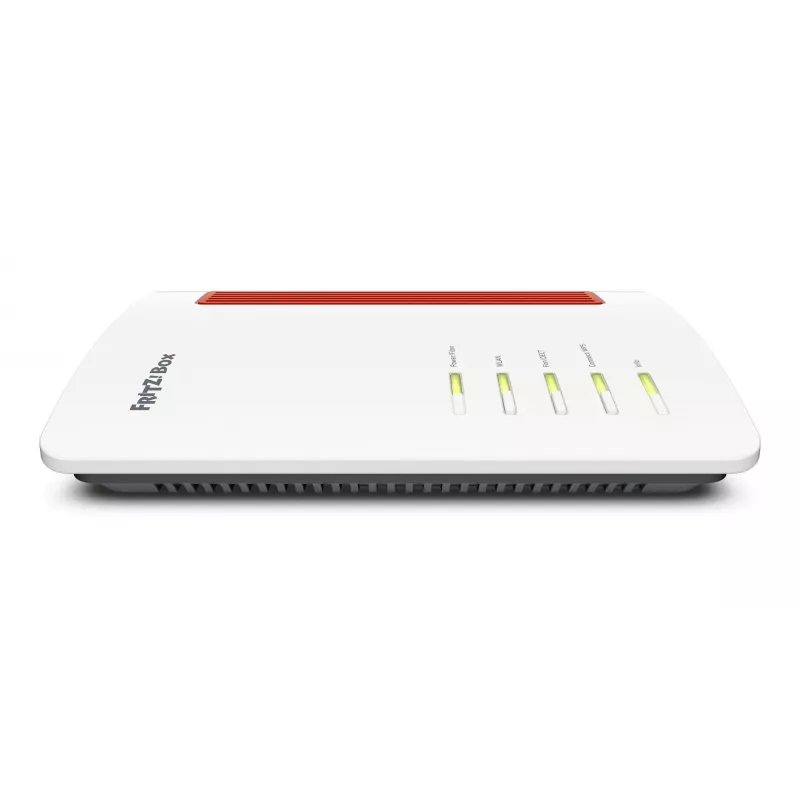

Box 5690 router Wi-Fi 2,5 Gigabit Ethernet dual band (2,4 GHz / 5 GHz) rosso, bianco

The FRITZ!Box 5690 is a tabletop router offering dual-band Wi‑Fi 7 (802.11be) with a combined maximum WLAN throughput of up to 5760 Mbit/s. It supports multiple WAN connection types including GPON and RJ‑45 Ethernet WAN, and provides four RJ‑45 LAN ports with 2.5 Gigabit Ethernet for fast wired connections. Security features include WPA2, WPA3 and WPS, making the device suitable for stable, high‑speed internet access in homes and small offices.

Advantages

The router combines the latest Wi‑Fi 7 standard with backward compatibility to earlier Wi‑Fi versions, delivering high wireless capacity and low latency for multiple concurrent devices. With 2.5 Gigabit Ethernet and four RJ‑45 LAN ports it supports high‑bandwidth wired devices and fast local network transfers. Built‑in security protocols (WPA2/WPA3/WPS) provide protection for wireless connections, and the compact tabletop form factor simplifies placement in living or work spaces.

Suitable for (tasks / use cases)

• High‑speed home internet and streaming
• Gaming with low latency requirements
• Small office network with multiple wired and wireless devices
• Large households with many simultaneous connections

Key specifications

• Wi‑Fi band: Dual‑band (2.4 GHz / 5 GHz)
• Top Wi‑Fi standard: Wi‑Fi 7 (802.11be)
• Maximum WLAN data transfer rate: 5760 Mbit/s

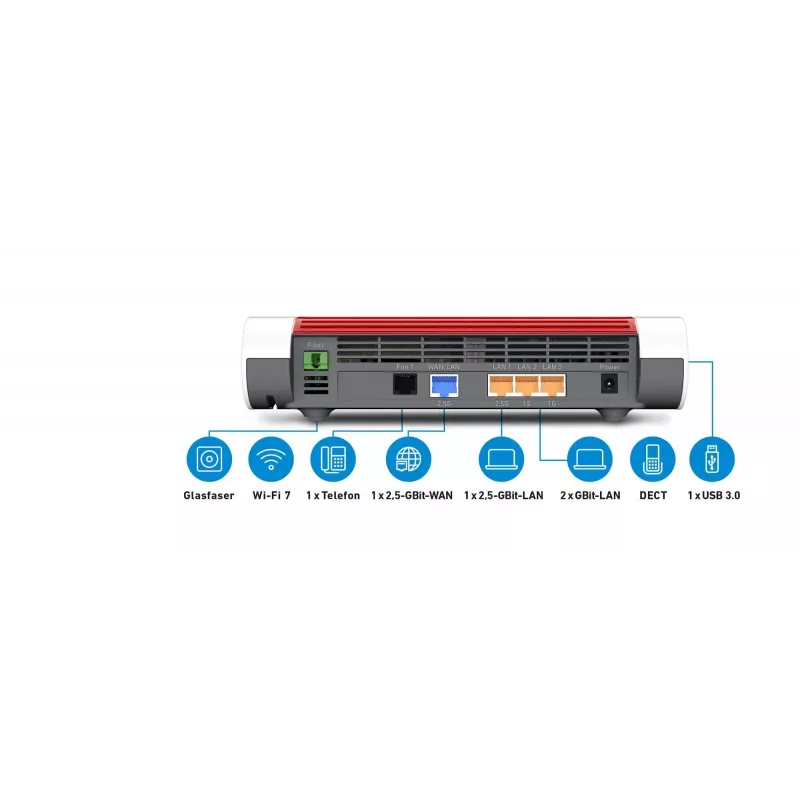

• Ethernet LAN interface: 2.5 Gigabit Ethernet
• Ethernet LAN (RJ‑45) ports: 4
• WAN types: GPON, RJ‑45 Ethernet WAN
• Security: WPA2, WPA3, WPS
• Product colour: Red, White
• Weight: 0.801 kg

How to use

Place the FRITZ!Box 5690 on a stable tabletop in a central location for optimal wireless coverage. Connect the WAN interface to your internet source (GPON or RJ‑45 Ethernet), then attach wired devices to the RJ‑45 LAN ports when needed. Complete the initial setup via the web interface or the manufacturer's setup wizard, configure SSIDs and security settings (WPA2/WPA3), and update firmware as recommended. After setup, connect client devices to the appropriate 2.4 GHz or 5 GHz network band.

Recommendations

For best performance, place the router away from large metal objects and other sources of electromagnetic interference, keep firmware up to date, and use wired 2.5 GbE connections for bandwidth‑intensive devices where possible.
