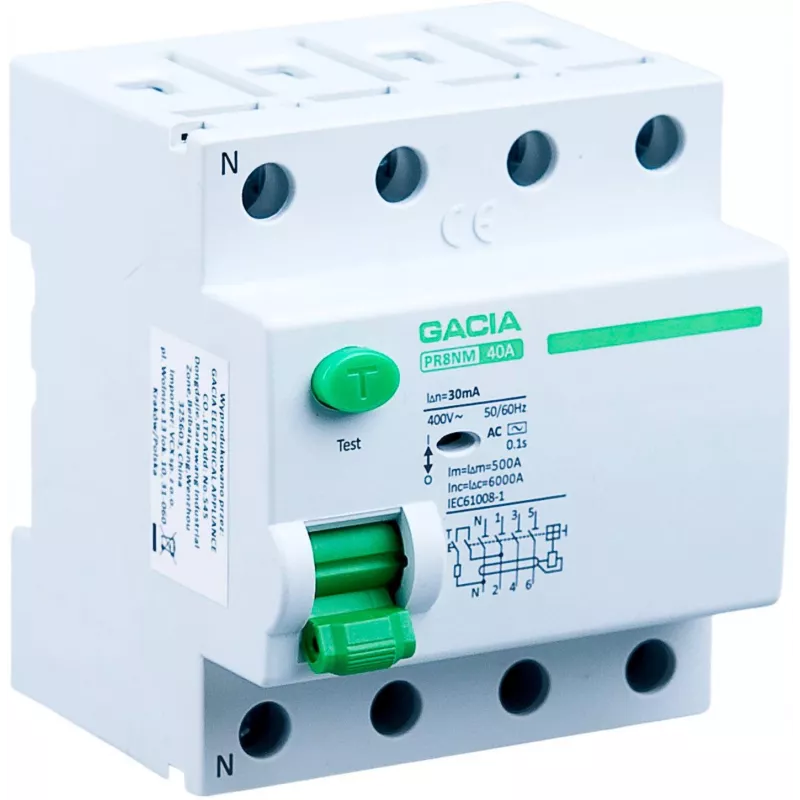

GACIA PR8NM 4P 40A 30mA tipo A RCCB interruttore differenziale 4 poli 40A 30mA

The GACIA PR8NM 4P 40A 30mA A is a high-quality Residual Current Circuit Breaker (RCCB) designed for reliable protection against indirect contact and earth leakage currents. With 4 poles, a rated current of 40A, and a rated residual operating current of 30mA, this Type A RCCB is ideal for residential, commercial, and industrial electrical installations. It complies with IEC/EN 61008-1 standards and offers robust performance with a short-circuit breaking capacity of 6kA.

Advantages

This RCCB provides enhanced safety by detecting and interrupting earth leakage currents, preventing electric shocks and fire hazards. Its Type A design ensures compatibility with pulsating DC residual currents, making it suitable for modern electronic loads. The DIN rail mounting allows for easy installation in distribution boards, and the clear ON/OFF and trip indicators provide immediate status visibility.

Suitable for

• Residential electrical panels
• Commercial buildings
• Industrial power distribution
• Protection of circuits with electronic equipment

Key specifications

• Product Type: Residual Current Circuit Breaker (RCCB)
• Number of Poles: 4P (4-pole)
• Rated Current (In): 40 A
• Rated Residual Operating Current (IΔn): 30 mA
• RCD Type: Type A
• Rated Voltage (Un): 400 V AC
• Rated Frequency: 50/60 Hz
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: DIN Rail (35mm)
• Terminal Capacity: Up to 25 mm² (rigid), 16 mm² (flexible)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Degree of Protection: IP20 (terminals), IP40 (enclosure)
• Operating Temperature Range: -25°C to +40°C
• Standard Compliance: IEC/EN 61008-1
• Tripping Characteristic: Instantaneous
• Indicator: ON/OFF and Trip indicator
• Protection Function: Against indirect contact and earth leakage currents

Recommendations

For optimal safety, ensure that the RCCB is installed by a qualified electrician and that the load does not exceed the rated current. Regular testing of the trip mechanism is recommended to maintain protection.
