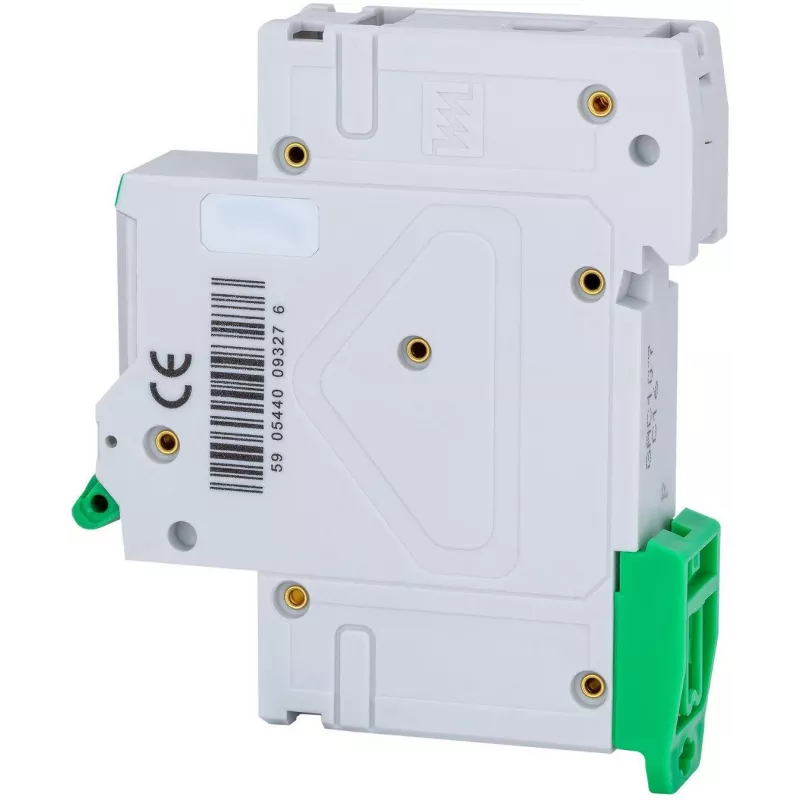

GACIA N8BH 10kA Curva C 32A Interruttore automatico unipolare

The GACIA N8BH 10KA C 1P 32A stands out among miniature circuit breakers with its robust 10 kA breaking capacity and precise C-curve tripping, making it ideal for protecting circuits with moderate inrush currents such as lighting and small motor loads. Its single-pole design and 32 A rating offer a perfect balance of protection and performance for residential and commercial installations.

Highlights

• Rated current of 32 A with C-curve for general circuit protection
• High breaking capacity of 10 kA at 230 V AC
• Single-pole (1P) design for compact DIN rail mounting
• Thermal-magnetic trip mechanism for reliable overload and short-circuit protection
• Complies with IEC/EN 60898-1 standards

In daily use

Engineered for dependable performance, this MCB features a clear ON/OFF indicator for quick status checks and screw terminals that accept conductors from 1 to 25 mm², ensuring secure connections. With an electrical life of 10,000 cycles and mechanical life of 20,000 cycles, it delivers long-term reliability. The IP20 terminal protection and operating temperature range of -25°C to +55°C make it suitable for a variety of environments.

Full specifications

• Product type: Miniature Circuit Breaker (MCB)
• Number of poles: 1P
• Rated current (In): 32 A
• Tripping curve: C
• Rated breaking capacity (Icn): 10 kA at 230 V AC
• Rated voltage (Ue): 230 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail (35 mm)
• Standard compliance: IEC/EN 60898-1
• Electrical life: 10,000 cycles
• Mechanical life: 20,000 cycles
• Protection degree: IP20 (terminals)
• Terminal capacity: 1-25 mm² (solid/stranded)
• Ambient operating temperature: -25°C to +55°C
• Energy limiting class: 3
• Short-circuit release type: Thermal-magnetic
• Connection type: Screw terminals
• Indicator: ON/OFF position indicator

Final note

For reliable circuit protection in a compact form, the GACIA N8BH 10KA C 1P 32A is a trusted choice for electricians and installers.
