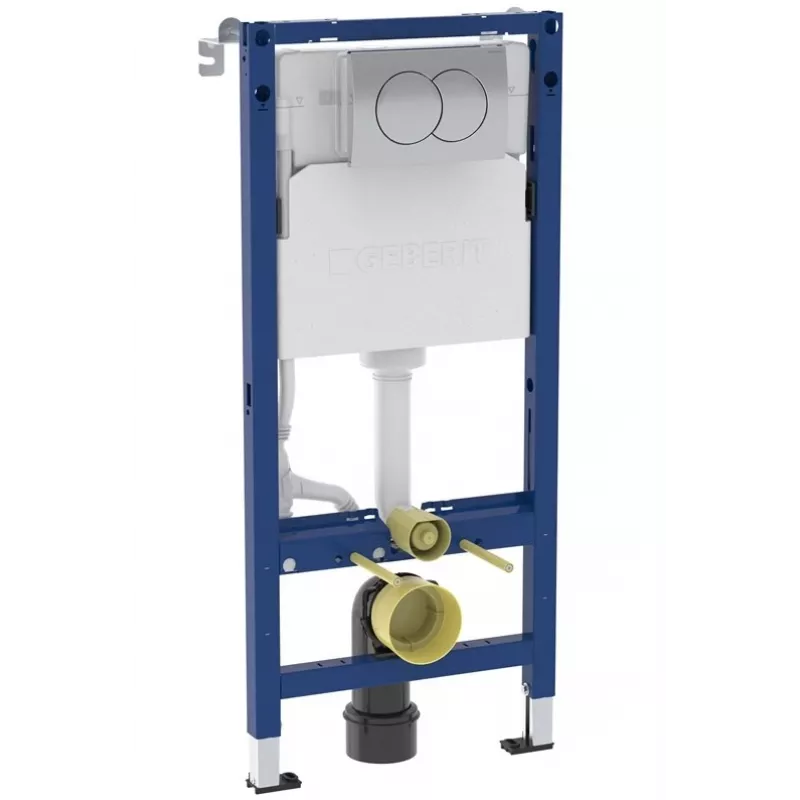

Geberit Duofix Delta 01 telaio per WC sospeso, 112 cm, Dual Flush, cassetta incasso

The Geberit Duofix Delta 01 frame is a robust and versatile solution for installing wall-hung toilets. Designed for both drywall and solid wall installations, this self-supporting frame features a concealed cistern with dual flush technology for water efficiency. With a height of 112 cm and a load capacity of 400 kg, it provides reliable support and a clean, modern look. Compatible with Geberit Delta series flush plates, the frame offers front actuation and adjustable feet for easy alignment. The powder-coated steel construction ensures durability, while sound insulation minimizes noise. Ideal for new builds or renovations, the Duofix Delta 01 combines functionality with sleek design.

Advantages

This frame simplifies the installation of wall-hung toilets, saving space and allowing for easy cleaning underneath. The dual flush system reduces water consumption, and the adjustable feet accommodate uneven floors. The self-supporting design eliminates the need for additional support, and the sound insulation enhances comfort.

Suitable for

• Wall-hung toilets in residential and commercial bathrooms
• Drywall or solid wall installations
• Projects requiring a concealed cistern for a minimalist look

Key specifications

• Application: Wall-hung WC
• Frame Height: 112 cm
• Cistern Type: Concealed
• Cistern Depth: 12 cm
• Flush Type: Dual flush (6 L / 3 L)
• Actuation: Front actuation
• Compatible Flush Plates: Geberit Delta series
• Frame Material: Powder-coated steel
• Load Capacity: 400 kg
• Water Connection: Top / Centre
• Water Supply Pressure: 0.1-10 bar
• Adjustable Feet: Yes
• Installation Type: Drywall / Solid wall
• WC Mounting Distance: 180 mm or 230 mm
• Waste Connection Diameter: DN 90 mm
• Water Supply Connection: R 1/2"
• Sound Insulation: Yes
• Self-supporting: Yes

Recommendations

For a complete installation, pair this frame with a Geberit Delta flush plate and a compatible wall-hung toilet. Ensure proper wall support and follow installation instructions for best results.
