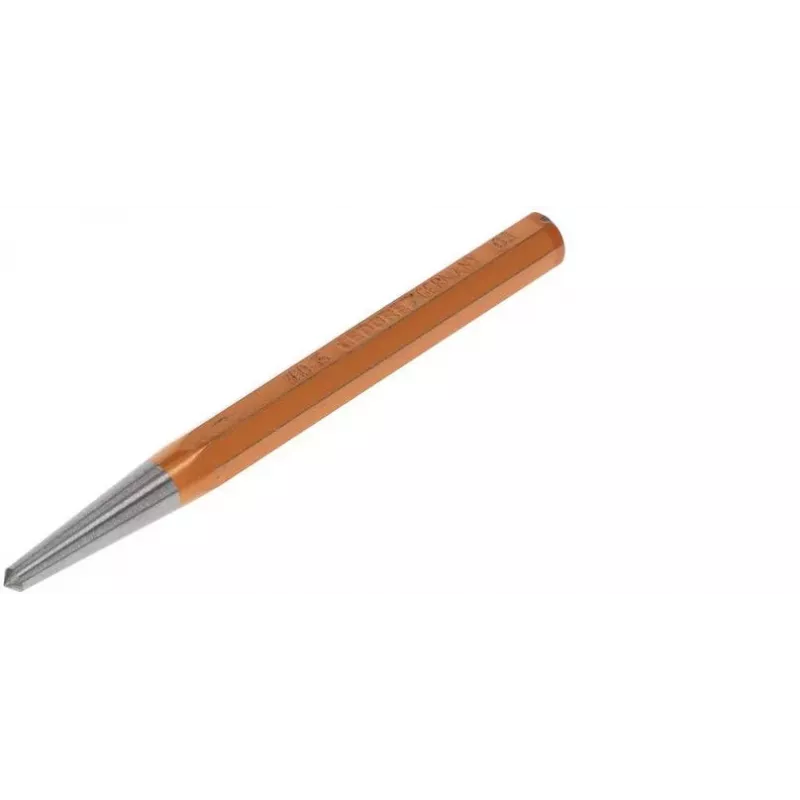

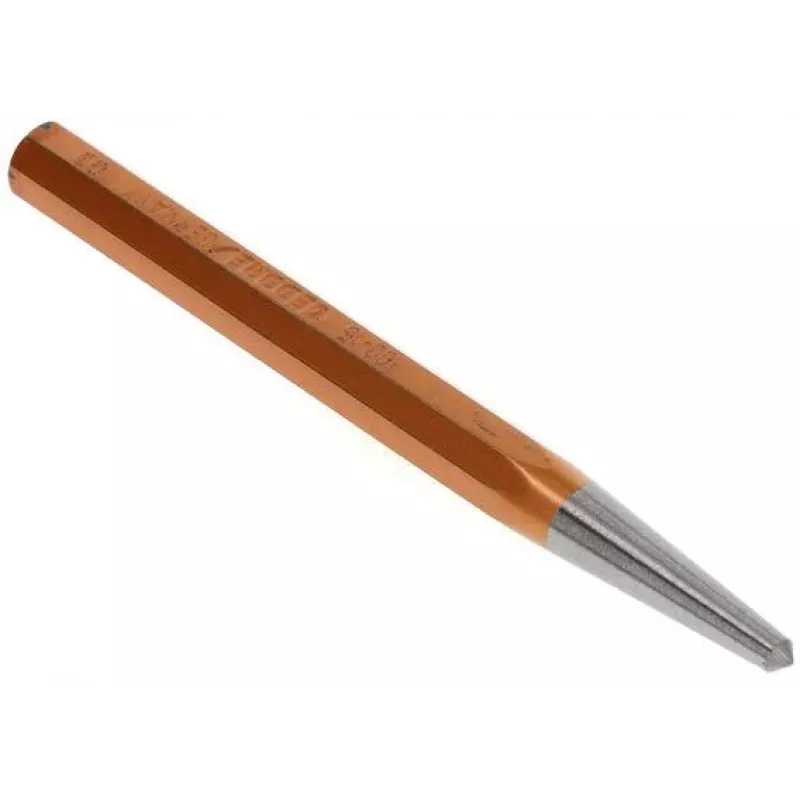

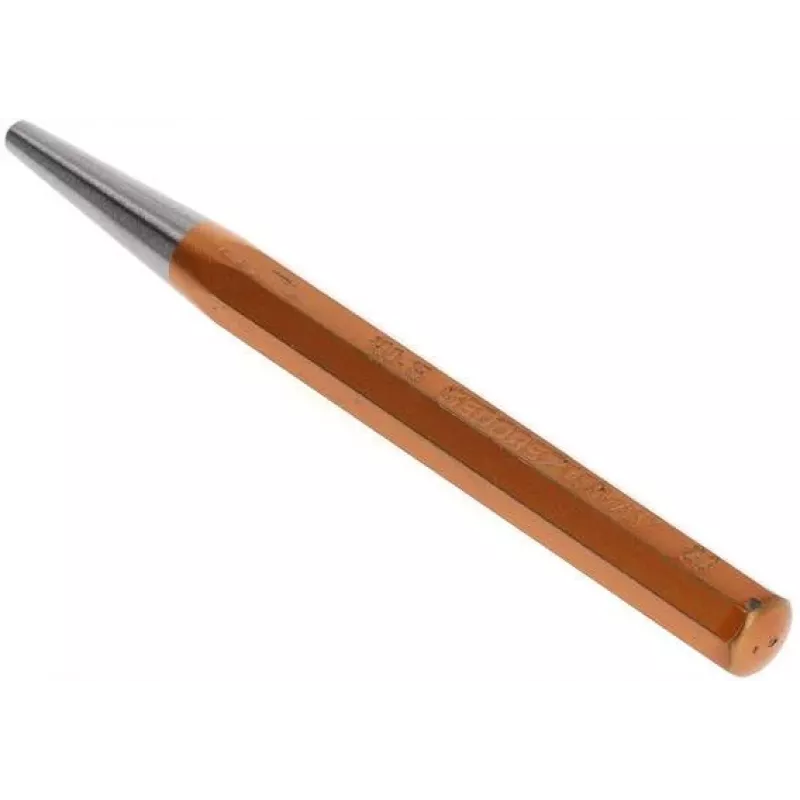

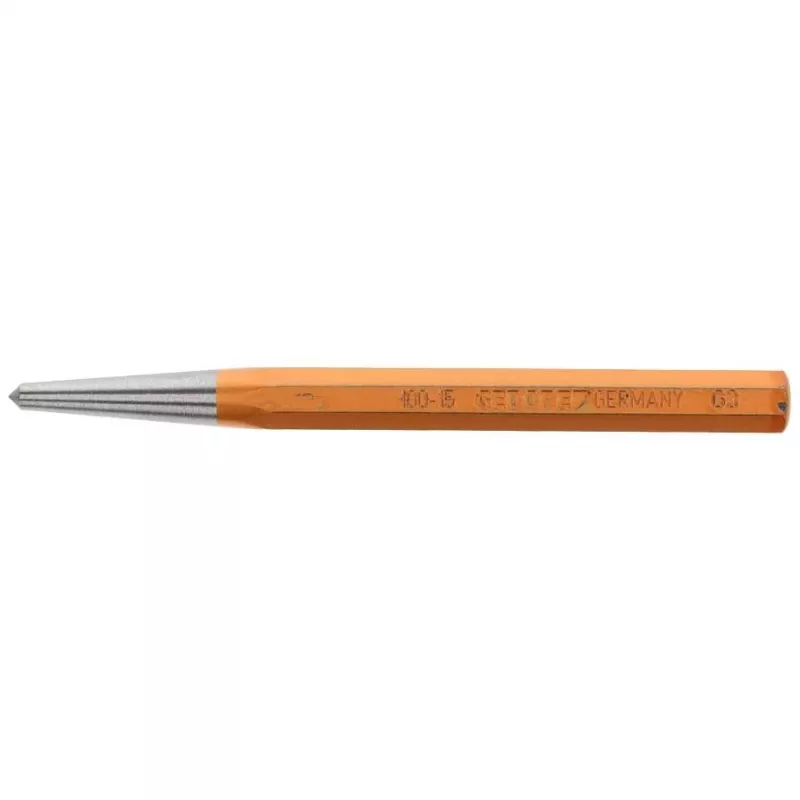

GEDORE punteruolo 150 x 12 x 5 mm (8721210)

The GEDORE 8721210 center punch is forged from chrome vanadium steel and hardened for long-term use in metalworking. Its 12 mm shaft and 5 mm precision-ground tip deliver a clean mark on steel and other hard materials, while the flat striking surface takes hammer blows without deforming. The 150 mm length keeps the hand clear of the work area, and the polished finish resists corrosion in workshop conditions.

Highlights

• Chrome vanadium steel body, forged and hardened
• Precision-ground 5 mm tip for accurate marking
• Flat striking surface designed for hammer use
• Ground and polished finish for corrosion resistance

In daily use

Place the tip on the layout mark, hold the punch upright, and strike the flat head with a hammer. The 90° tip angle produces a small, well-defined indentation that keeps the drill bit from wandering. The cylindrical body is easy to grip, and the 12 mm diameter provides enough mass for controlled blows.

Full specifications

• Tool Type: Center Punch
• Standard: DIN 7250
• Material: Chrome Vanadium Steel
• Overall Length: 150 mm
• Shaft Diameter: 12 mm
• Tip Diameter: 5 mm
• Tip Angle: 90 degrees
• Finish: Ground and Polished
• Application: Marking center points for drilling
• Drive Method: Hammer Driven
• Corrosion Resistance: Yes
• Manufacturing Process: Forged and Hardened
• Body Shape: Cylindrical
• Head Type: Flat Striking Surface
• Precision Ground Tip: Yes

Final note

A reliable center punch for accurate hole starting in metal, built to DIN 7250 from chrome vanadium steel.
