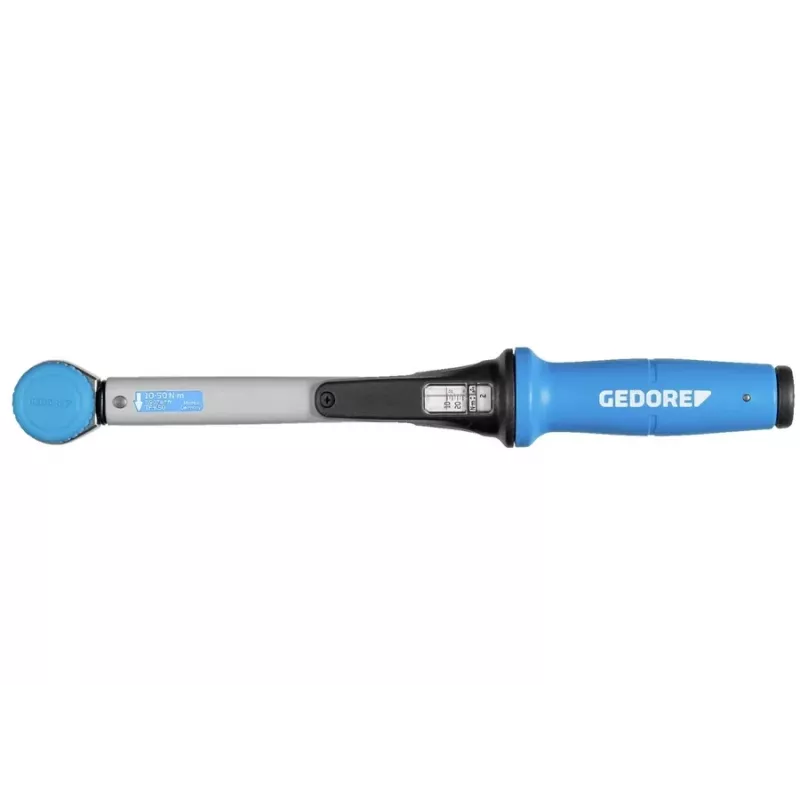

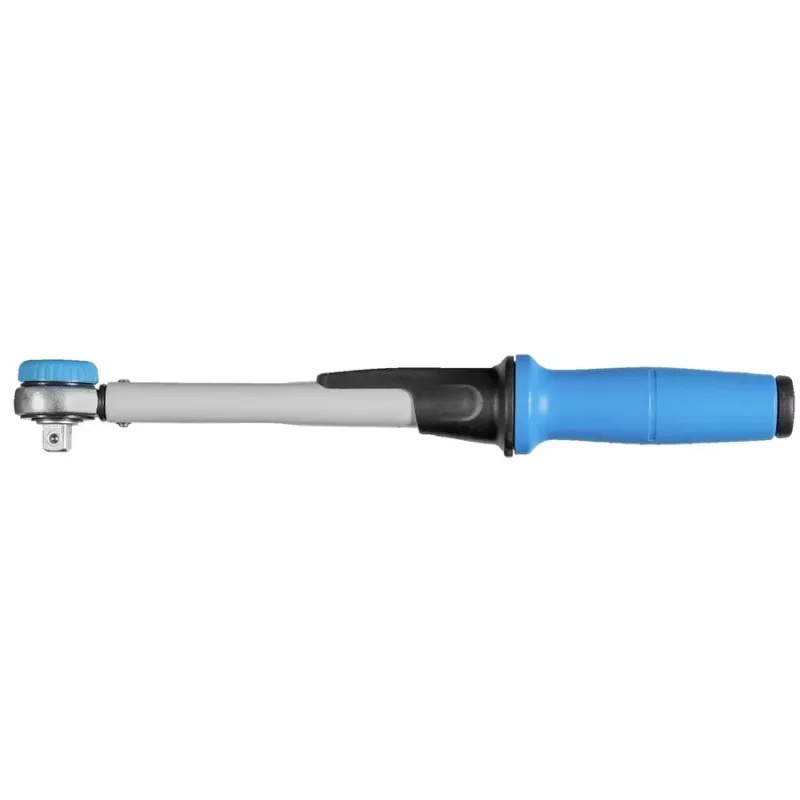

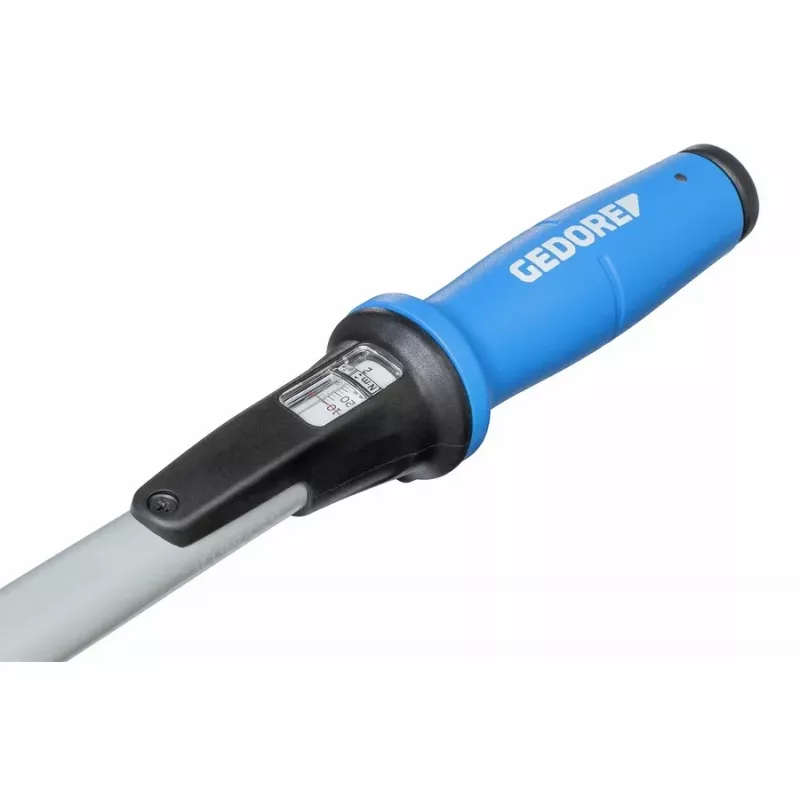

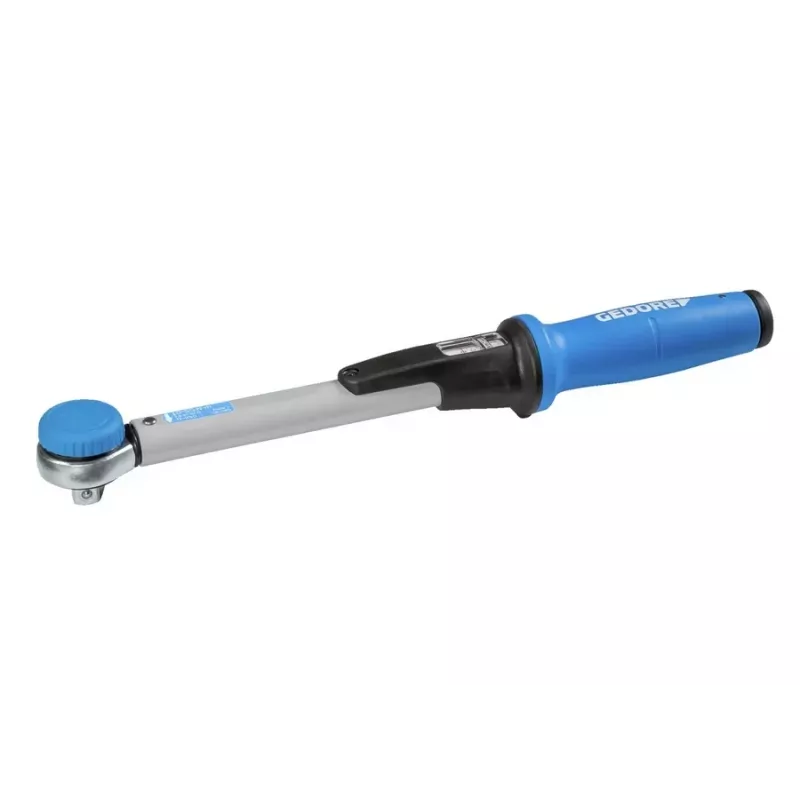

GEDORE TORCOFIX K chiave dinamometrica 3/8", 10-50 Nm (3288242)

Incorrectly tightened fasteners can lead to equipment failure, safety hazards, and costly rework. The GEDORE TORCOFIX K 3288242 torque wrench eliminates guesswork by delivering precise, repeatable torque from 40 to 200 Nm with ±3% accuracy. Its reversible ratchet head and audible/tactile click release make it suitable for both clockwise and counterclockwise applications, while the robust construction and ergonomic handle ensure comfort during prolonged use.

Who is it for

Professional mechanics, maintenance technicians, and quality control specialists in automotive, industrial, and manufacturing environments who require a reliable, calibrated torque tool for critical fastening tasks. It is also ideal for workshops that need to comply with DIN EN ISO 6789-2:2017 standards.

Main features

• 1/2" (12.5 mm) square drive with quick-release button for secure socket attachment and fast changes.
• Torque range 40–200 Nm with micrometer scale and fine adjustment for precise setting.
• Reversible ratchet head (30 teeth) allows tightening in both directions.
• Audible and tactile click signal when preset torque is reached, with short release travel to prevent overtightening.
• Ergonomic, non-slip plastic handle for comfortable grip and reduced fatigue.
• Secure locking mechanism prevents accidental torque setting changes.
• Supplied with factory test certificate and sturdy plastic storage case.

Specifications

• Drive size: 1/2" (12.5 mm)
• Torque range: 40–200 Nm
• Accuracy: ±3%
• Scale: Nm (with lbf·ft equivalent on some models)
• Operating direction: Clockwise and counter-clockwise (reversible)
• Release mechanism: Audible and tactile click signal
• Adjustment type: Micrometer scale with fine adjustment
• Material: High-quality steel, plastic handle
• Handle design: Ergonomic, non-slip
• Certification standard: DIN EN ISO 6789-2:2017
• Ratchet teeth: 30 teeth
• Overall length: 515 mm
• Torque setting lock: Yes, secure locking mechanism
• Application: Controlled screw tightening in various industries
• Storage case: Supplied in a sturdy plastic box
• Calibration certificate: Yes, supplied with factory test certificate
• Release angle: Short release travel
• Head type: Reversible ratchet head
• Quick release: Yes, for sockets
• Display: Analog scale

Tips

Always store the torque wrench at its lowest setting to maintain calibration accuracy. Use only with standard sockets and extensions to avoid torque loss. Periodically verify calibration, especially after heavy use or if dropped.
