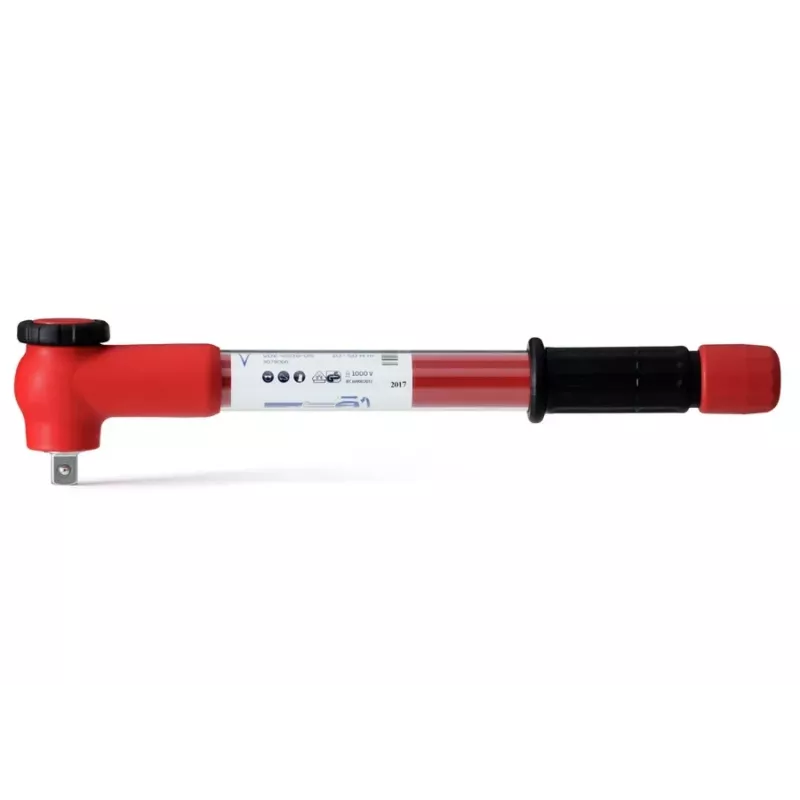

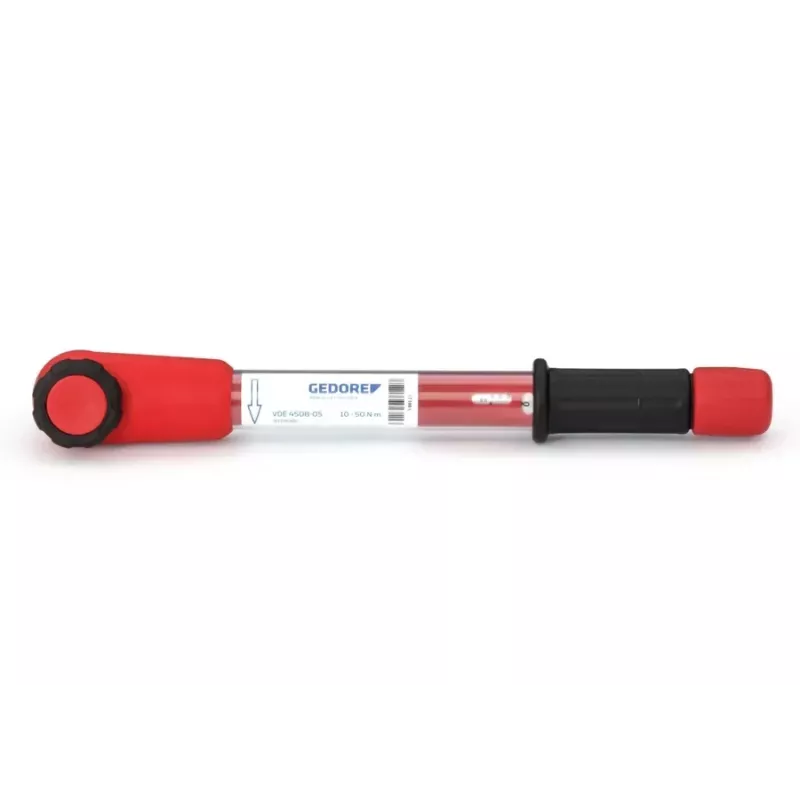

Gedore VDE 4508-05 3079066 chiave dinamometrica isolata attacco 1/2" 10-50 Nm

Working on live electrical systems demands a torque wrench that protects you from shock while delivering precise, repeatable tightening. The Gedore VDE 4508-05 insulated torque wrench meets that need with a 1/2" drive, 10-50 Nm range, and full VDE insulation rated for 1000V AC.

Who is it for

Electricians, maintenance technicians, and industrial professionals who torque fasteners on or near live equipment up to 1000V AC. Ideal for panel building, switchgear assembly, and electrical installation where safety and accuracy are critical.

Main features

• VDE insulation (EN 60900 / IEC 60900) protects against electric shock up to 1000V AC; individually tested at 10,000V
• Click-type mechanism with audible and tactile release for consistent torque application
• Reversible ratchet head with 32 teeth for fast engagement and smooth operation
• Micrometer scale adjustment with 0.5 Nm increments for precise setting
• Torque range 10-50 Nm, accuracy ±6%, clockwise (right-hand) operation
• Insulated composite handle over steel body for durability and grip
• Supplied in a robust plastic case for storage and transport

Specifications

• Brand: GEDORE
• Model: VDE 4508-05
• MPN: 3079066
• EAN: 4002805937280
• Drive size: 1/2 inch (12.5 mm)
• Torque range: 10 - 50 Nm
• Torque increment: 0.5 Nm
• Accuracy: ±6%
• Insulation standard: VDE (EN 60900 / IEC 60900)
• Insulation rating: 1000V AC (individually tested at 10,000V)
• Operating mode: Click-type
• Head type: Reversible ratchet head
• Ratchet teeth: 32
• Adjustment mechanism: Micrometer scale
• Release indication: Audible and tactile click
• Direction of torque: Clockwise (right-hand)
• Handle material: Insulated composite
• Body material: Steel
• Application: Live working on electrical systems up to 1000V AC
• Certification: VDE, GS
• Storage: Supplied in a robust plastic case
• Overall length: 450 mm
• Weight (tool only): 1.7 kg

Tips

Always verify the torque setting on the micrometer scale before use. Store the wrench in its case at the lowest torque setting to maintain calibration. Use only insulated sockets and accessories to preserve the VDE protection.
