Harvia Cilindro 9 kW riscaldatore elettrico PC90

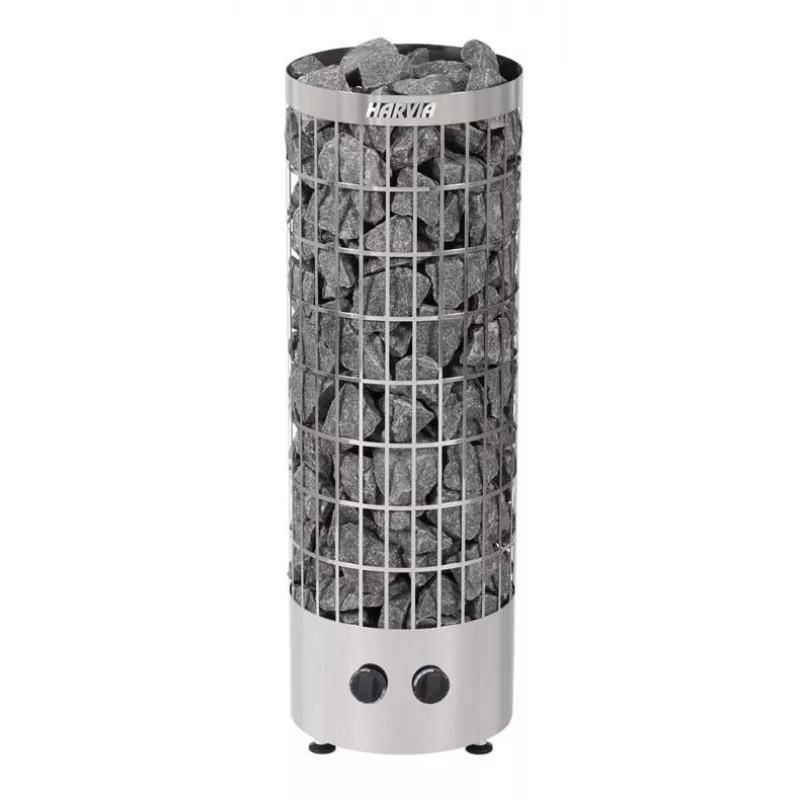

The Harvia Cilindro 9 kW Electric Heater PC90 is a high-performance floor-standing sauna heater designed for medium-sized sauna rooms. With a powerful 9 kW output and a built-in control unit, it provides precise temperature management and a comfortable sauna experience. The stainless steel construction ensures durability and a modern aesthetic.

Advantages

Efficient heating for sauna volumes of 8–14 m³, integrated timer and thermostat for easy operation, and robust stainless steel housing that resists corrosion and high temperatures.

Suitable for

• Private and commercial saunas requiring a 9 kW heater
• Floor-standing installation with proper safety clearances
• Users who prefer a built-in control unit without external panels

Key specifications

• Power Output: 9 kW
• Recommended Sauna Volume: 8–14 m³
• Stone Capacity: 80 kg
• Operating Voltage: 400V 3N~
• Required Fuse: 3 x 16 A
• Control Unit: Built-in (Timer and Thermostat)
• Installation Type: Floor-standing
• Outer Casing Material: Stainless Steel
• Minimum Safety Distance (Side): 100 mm
• Minimum Safety Distance (Front): 100 mm
• Minimum Safety Distance (Ceiling): 950 mm
• IP Rating: IPX4
• Heating Element Material: Stainless Steel
• Sauna Stone Requirement: Harvia sauna stones (5–10 cm diameter, not included)
• Connection Cable Size: 5 x 2.5 mm²
• Overheat Protection: Yes

Recommendations

For optimal performance, use Harvia sauna stones and ensure proper ventilation. Installation should be carried out by a qualified electrician. Always maintain the specified safety distances.
