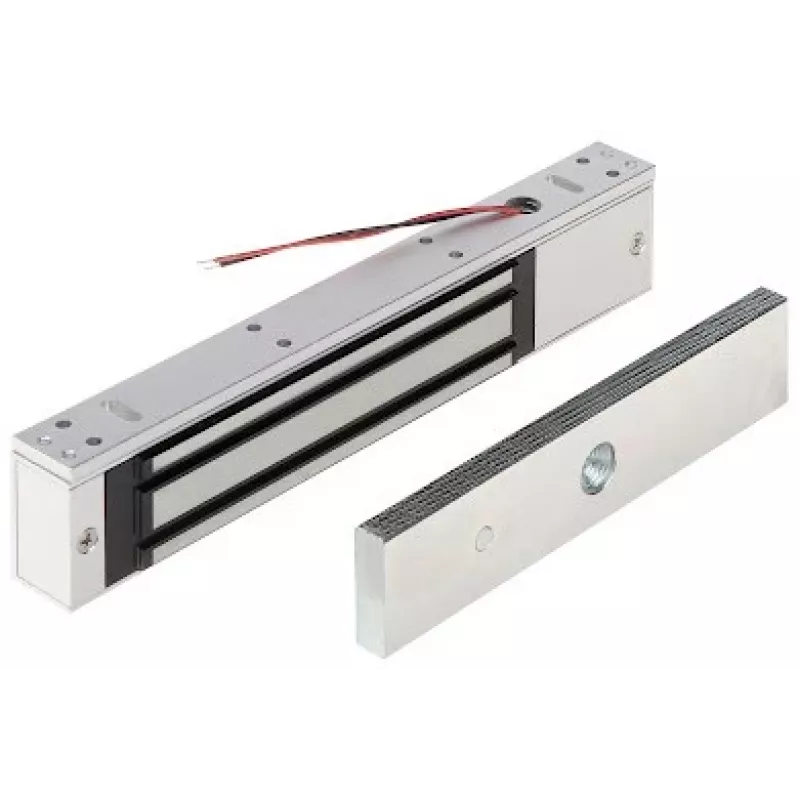

GENWAY Apriporta elettromagnetico ZE-280-2, forza di tenuta 280 kg, montaggio a parete, Fail-Safe, 12/24V DC

Secure your premises with the GENWAY ZE-280-2 electromagnetic lock, delivering a powerful 280 kg (600 lbs) holding force for reliable access control on wooden, glass, metal, and fireproof doors. This fail-safe lock operates on 12V or 24V DC and includes a built-in LED status indicator and dry contact output for seamless integration with security systems.

Advantages

The anodized aluminum alloy body and zinc-plated steel armature plate ensure durability and corrosion resistance. A built-in MOV suppresses residual magnetism, guaranteeing immediate release when power is cut. The lock's surface mount design simplifies installation on most door frames, while the included mounting bracket provides secure fixation.

Suitable for

• Commercial and industrial access control systems
• Fire-rated doors requiring fail-safe operation
• High-traffic entrances needing robust locking force
• Integration with access controllers, keypads, or biometric readers

Key specifications

• Holding force: 280 kg (600 lbs)
• Operating voltage: DC 12V / 24V (selectable)
• Current draw: 500 mA @ 12V, 250 mA @ 24V
• Lock type: Fail-safe (power to lock)
• Mounting: Surface mount with bracket
• Door compatibility: Wooden, glass, metal, fireproof
• Operating temperature: -10°C to +55°C
• Operating humidity: 0-95% non-condensing
• LED indicator: Yes (lock status)
• Lock status output: NO/NC/COM dry contact
• Body material: Anodized aluminum alloy
• Armature plate: Zinc-plated steel, 180 x 38 x 11 mm
• Certifications: CE, RoHS

Recommendations

Pair the ZE-280-2 with a suitable DC power supply (12V or 24V) and an access control system for a complete secure entry solution. For glass doors, use the appropriate glass door mounting bracket (sold separately).
