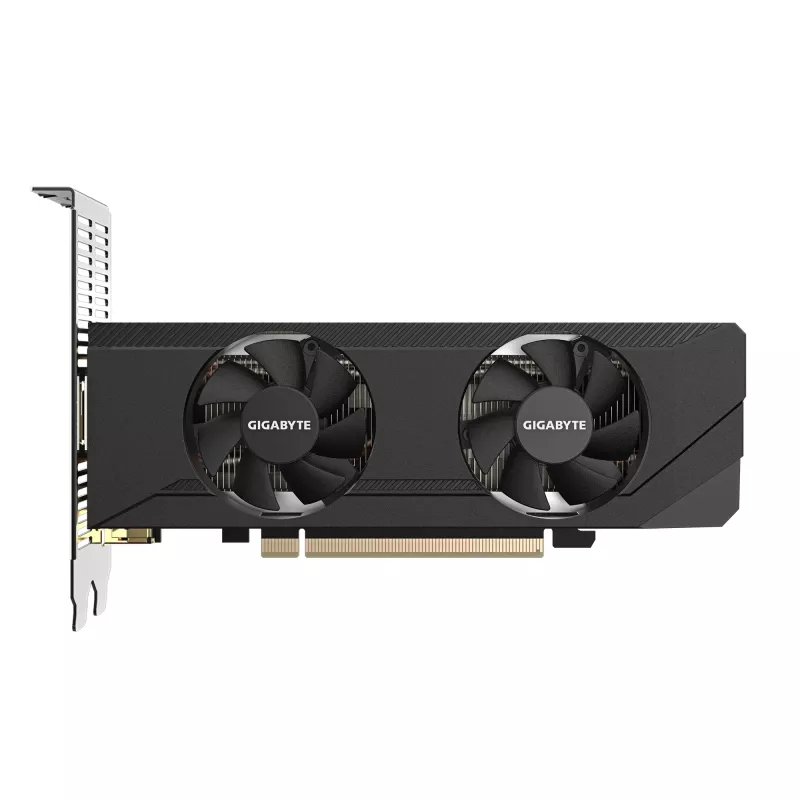

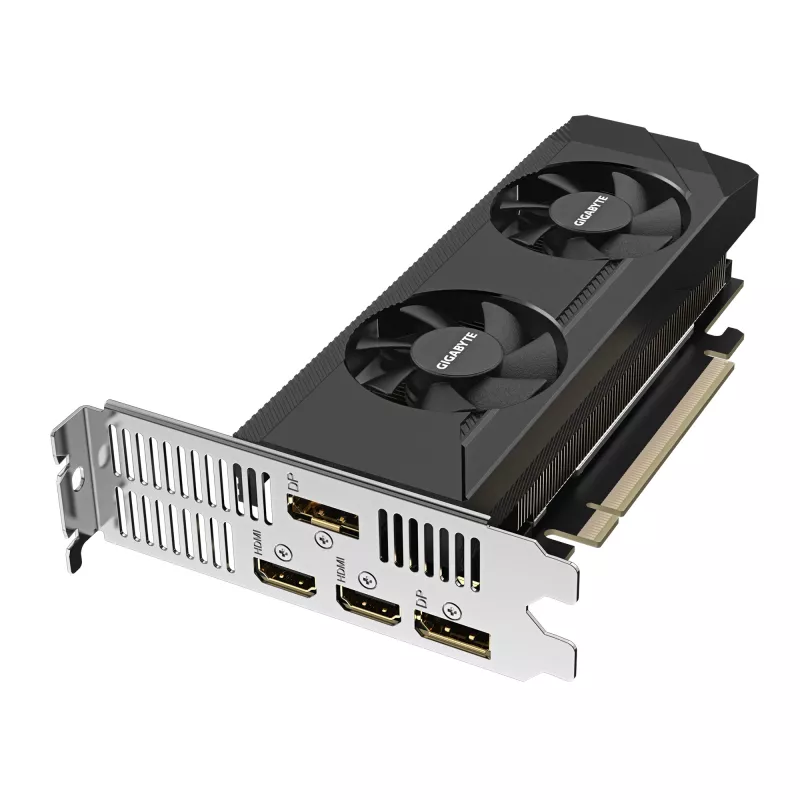

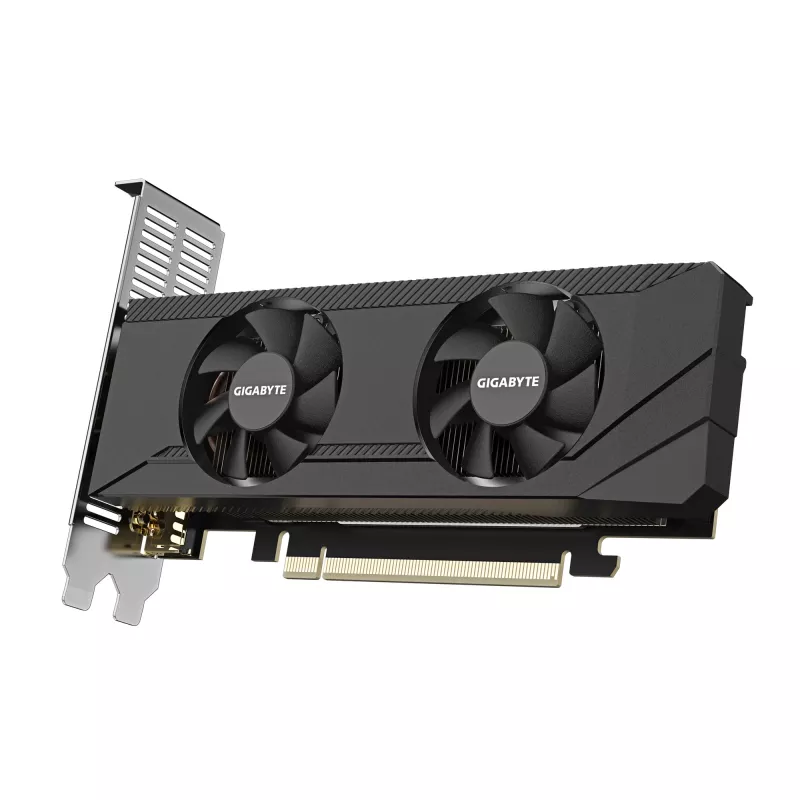

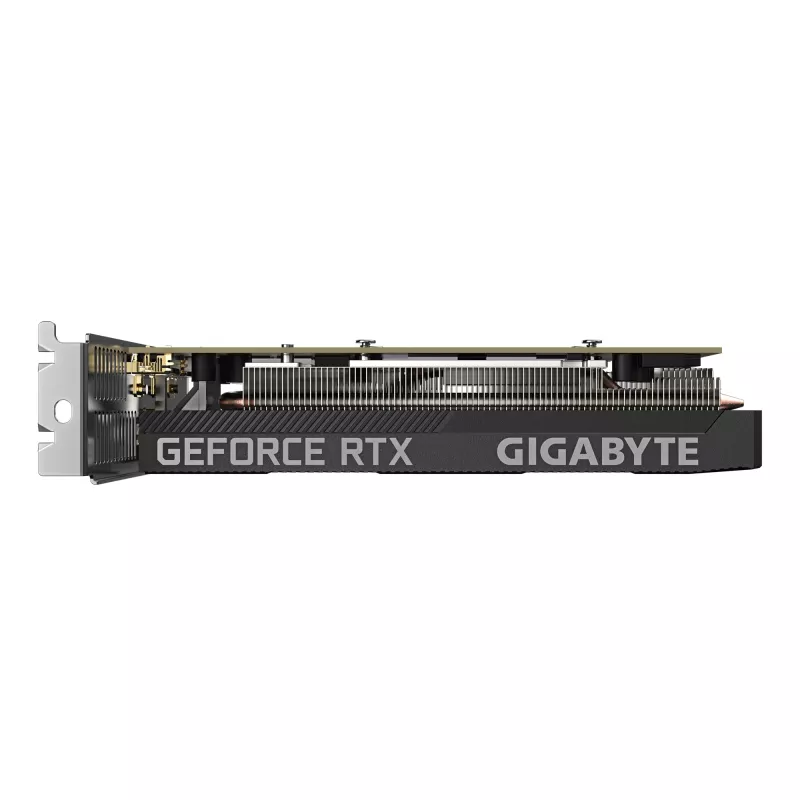

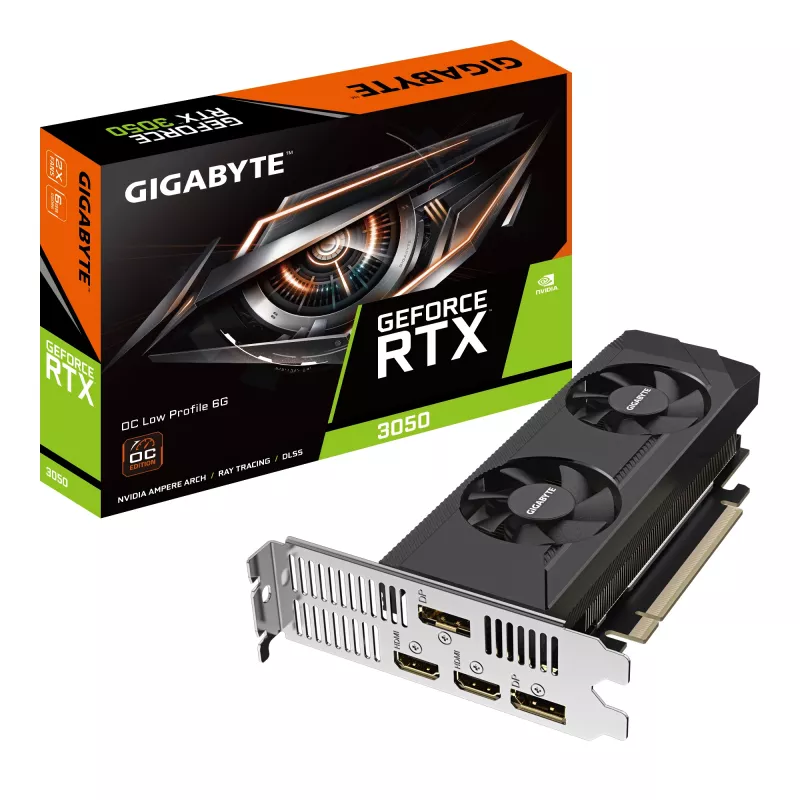

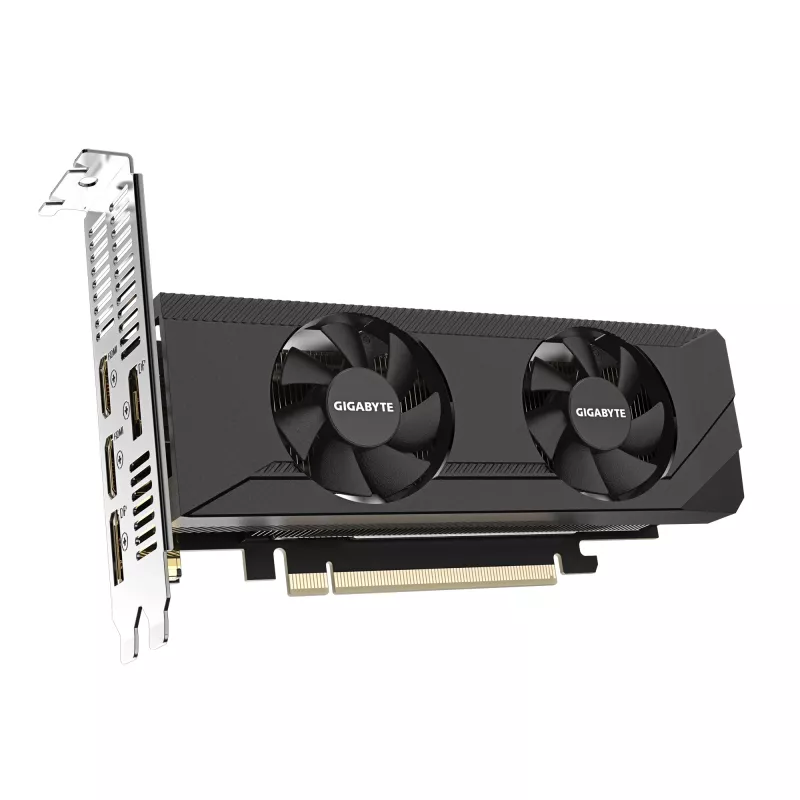

GIGABYTE GeForce RTX 3050 OC Low Profile 6G NVIDIA 6 GB GDDR6

GIGABYTE graphics card with a custom-designed cooling system combines a direct-contact copper heat pipe and a compact low-profile form factor, making it suitable for small PC builds while maintaining effective heat dissipation. The card provides multiple display outputs and durable components for reliable operation.

Advantages

The custom cooling solution transfers heat efficiently from the GPU to the heatsink, enabling lower operating temperatures. Its low-profile 181 mm length and included low-profile bracket allow installation in compact cases. Multiple video outputs (two DisplayPort and two HDMI) support up to four simultaneous displays. Components such as lower RDS(on) MOSFETs, metal chokes and low-ESR solid capacitors improve electrical efficiency, reduce power loss and extend component lifespan. The PCB uses a fully automated, user-friendly design that reduces the risk of cuts or accidental damage during building. GIGABYTE Control Center offers software control of clock speed, voltage, fan mode and power target.

Key specifications

• Cooling: custom-designed system with copper heat pipe in direct contact with GPU
• Card length: 181 mm (low-profile)
• Bracket: includes additional low-profile bracket

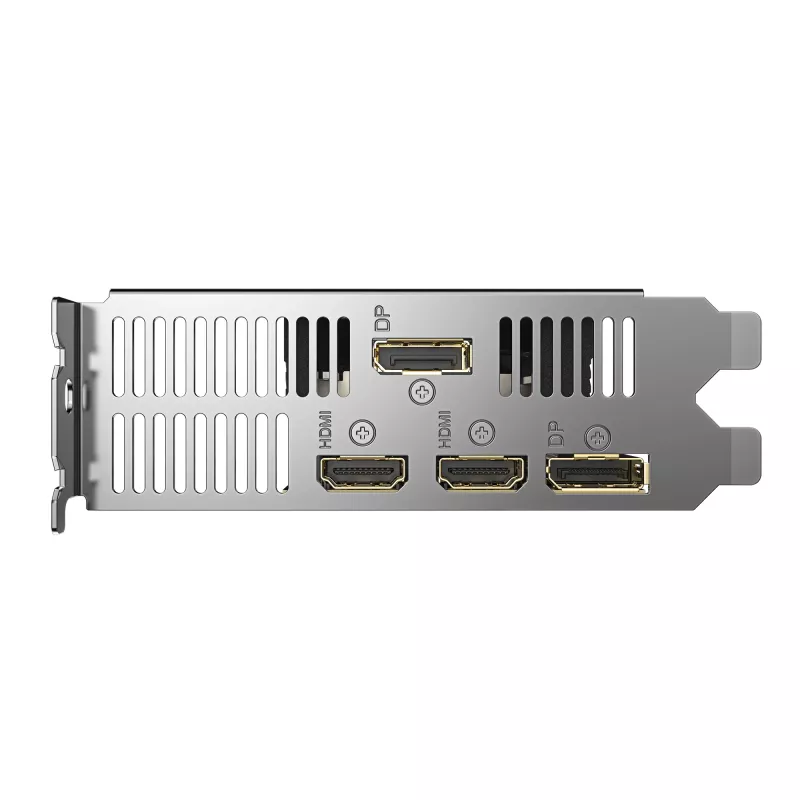

• Display outputs: 2 × DisplayPort, 2 × HDMI (up to 4 displays)
• Power components: lower RDS(on) MOSFETs, metal chokes, low-ESR solid capacitors
• PCB: fully automated production, user-friendly surface
• Software: GIGABYTE Control Center for clock, voltage, fan and power adjustment

How to use

Install the graphics card into a compatible PCIe slot in your desktop system; if you have a compact case, replace the standard bracket with the included low-profile bracket for proper fit. Connect monitor cables to the HDMI or DisplayPort outputs according to your display setup. Install or update GIGABYTE Control Center software to configure clock speeds, fan profiles, voltage and power target as required. Ensure adequate case airflow to complement the card's cooling system.

Recommendations

For optimal performance, pair the card with a power supply that meets the system requirements and maintain good case ventilation. Keep drivers and GIGABYTE Control Center updated to benefit from stability and performance improvements.
