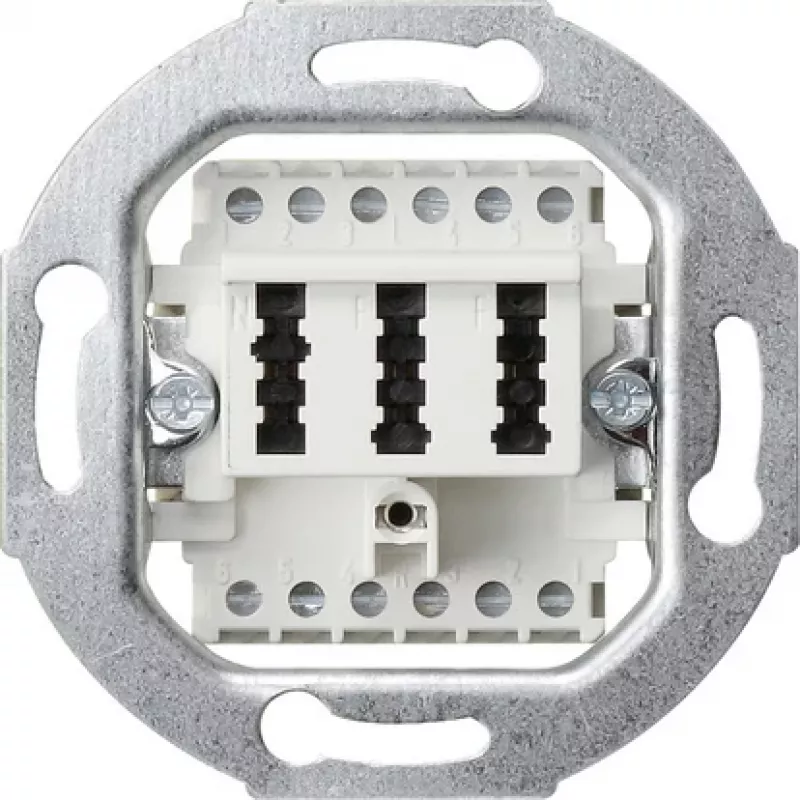

GIRA 003202 presa di connessione TAE meccanismo, 2x6/6 NFF, bianco puro

Telephone and data connections in German homes often use TAE sockets, and installing them flush-mounted requires a compatible insert that fits standard switch ranges. The GIRA 003202 TAE connection box insert provides two 6/6 NFF sockets in a pure white design, ready to be combined with a Gira System 55 central plate and frame.

Who is it for

Electricians and installers who need a reliable TAE insert for telephone, fax, or modem connections in residential or commercial buildings. It is suitable for flush-mounted installation and works with Gira switch ranges such as System 55, E2, Event, Esprit, Standard 55, and Flächenschalter.

Main features

• Two TAE sockets with 6 contacts and 6 wires each (2x6/6)
• NFF assignment: one socket for auxiliary device (Nebenstelle), two for telephone (Fernsprechen)
• Screw terminals for secure wire connection
• Pure white (RAL 9010) thermoplastic housing
• Designed for central plate mounting, flush-mounted
• Halogen-free material

Specifications

• Product type: TAE connection box insert
• Number of sockets: 2
• Socket configuration: 2x6/6
• TAE assignment: NFF
• Colour: Pure white (RAL 9010)
• Material: Thermoplastic
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Number of wires: 6
• Number of contacts: 6
• Halogen-free: Yes
• Operating temperature: -5 to +45 °C
• Relative humidity: 5 to 95 % (non-condensing)

Tips

Pair this insert with a Gira System 55 central plate and frame in a matching colour for a clean finish. Ensure the installation box is deep enough for the insert and wiring.
