GIRA 312200 Modulo interruttore a pulsante con spia 2 poli, 2 poli, interruttore

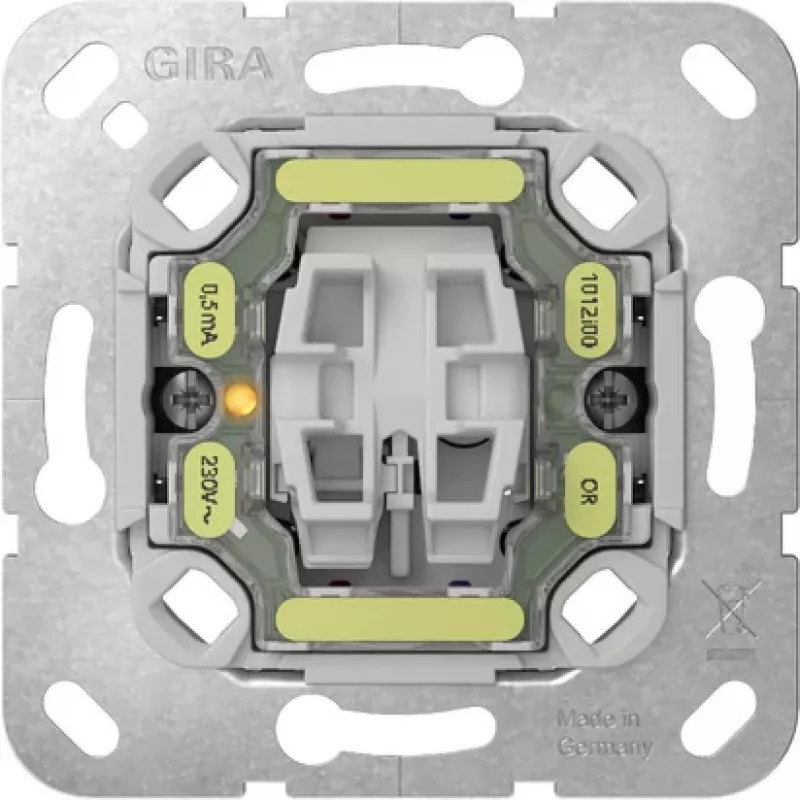

The GIRA 312200 Tast-Kontroll Aus 2-p Einsatz is a 2-pole momentary OFF push-button switch insert for flush-mounted installation. Unlike standard 1-pole inserts, it interrupts both poles, making it suitable for circuits where complete disconnection is required. It features an integrated N-clamp and a connection for a control lamp (lamp not included).

Highlights

• 2-pole momentary OFF switching function
• Integrated N-clamp for neutral conductor
• Connection for control lamp (lamp not included)
• Flush-mounted installation
• Compatible with Gira System 55, E2, Event, Esprit, Standard 55, F100

In daily use

The insert is designed for use with Gira switch ranges and requires a suitable rocker or cover plate from the compatible systems. It is rated for 250 V AC and 10 AX, with screw terminals accepting up to 2.5 mm² rigid conductors. The thermoplastic, halogen-free housing ensures durability.

Full specifications

• Product type: Push-button switch insert
• Switching function: Momentary OFF (Tast-Kontroll-Aus)
• Number of poles: 2
• Rated voltage: 250 V AC
• Rated current: 10 AX
• Connection type: Screw terminals
• Mounting type: Flush-mounted (Unterputz)
• Compatibility: Gira System 55, E2, Event, Esprit, Standard 55, F100
• Special features: Integrated N-clamp, connection for control lamp
• Material: Thermoplastic, halogen-free
• Terminal capacity: Max. 2.5 mm² rigid conductors
• Operating principle: Momentary action (non-latching)

Final note

The GIRA 312200 is a versatile insert for applications requiring two-pole switching with momentary OFF action, compatible with a wide range of Gira cover plates.
