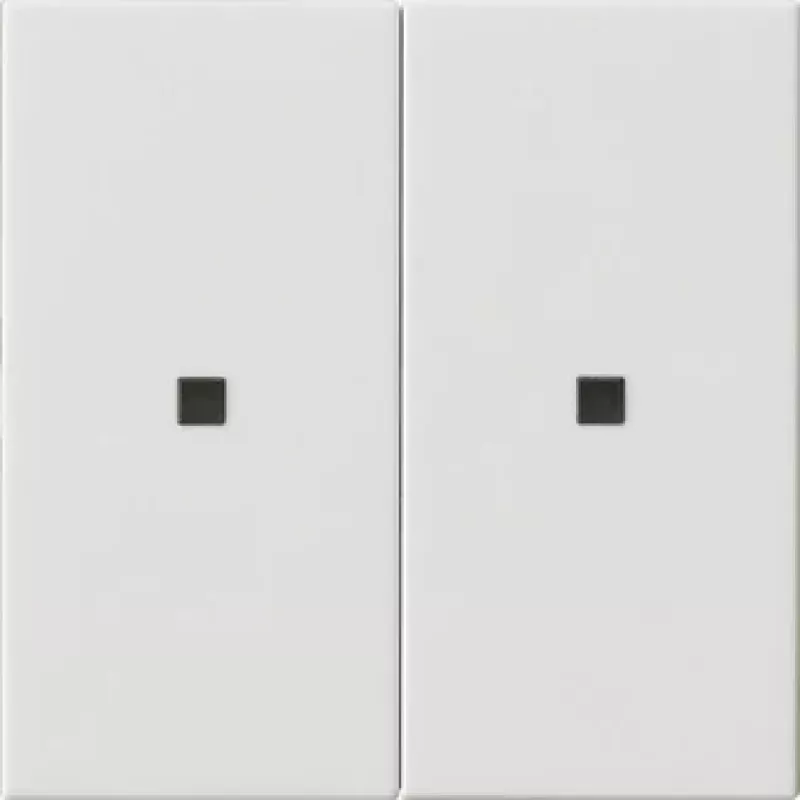

GIRA 510703 KNX RF Interfaccia di comando 2 posti System 55 bianco puro

The GIRA 510703 is a KNX RF operating top unit for wireless control of lighting, blinds, and scenes in a 2-gang configuration. It pairs with a Gira KNX RF flush-mounted insert to enable switching, dimming, blind control, and value transmission via KNX RF S-Mode at 868.3 MHz.

Advantages

Battery-operated design with CR 2032 cell provides approximately 2 years of service. The unit includes an LED indicator for transmission and battery status, and a programming button for teach-in mode. Its pure white finish matches the Gira System 55 design line.

Suitable for

• KNX RF installations using Gira System 55 frames
• Wireless control of lighting and blinds
• Scene recall and value transmission

Key specifications

• Product type: KNX RF operating top unit
• System compatibility: KNX RF
• Number of channels: 2-gang
• Design line: Gira System 55
• Colour: Pure white
• Mounting type: For flush-mounted inserts
• Power supply: Battery-operated (1x CR 2032)
• Battery life: Approx. 2 years
• Radio frequency: 868.3 MHz (KNX RF S-Mode)
• Transmission power: < 10 mW
• Functions: Switching, dimming, blind control, value transmitter, scene recall
• LED indicator: Yes
• Programming button: Yes
• Material: Thermoplastic (PC), UV-resistant
• Operating temperature: -5 °C to +45 °C
• Relative humidity: 0% to 65% (no condensation)

Recommendations

Use with a Gira KNX RF flush-mounted insert and a Gira System 55 frame for a complete installation.
